Includes the tweeter module component of the ULTIMATE IC3-SA-WOOFER/TWEETER-W-T-KIT, made available for purchase to install after ceiling construction is completed. Woofer, back box, spacers, and grille components sold separately as ULTIMATE IC3-AW-SA-BOX-WOOFER-W-T-EACH and are required for a complete ULTIMATE IC3-AW installation.
Overview

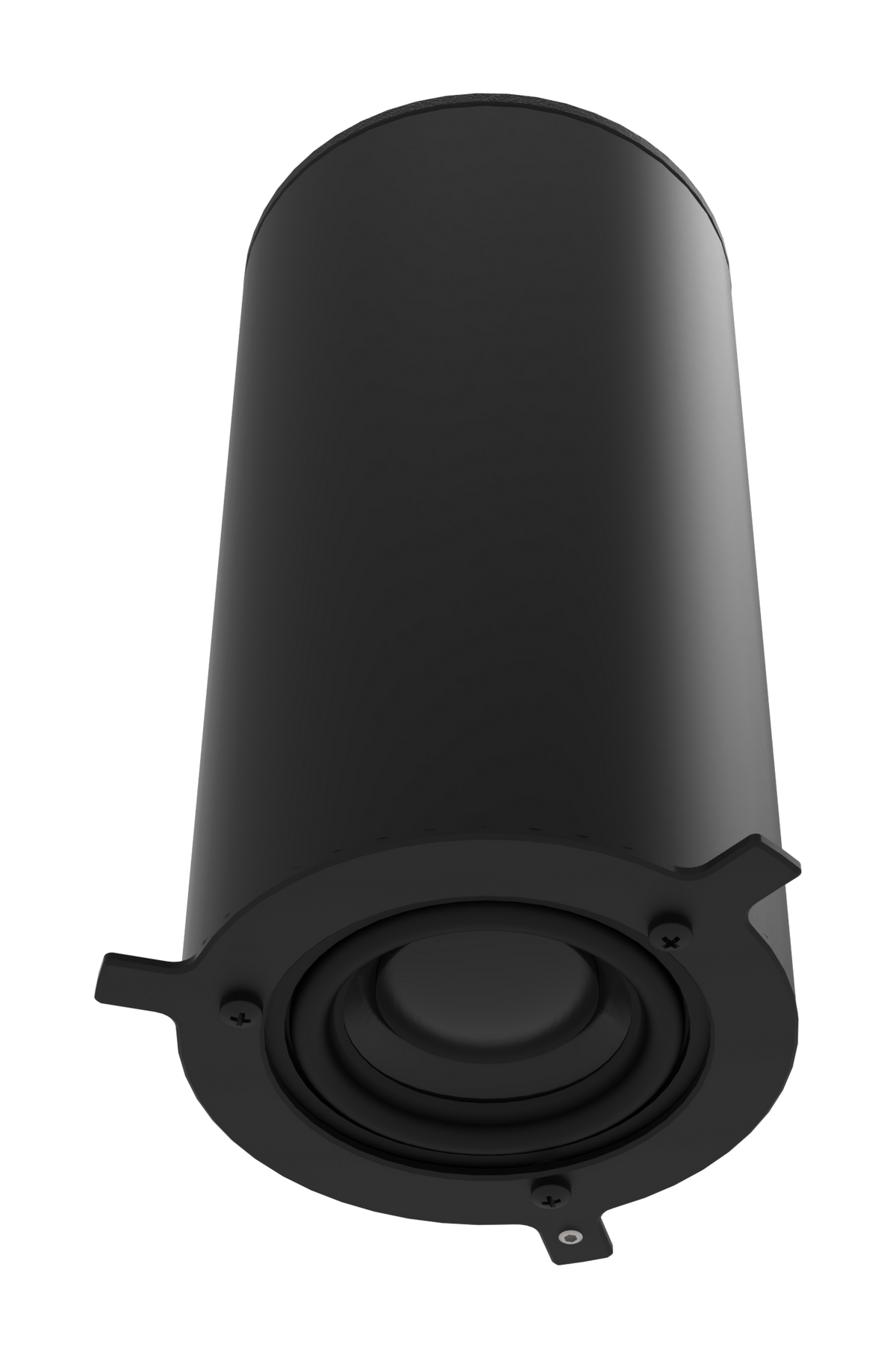

The Crestron Ultimate in-ceiling tweeter made by Origin Acoustics delivers the pinnacle of performance for demanding residential installations.
The ULTIMATE IC3-AW-SA-TWEETER-EACH resembles 3.5 in. (89 mm) designer lighting, blending seamlessly into the ceiling alongside a LFX‑DL‑TUNC for a sophisticated, uniform appearance. Weatherized construction allows for use in a shower, sauna, locker room, yacht, and marine applications.
The ULTIMATE IC3-AW-SA-TWEETER-EACH is part of the ULTIMATE IC3-SA-WOOFER/TWEETER-W-T-KIT that includes ULTIMATE-IC3-AW-SA-BOX-WOOFER-W-T-EACH as well.
In the pre-construction phase, just the ULTIMATE‑IC3‑AW‑SA‑BOX‑WOOFER‑W‑T‑EACH can be installed, and once construction is finished, the ULTIMATE IC3‑AW‑SA‑TWEETER‑EACH can be installed to complete the speaker setup.
Features
Key Features
- 2 in. (51 mm) wideband ceramic coated aluminum tweeter
- IP66 rated for particle and water protection (when fully installed into the ULTIMATE IC3-AW-BOX-WOOFER-W-T-EACH)
- 75 W (RMS), 200 W (Peak) power handling
- 200 Hz to 20 kHz (±3 dB) frequency response
- 8 Ohms nominal impedance
Specifications
| ULTIMATE IC3-AW-SA-TWEETER-EACH | |
| Tweeter | 2 in. (51 mm) wide band ceramic coated aluminum cone Neodymium transducer |
| Crossover Point | 200 Hz |
| Impedance | 8 Ohms nominal |
| Frequency Response | 200 Hz to 20 kHz (±3 dB) |
| Maximum SPL | Program: 102 dB; Peak: 107 dB |
| Coverage | 100° conical |
| Sensitivity | 82 dB @ 1 W/1 M |
| Input | 2-pin pluggable screw terminals |
| Max Wire Size | 12 AWG (4 mm2) |
| Enclosure Material | Cast Aluminum |
| Splash Resistance | IP66 rated for water |
| Height | 5.57 in. (141 mm) |
| Diameter | 2.85 in. (72 mm) |
| Weight | 0.55 lb (0.24 kg) |
