The ULTIMATE IC3-SA-WOOFER/TWEETER-W-T-KIT is a kit including all necessary components for a complete installation of the ULTIMATE IC3-AW 2-way, new construction, all weather in-ceiling speaker. The tweeter module aperture is designed to match the look of designer lighting offerings to create a uniform ceiling appearance.
Overview
The Crestron Ultimate in-ceiling speaker made by Origin Acoustics delivers the pinnacle of performance for demanding residential installations.
The ULTIMATE IC3‑SA‑WOOFER/TWEETER‑W‑T‑KIT is an in-ceiling speaker that resembles 3.5 in. (89 mm) designer lighting, blending seamlessly into the ceiling alongside a LFX‑DL‑TUNC for a sophisticated, uniform appearance. Weatherized construction allows for use in a shower, sauna, locker room, yacht, and marine applications.

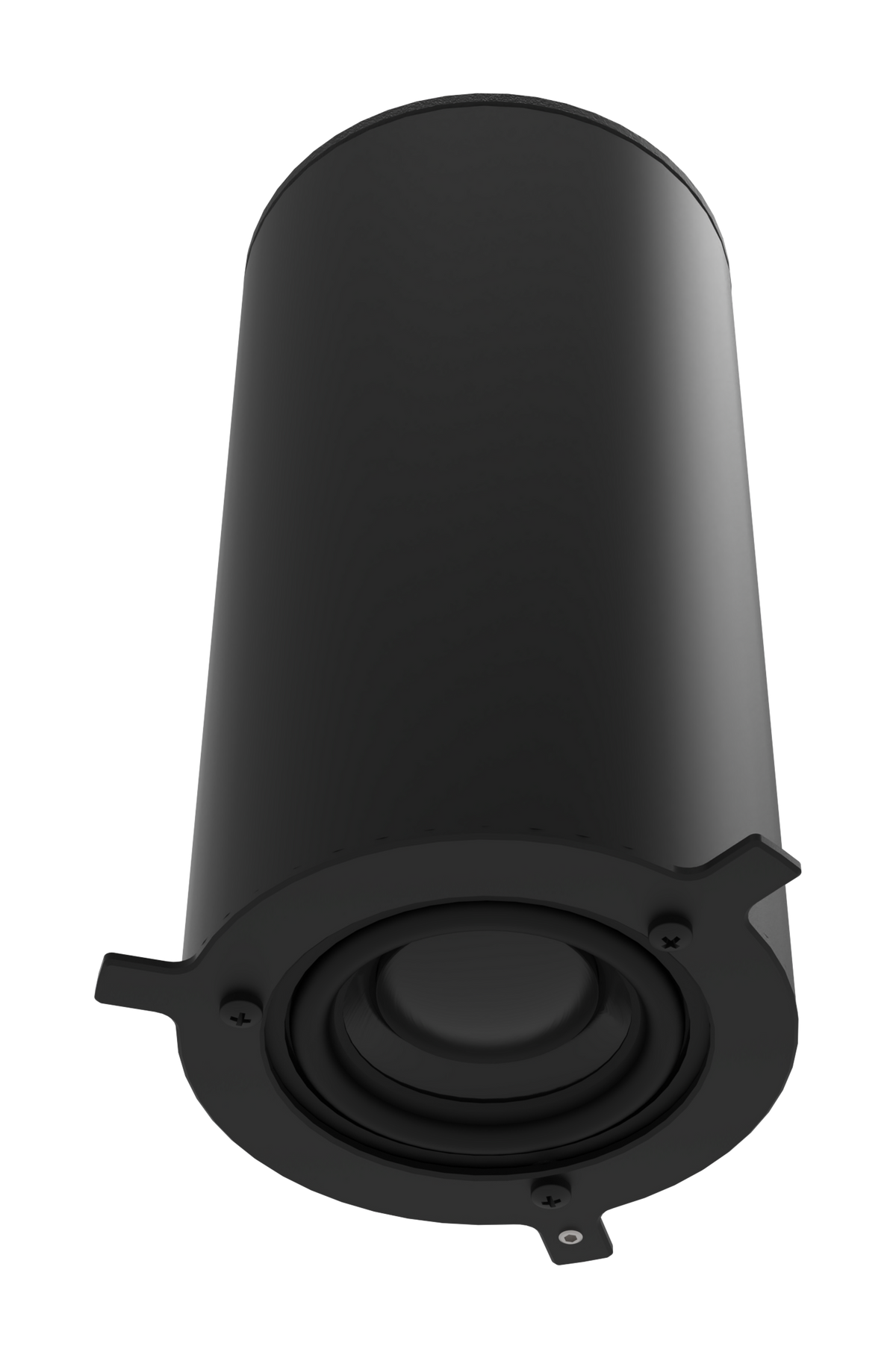

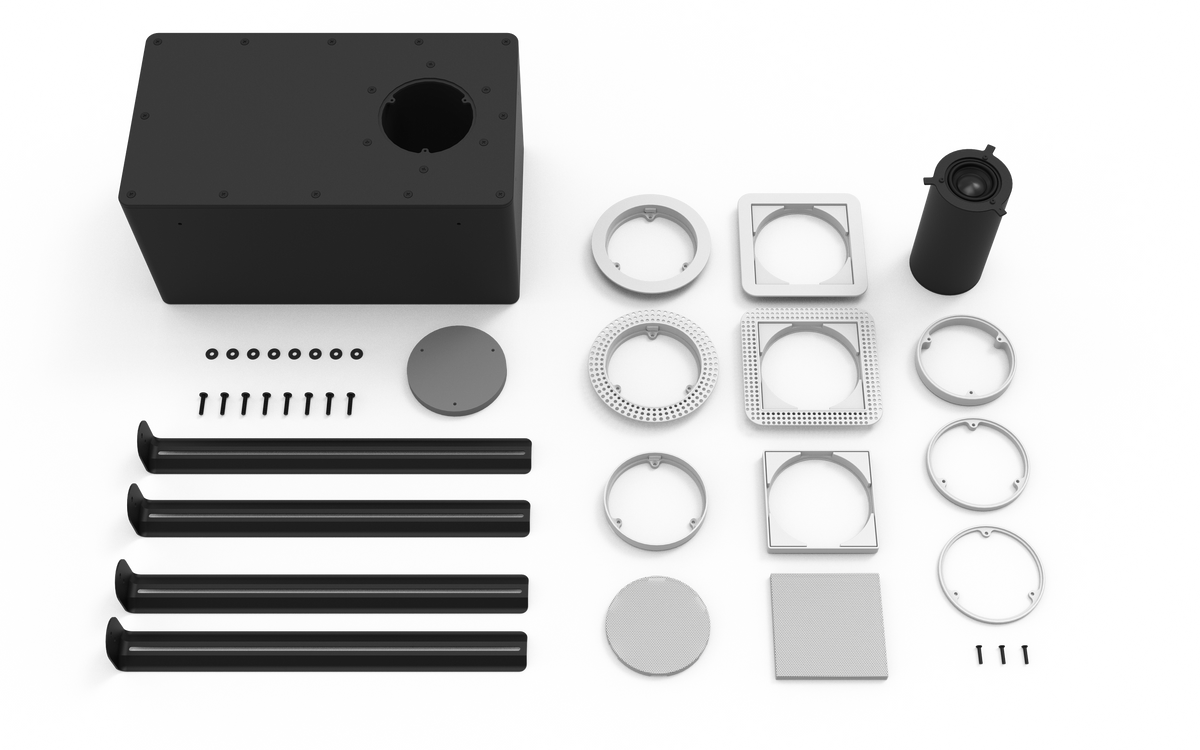

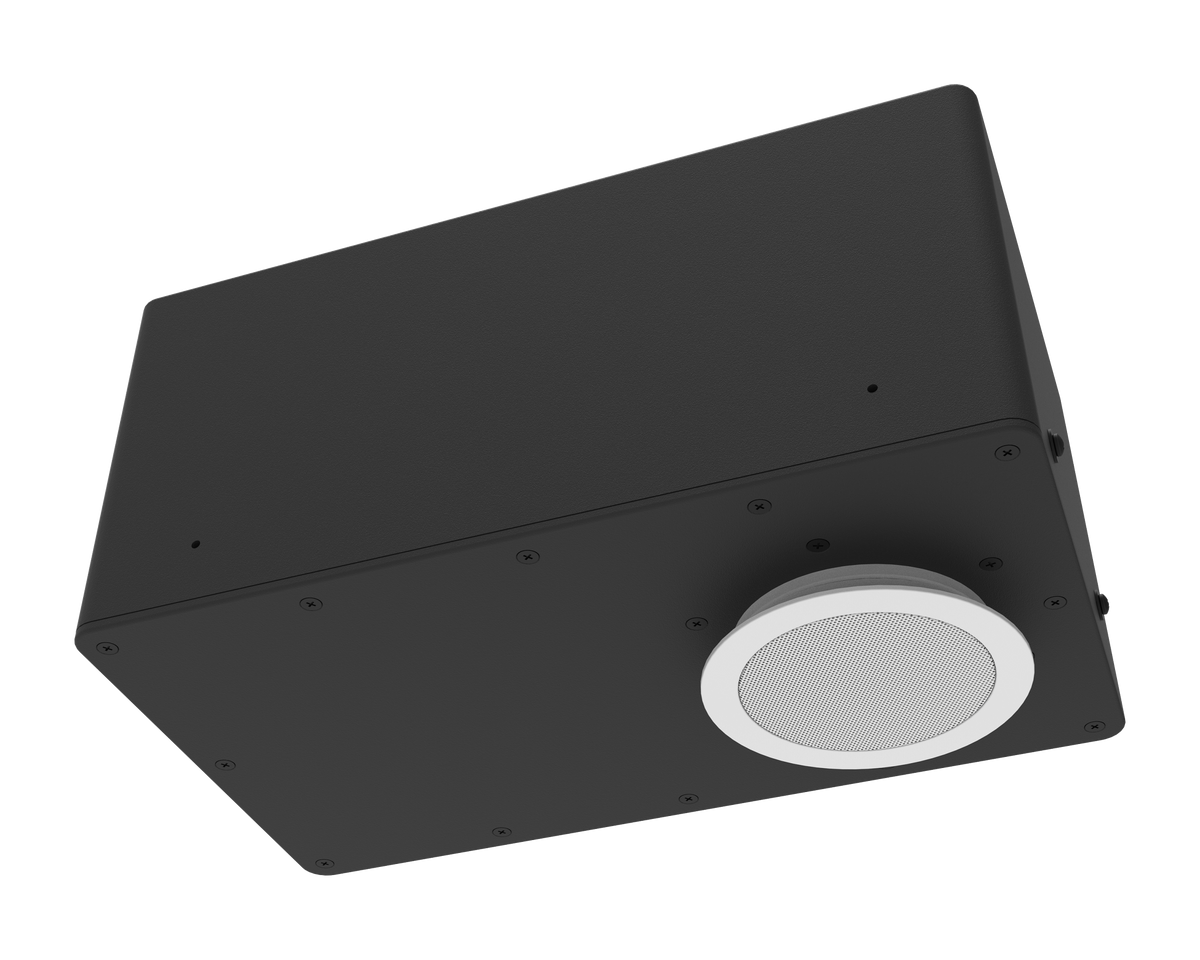

The ULTIMATE IC3‑SA‑WOOFER/TWEETER‑W‑T‑KIT includes the ULTIMATE‑IC3‑AW‑SA‑BOX‑WOOFER‑W‑T‑EACH and ULTIMATE IC3‑AW‑SA‑TWEETER‑EACH, mounting hardware, trim-ring kit, grilles and installation hardware.
In the pre-construction phase, just the ULTIMATE‑IC3‑AW‑SA‑BOX‑WOOFER‑W‑T‑EACH can be installed, and once construction is finished, the ULTIMATE IC3‑AW‑SA‑TWEETER‑EACH can be installed to complete the speaker setup.

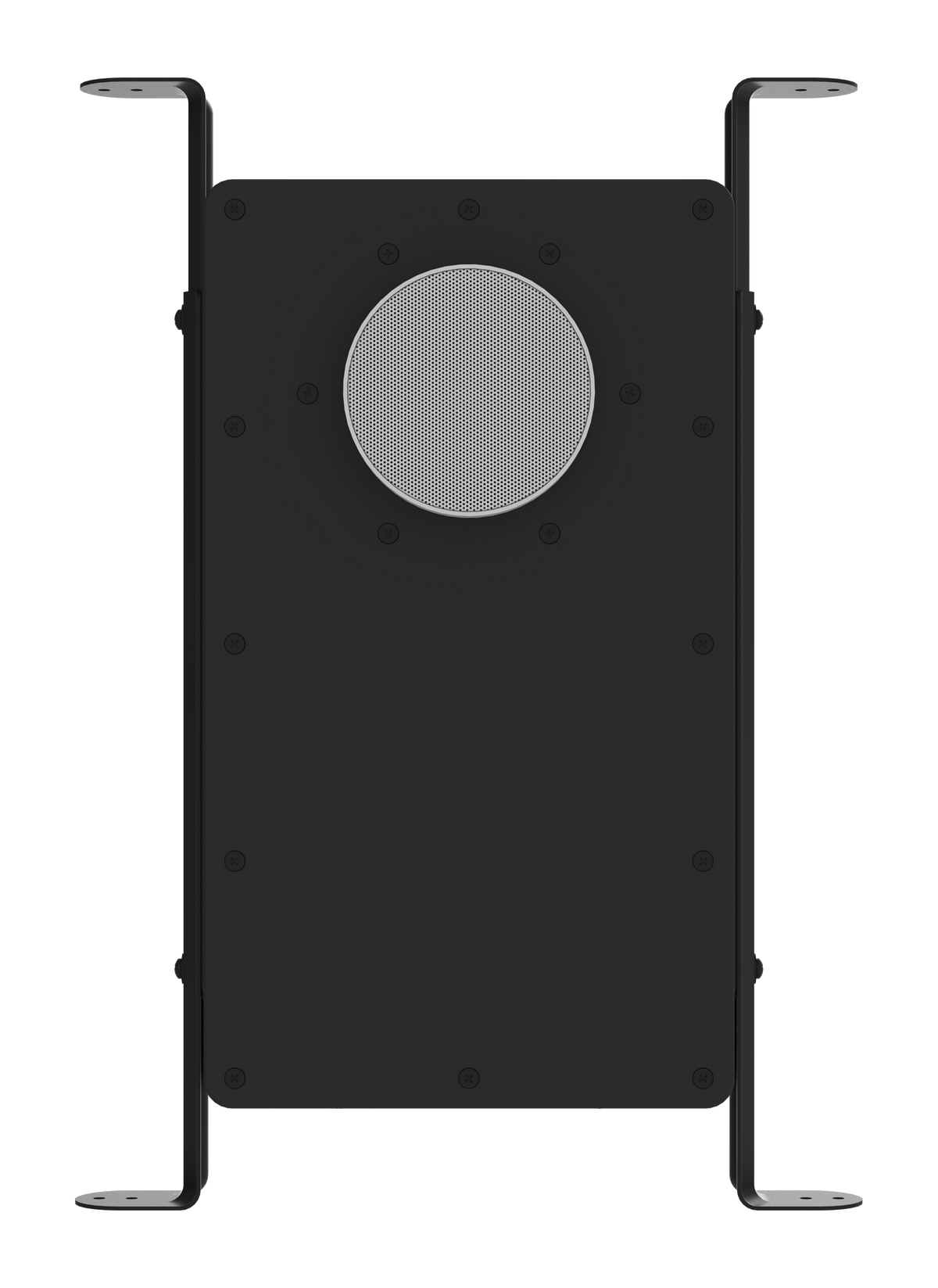

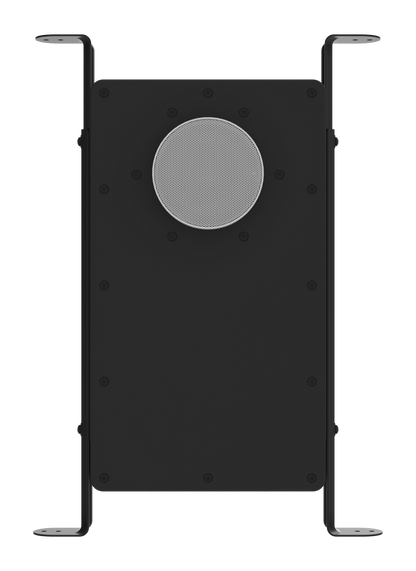

The installation process is simplified with built-in rails that secure the woofer enclosure directly to the ceiling joists, ensuring a level and secure fit. The tweeter is locked into place with a twist and hex screw.

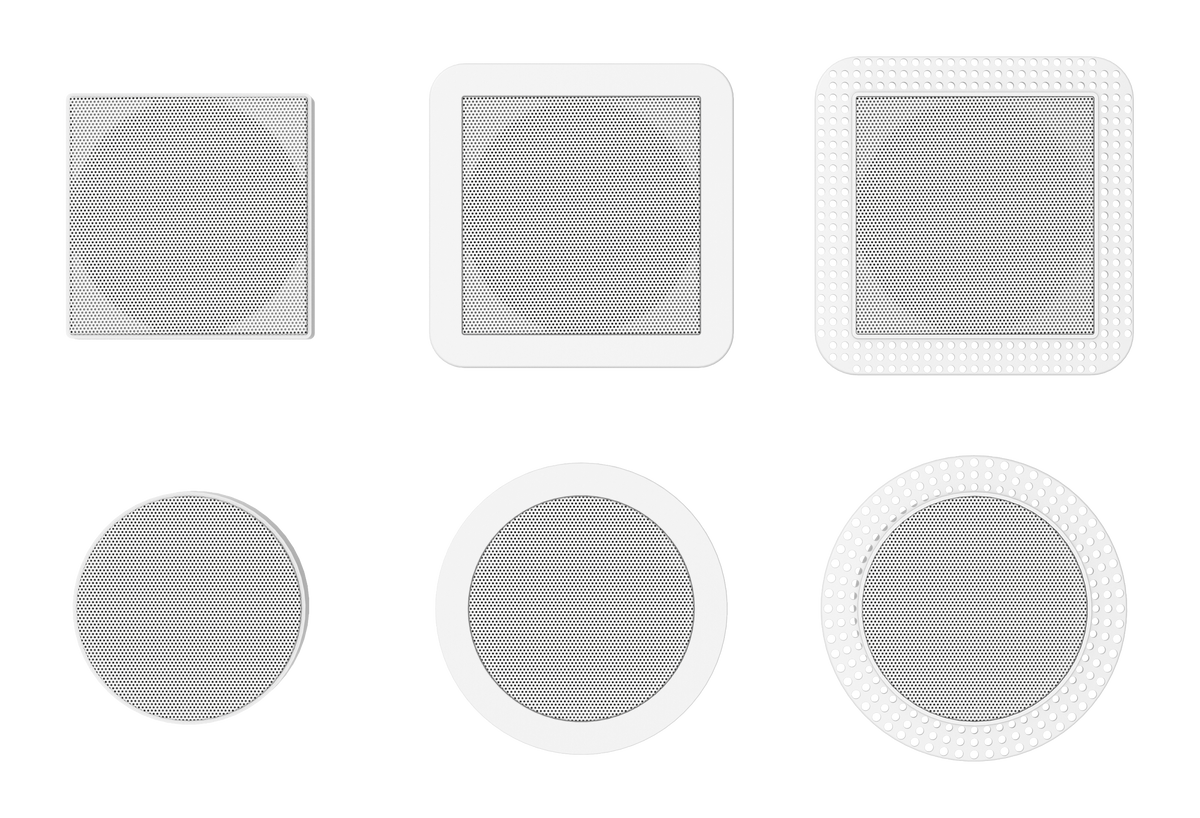

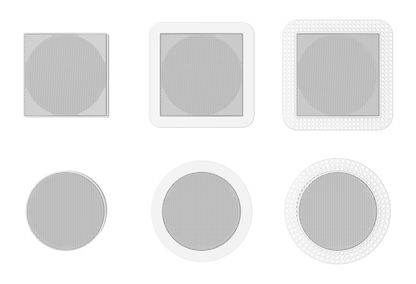

The included trim-ring kit features six different designs, including the latest invisible flush-mount options, and both round and square grilles, enabling the selection of the ideal trim to match any interior. Three spacer rings are also included to allow for ceiling material depths of up to 1.38 in. (35 mm).
Features
Key Features
- Audiophile performance 2-way all weather in-ceiling speaker
- 6 in. (152 mm) carbon fiber woofer
- 2 in. (51 mm) wideband ceramic coated aluminum tweeter
- IP66 rated for particle and water protection
- 75 W (RMS), 200 W (Peak) power handling
- 44 Hz to 20 kHz (±3 dB) frequency response
- 8 Ohms nominal impedance
- Various square and round trim rings and grilles
Specifications
| ULTIMATE IC3-SA-WOOFER/TWEETER-W-T-KIT | |
| Woofer | 6 in. (162 mm) carbon fiber |
| Tweeter | 2 in. (51 mm) wide band ceramic coated aluminum cone Neodymium transducer |
| Crossover | Custom 2-way passive |
| Crossover Point | 200 Hz |
| Impedance | 8 Ohms nominal |
| Frequency Response | 44 Hz to 20 kHz (±3 dB) |
| Frequency Range | 35 Hz to 20 kHz (±10 dB) |
| Power Handling | RMS: 75 W; Peak: 200 W |
| Maximum SPL | Program: 102 dB; Peak: 107 dB |
| Coverage | 100° conical |
| Sensitivity | 82 dB @ 1 W/1 M |
| Input | 2-pin pluggable screw terminals |
| Max Wire Size | 12 AWG (4 mm2) |
| Enclosure Material | Cast Aluminum |
| Mounting | Overlapping formed steel straps Adjustable from 14.25 in. (362 mm) to 24 in. (610 mm). |
| Ingress Protection | IP66 rated for particles and water |
| Height | 14 in. (356 mm) |
| Width | 8 in. (203 mm) |
| Weight | 12.05 lb (5.46 kg) |
| ULTIMATE IC3-AW-SA-BOX-WOOFER-W-T-EACH Dimensions and Weight | |
| Height | 14 in. (356 mm) |
| Width | 8 in. (203 mm) |
| Depth | 6.67 in. (169 mm) |
| Weight | 11.5 lb (5.21 kg) |
| ULTIMATE IC3-AW-SA-TWEETER-EACH Dimensions and Weight | |
| Height | 5.57 in. (141 mm) |
| Diameter | 2.85 in. (72 mm) |
| Weight | 0.55 lb (0.24 kg) |
| Square Trim Rings Dimension | |
| Flush | Diameter: 3.94 in. (100 mm) |
| Invisible | External Diameter: 5.12 in. (130 mm) Internal Diameter: 3.94 in. (100 mm) |
| Flanged | External Diameter: 4.88 in. (124 mm) Internal Diameter: 3.94 in. (100 mm) |
| Round Trim Rings Dimension | |
| Flush | Diameter: 3.74 in. (95 mm) |
| Invisible | External Diameter: 4.92 in. (125 mm) Internal Diameter: 3.74 in. (95 mm) |
| Flanged | External Diameter: 4.69 in. (119 mm) Internal Diameter: 3.74 in. (95 mm) |
| Environmental | |
| Temperature | 4° to 176°F (-15.5° to 80°C) |
| Humidity | 10% to 95% RH (non‑condensing) |
| Ingress Protection | IP66 rated for particles and water (when fully installed into the ULTIMATE IC3-AW-BOX-WOOFER-W-T-EACH) |
| Compliance | |
|
Regulatory Model: CE, Intertek® Listed for US & Canada, FCC Part 15 Class B digital device |
|
