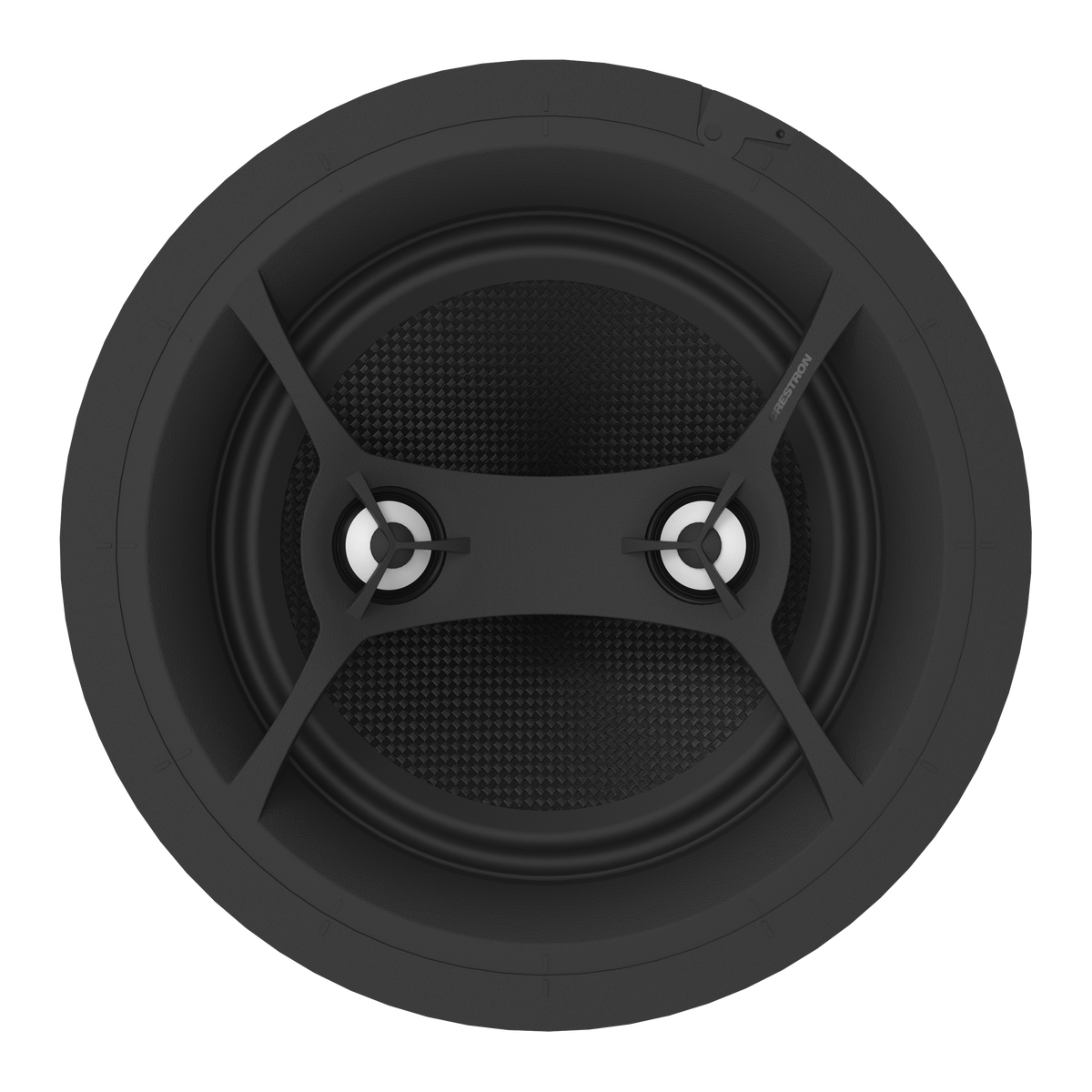

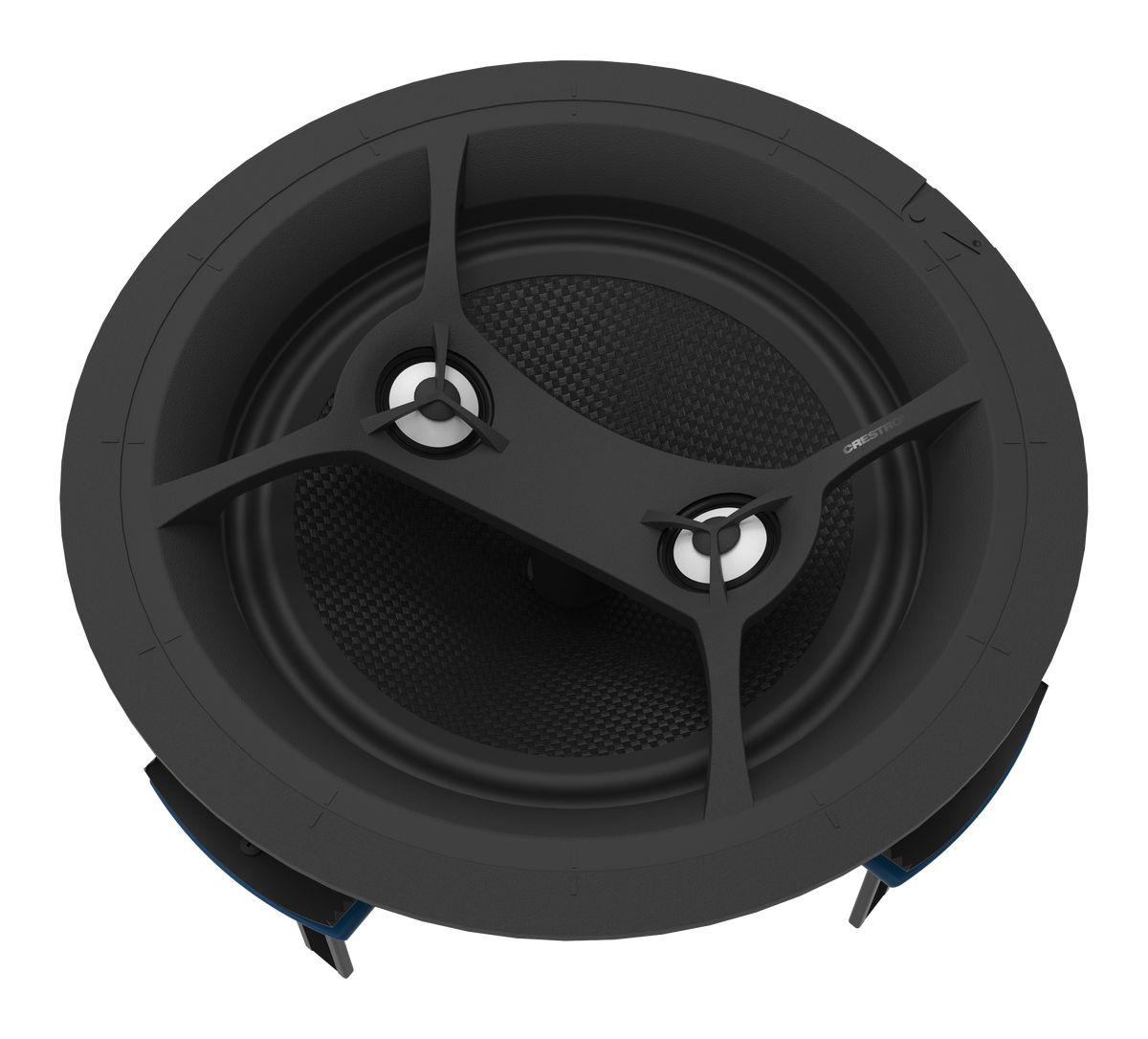

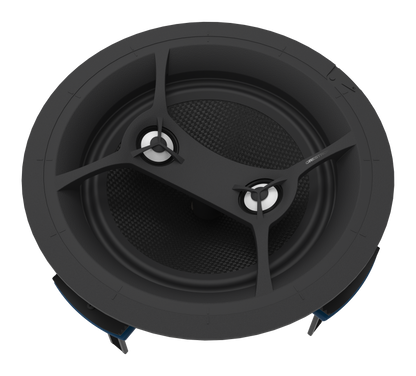

Audiophile performance 2-way in-ceiling all weather dual tweeter speaker to please the most ardent listener and the most demanding interior designer — with thoughtful features that simplify installation.
Overview
Crestron® Ultimate speakers made by Origin Acoustics deliver the pinnacle of performance for demanding residential installations. Select materials, top shelf components and a high-end appearance underscore the design behind each model. The result is a complete line of in-ceiling speakers suitable for installation in multiple locations. Weatherized construction allows for use in deck, patio, locker room, sauna, yacht, and swimming pool areas.
The ULTIMATE IC8‑DT-AW-W‑T‑EACH speaker incorporates dual tweeters into a single speaker enclosure, making it the perfect choice for delivering single-point stereo sound into smaller rooms.
The ULTIMATE IC8‑DT-AW-W‑T‑EACH promises the best in installed audio design, delivering stunning sound quality while minimizing impact to the customer's decor. The in-ceiling speaker is provided with a round grille with white plastic bezel. Square and/or aluminum-colored grille options are sold separately. In addition, the following accessories are available:
- Flush Mount Kit (SPKA-FMKT-IC6/IC8)
- Preconstruction Mounting Kit (SPKA-PMK-IC6/IC8)
- New-Construction Templates (SPKA-NCTP-IC6/IC8)
- Fire Rated Back Box (SPKA-BBFR8-IC6/IC8)
Streamlined installation of each speaker is facilitated through an easy to use twist and lock toolless bayonet mounting system optimized to minimize interference with other elements present in the ceiling space.
NOTE: The Ultimate and Reference IC6 and IC8 speakers are interchangeable as they share the same cutout diameter dimension.
The ULTIMATE IC8‑DT-AW-W‑T‑EACH stereo 2-way all weather in-ceiling dual tweeter speaker features an
8 in. (203 mm) carbon fiber woofer for deep, defined low end and articulate midrange, and dual 1 in. (25 mm) ceramic coated aluminum dome tweeters for crisp highs with consistent coverage across a wide listening area. A compression molded woofer basket assures pure, uncolored bass response.
Features
Key Features
- Audiophile performance 2-way single-point stereo in-ceiling speaker
- 8 in. (203 mm) carbon fiber cone woofer
- Dual 1 in. (25 mm) ceramic coated aluminum dome tweeters
- IP66 rated for particle and water protection
- Twist and lock toolless bayonet mounting system
- 150 W (Program), and 300 W (Peak) power handling
- 38 Hz to 20 kHz (±3 dB) frequency response
- 8 Ohms nominal impedance
- Various grille options
- Installation friendly low profile with 4.29 in. (109 mm) depth
- An ideal solution for delivering stereo sound into smaller rooms
Specifications
| Features & Performance | |
| Woofer | 8 in. (203 mm) carbon fiber cone woofer |
| Tweeter | Dual 1 in. (25 mm) ceramic coated aluminum dome tweeters |
| Crossover Slope | 30 dB/oct |
| Crossover Point | 3.5 kHz |
| Impedance | 8 Ohms nominal |
| Frequency Response | 38 Hz to 20 kHz (±3 dB) |
| Frequency Range | 35 Hz to 30 kHz (±10 dB) |
| Power Handling | Program: 150 W; Peak: 300 W |
| Sensitivity | 86 dB @ 1 W/1 M |
| Connections | |
| Input | (2) 2-pin pluggable screw terminals |
| Maximum Wire Size | 12 AWG (3.31 mm2) |
| Environmental | |
| Temperature | 4° to 176°F (-15.5° to 80°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Ingress Protection | IP66 rated for particles and water |
| Construction | |
| Baffle | Glass fiber reinforced ABS |
| Grille | Electroplated and powder coated steel, paintable, magnetically held bezel design |
| Mounting | Tool-less bayonet mounting system |
| Dimensions | |
| Diameter without grille | 9.61 in. (244 mm) |
| Depth | 4.29 in. (109 mm) without bayonet ring; Up to 5.26 in. (134 mm) with bayonet ring |
| Round Grille | 10.20 in. (259 mm) |
| Cutout Diameter | 8.66 in. (220 mm) |
| Weight | |
| 5.29 lb (2.39 kg) | |
| Compliance | |
|
Regulatory Model: CE, RoHs, FCC Part 15 Class B digital device |
|
