• Crestron ULTIMATE IGS12T-BRZ-T-EACH - Ultimate 12 in. In-Ground Subwoofer, Bronze Textured, Single
  • Crestron ULTIMATE IGS12T-BRZ-T-EACH - Ultimate 12 in. In-Ground Subwoofer, Bronze Textured, Single
  • Crestron ULTIMATE IGS12T-BRZ-T-EACH - Ultimate 12 in. In-Ground Subwoofer, Bronze Textured, Single
1 3

Crestron

CTN ULTIMATE IGS12T-BRZ-T-EACH Ultimate 12 in. In-Ground Subwoofer, Bronze Textured, Single

CTN ULTIMATE IGS12T-BRZ-T-EACH Ultimate 12 in. In-Ground Subwoofer, Bronze Textured, Single

MFR: Crestron MPN : ULTIMATE IGS12T-BRZ-T-EACH
SKU: ULTIMATE IGS12T-BRZ-T-EACH
$1,518.75 USD
$1,518.75 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

In-ground burial subwoofer with a dome-shaped port cap that delivers high-performance extended bass response to an outdoor audio system.

Overview

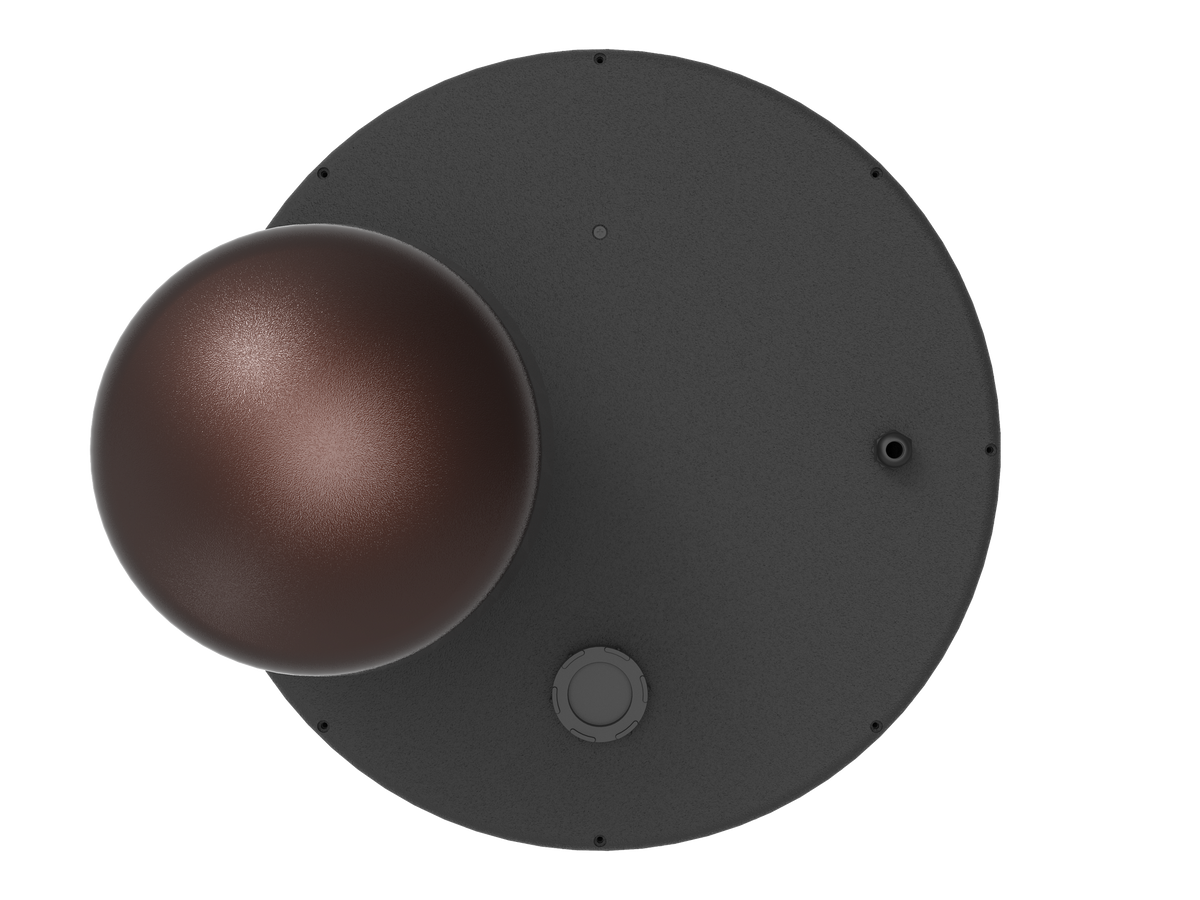

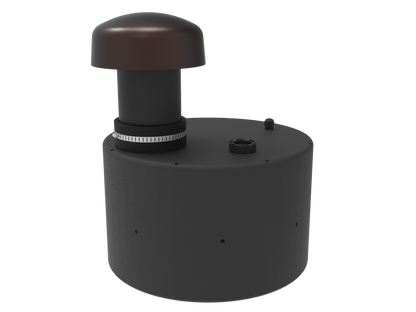

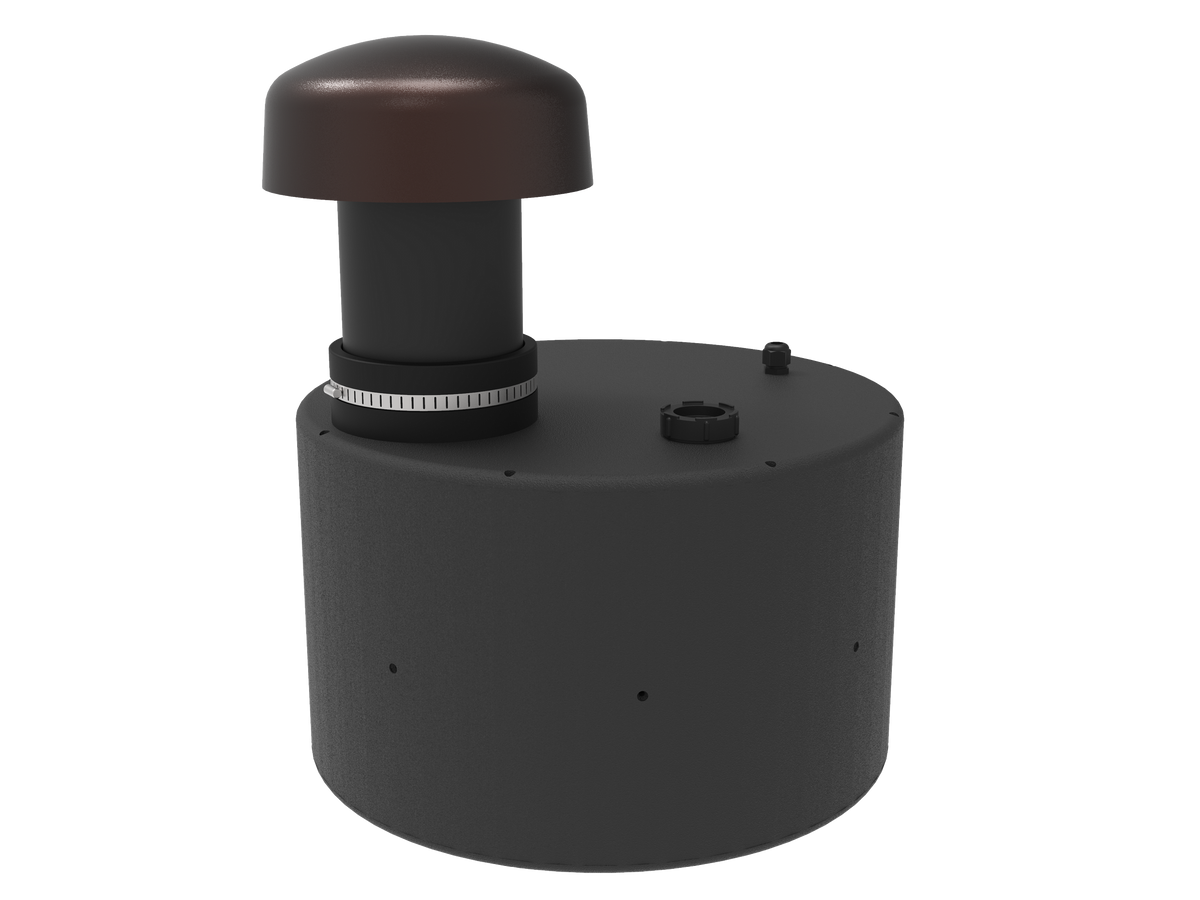

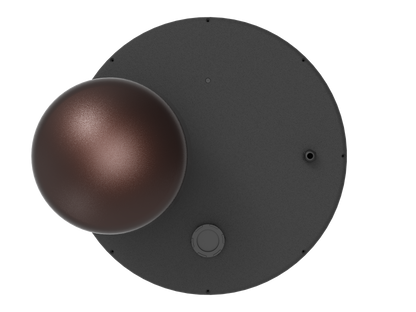

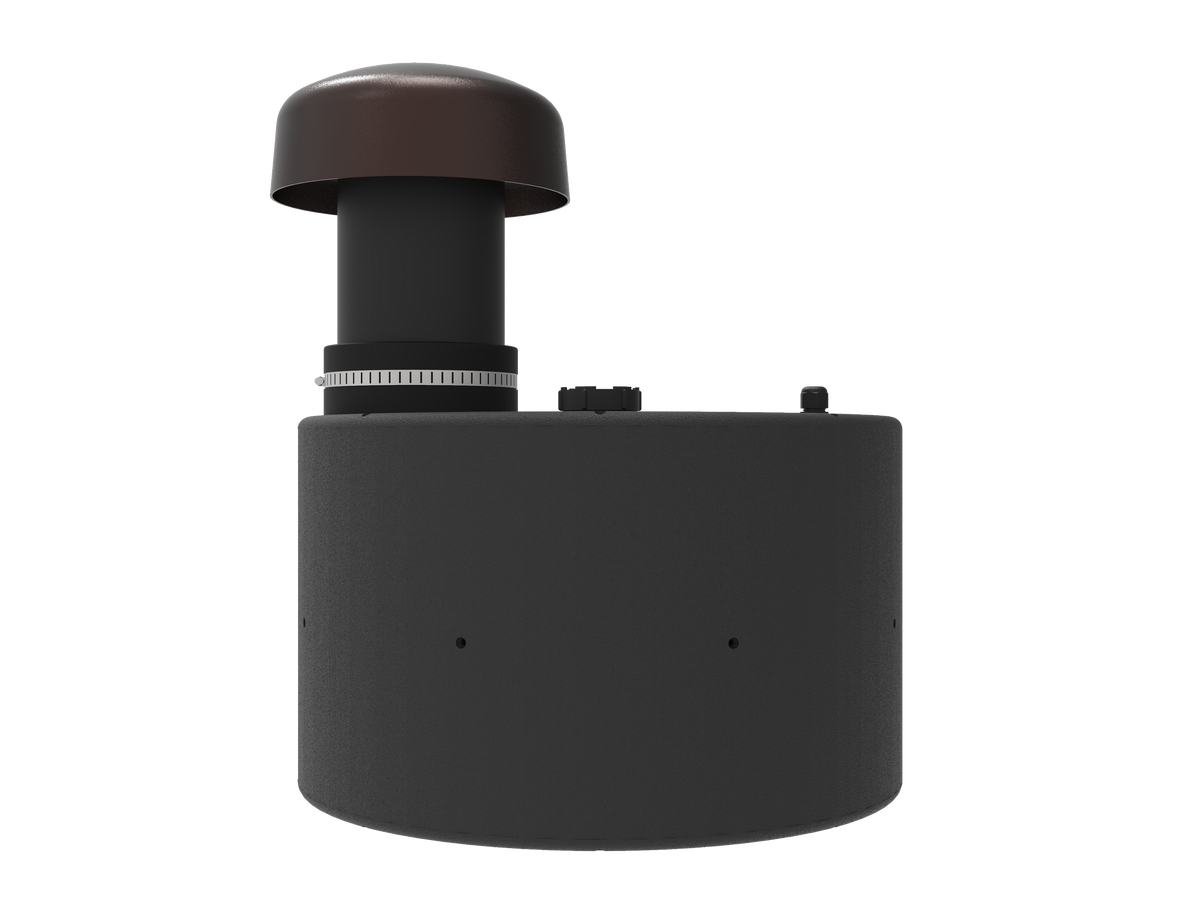

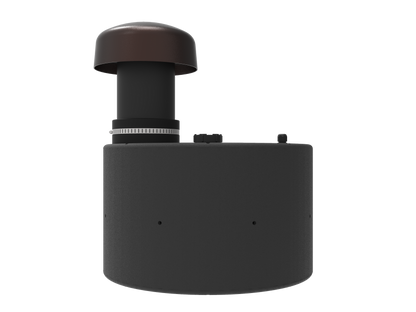

The Crestron® ULTIMATE IGS12T-BRZ-T-EACH in-ground subwoofer made by Origin Acoustics provides the full impact of your music outdoors with rich and deep bass. Its compact, watertight enclosure installs beneath the ground’s surface, affording a virtually hidden appearance with just the port tube visible. The port tube protrudes 7.20 inches from the ground and is topped with an attractive dark bronze-colored dome-shaped cap, providing a subdued appearance.

The ULTIMATE IGS12T-BRZ-T-EACH is a passive in‑ground subwoofer, employing 12 in. woofer for tight, controlled bass. Power handling is 200 Watts (Program), and 400 W (Peak) at 8 Ohms, with a frequency response of 23 Hz to 100 Hz (±3 dB).

The ULTIMATE IGS12T-BRZ-T-EACH includes a 44 in. (1118 mm) direct-burial speaker wire that is permanently attached to the speaker enclosure. A suitable in‑ground electrical box (not included) is advised for termination of the speaker and transformer wiring. A pair of waterproof wire nuts are included to terminate the bare wire ends.

CrestronHome (2)

Features

Key Features
  • High-performance direct-burial in-ground subwoofer
  • Rugged poly composite PVC enclosure
  • IPX6 waterproof
  • 12 in. (305 mm) polypropylene woofer
  • 200 W (Program), and 400 W (Peak) power handling
  • 23 Hz to 100 Hz (±3 dB) frequency response
  • 8 Ohms nominal impedance
  • Bronze textured, dome-shaped paintable port cap
  • Built-in 300 W toroidal transformer for high impedance connectivity

Specifications

Features & Performance
Woofer 12 in. (305 mm) polypropylene
Crossover Point 150 Hz
Impedance 8 Ohms nominal
Transformer Taps 150 W @ 70V;
300 W @ 100V
Frequency Response 23 Hz to 100 Hz (±3 dB)
Power Handling Program: 200 W;
Peak: 400 W
Sensitivity 86 dB @ 1 W/1 M
Connections
Input (1) 44 in. (1118 mm) attached direct-burial speaker wire;
Includes one pair of silicone filled waterproof wire nuts
Maximum Wire Size (2) 12 AWG (4 mm2)
Environmental
Temperature 4° to 176°F (-15.5° to 80°C)
Humidity 10% to 90% RH (non-condensing)
Splash Resistance IPX6 waterproof
Construction
Enclosure Rugged poly composite PVC
In-Ground Installation Designed for direct-burial in soil with good drainage
Dimensions
Height with port tube and cap 23.57 in. (599 mm)
Height without port tube and cap 12.05 in. (306 mm)
Width 19.69 in. (500 mm)
Weight
78.15 lb (35.44 kg)
Compliance
CE, RoHs, FCC Part 15 Class B digital device
Regulatory Model M202046012
