• Crestron ULTIMATE IWLCR62-W-T-EACH - Ultimate Dual 6.5 in. 2-Way In-Wall LCR Speaker, White Textured, Single
  • Crestron ULTIMATE IWLCR62-W-T-EACH - Ultimate Dual 6.5 in. 2-Way In-Wall LCR Speaker, White Textured, Single
  • Crestron ULTIMATE IWLCR62-W-T-EACH - Ultimate Dual 6.5 in. 2-Way In-Wall LCR Speaker, White Textured, Single
  • Crestron ULTIMATE IWLCR62-W-T-EACH - Ultimate Dual 6.5 in. 2-Way In-Wall LCR Speaker, White Textured, Single
1 4

Crestron

CTN ULTIMATE IWLCR62-W-T-EACH Ultimate Dual 6.5 in. 2-Way In-Wall LCR Speaker, White Textured, Single

CTN ULTIMATE IWLCR62-W-T-EACH Ultimate Dual 6.5 in. 2-Way In-Wall LCR Speaker, White Textured, Single

MFR: Crestron MPN : ULTIMATE IWLCR62-W-T-EACH
SKU: ULTIMATE IWLCR62-W-T-EACH
$456.25 USD
$456.25 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Audiophile performance 2-way in-wall LCR speaker to please the most ardent listener and the most demanding interior designer — with thoughtful features that simplify installation.

Overview

Crestron® Ultimate speakers made by Origin Acoustics deliver the pinnacle of performance for demanding residential installations. Select materials, top shelf components and a high-end appearance underscore the design behind each model. The result is a complete line of in-wall speakers suitable for installation in luxury residential applications, restaurants, retail spaces, universities, and office buildings.

The ULTIMATE IWLCR62-W-T-EACH promises the best in installed audio design, delivering stunning sound quality while minimizing impact to the customer's decor. The in-wall speaker is provided with a rectangular grille with white plastic bezel. In addition, the following accessories are available:

Streamlined installation of each speaker is facilitated through an easy to use turn and click Spring Lock mounting system optimized to minimize interference with other elements present in the wall space.

The ULTIMATE IWLCR62-W-T-EACH in‑wall LCR speaker features dual 6.5 in. (165 mm) carbon fiber woofers for deep, defined low end and articulate midrange, and a 1 in. (25 mm) ceramic coated aluminum tweeter for crisp highs with consistent coverage across a wide listening area. The speaker can be installed both horizontally and vertically depending upon the requirement.

CrestronHome (2)

Features

Key Features
  • Audiophile performance 2-way in-wall LCR speaker
  • Designed to support the most demanding home theater applications
  • Supports both horizontal and vertical orientation with tweeter positioned at the center
  • Dual 6.5 in. (165 mm) carbon fiber woofers
  • 1 in. (25 mm) ceramic coated aluminum tweeter
  • Turn and click Spring Lock™ mounting system
  • 150 W (Program), and 300 W (Peak) power handling
  • 39 Hz to 30 kHz (±3 dB) frequency response
  • 8 Ohms nominal impedance

Specifications

Features & Performance
Woofer Dual 6.5 in. (165 mm) carbon fiber woofers
Tweeter 1 in. (25 mm) ceramic coated aluminum
Crossover Slope 30 dB/oct
Crossover Point 3.5 kHz
Impedance 8 Ohms nominal
Frequency Response 39 Hz to 30 kHz (±3 dB)
Frequency Range 35 Hz to 30 kHz (±10 dB)
Power Handling Program: 150 W;
Peak: 300 W
Sensitivity 86 dB @ 1 W/1 M
Connections
Input (2) Gold-plated spring terminals
Maximum Wire Size 10 AWG (6 mm2)
Environmental
Temperature 4° to 176°F (-15.5° to 80°C)
Humidity 10% to 90% RH (non-condensing)
For indoor use only
Construction
Baffle Glass fiber reinforced ABS
Grille Electroplated and powder coated steel, paintable, magnetically held bezel design
Mounting Spring Lock mounting system
Dimensions
Height without grille 15.19 in. (386 mm)
Width without grille 7.48 in. (190 mm)
Depth 3.74 in. (95 mm)

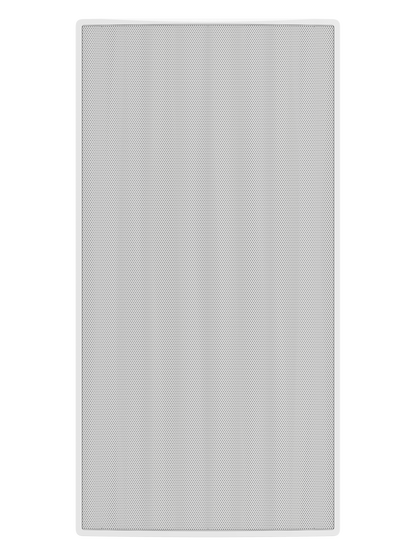

Rectangle Grille
Length 15.82 in. (402 mm)
Width 8.11 in. (206 mm)
Recommended Cutout Dimension
Height 14.33 in. (364 mm)
Width 6.61 in. (168 mm)
Weight
8.26 lb (3.74 kg)
Compliance
CE, RoHs, FCC Part 15 Class B digital device
Regulatory Model M202046007
