Crestron® outdoor weatherproof speaker delivers high-performance audio to all corners of the property.
Overview

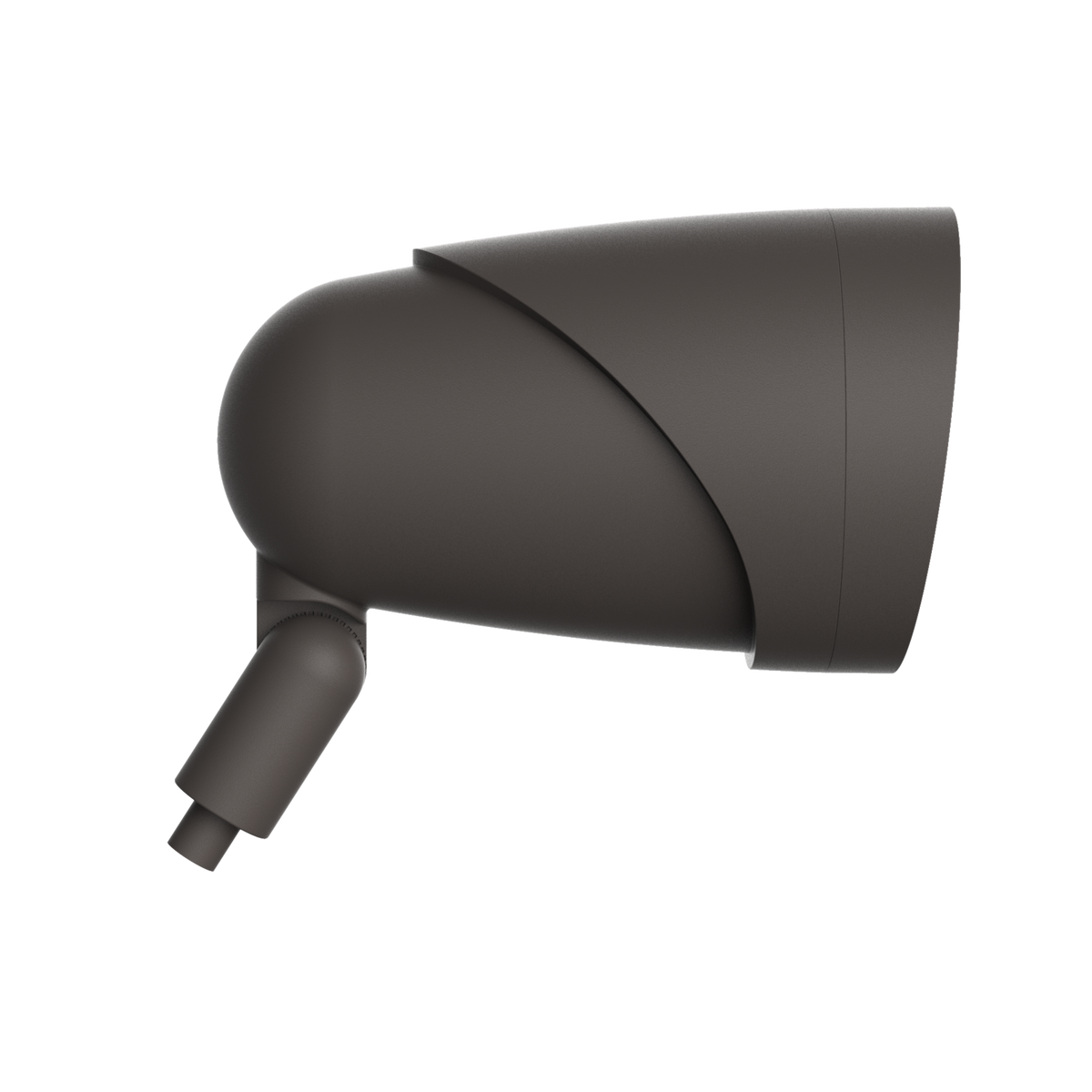

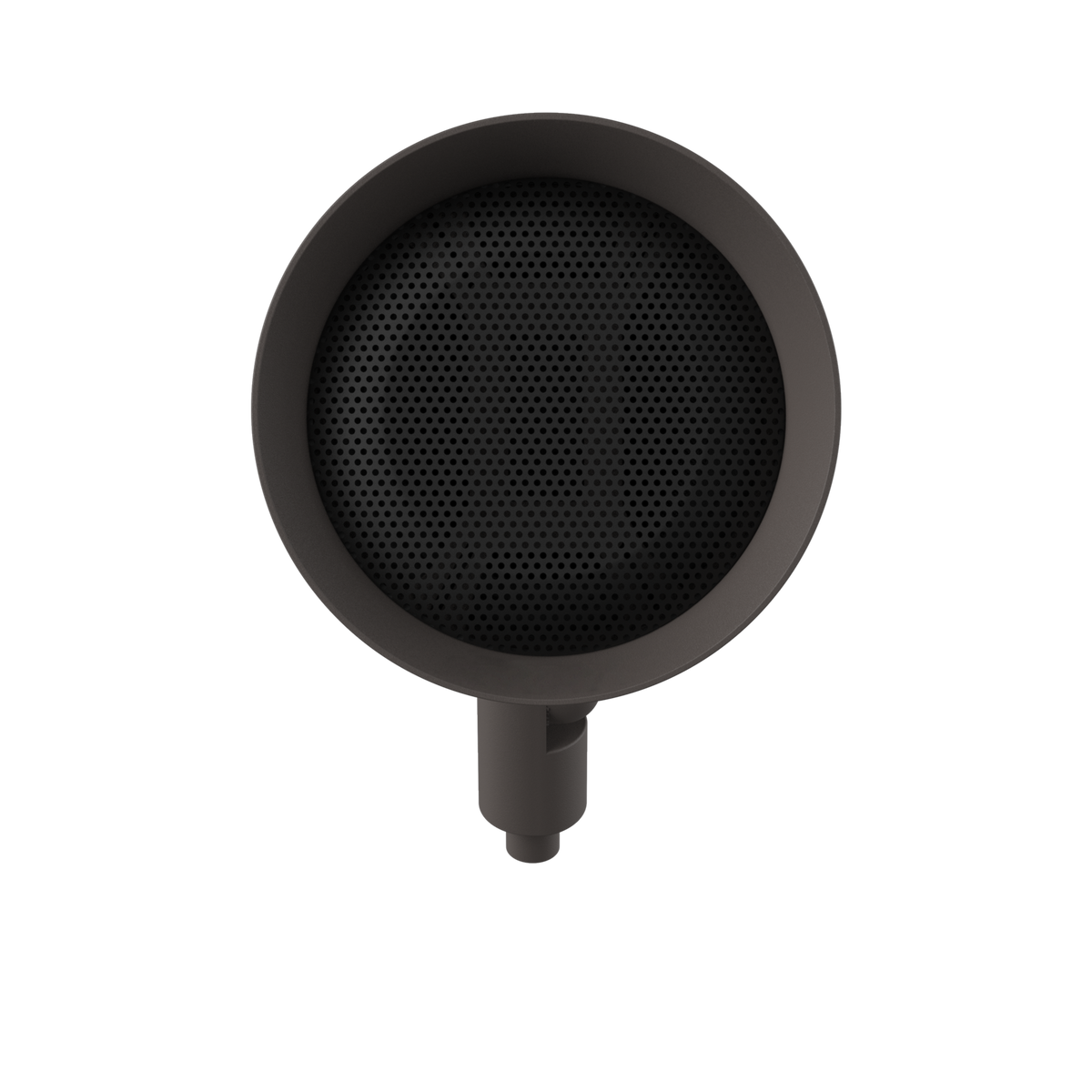

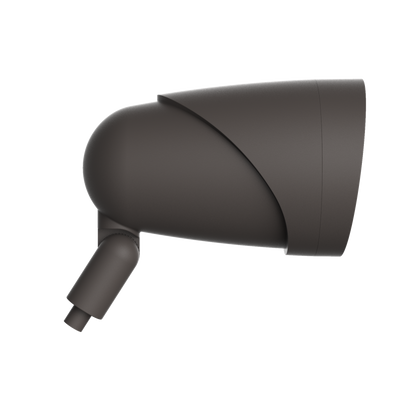

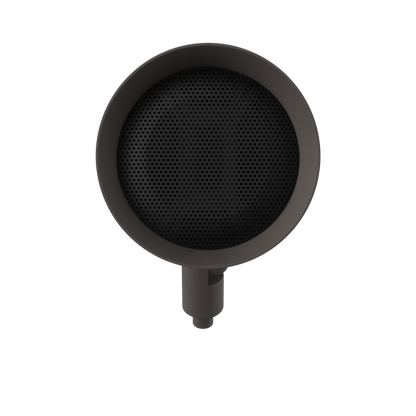

Crestron® Ultimate speakers made by Origin Acoustics deliver the pinnacle of performance for demanding outdoor installations. Select materials, top shelf components and a high-end appearance underscore the design behind each model. The result is a no-compromise outdoor speaker designed to be staked directly into the ground or mounted to an exterior wall, fence post, or tree.

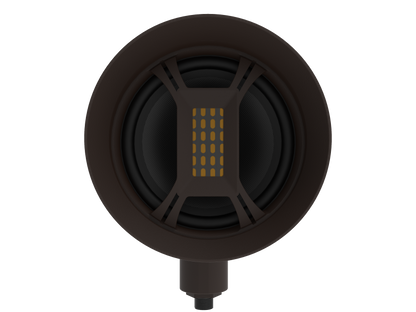

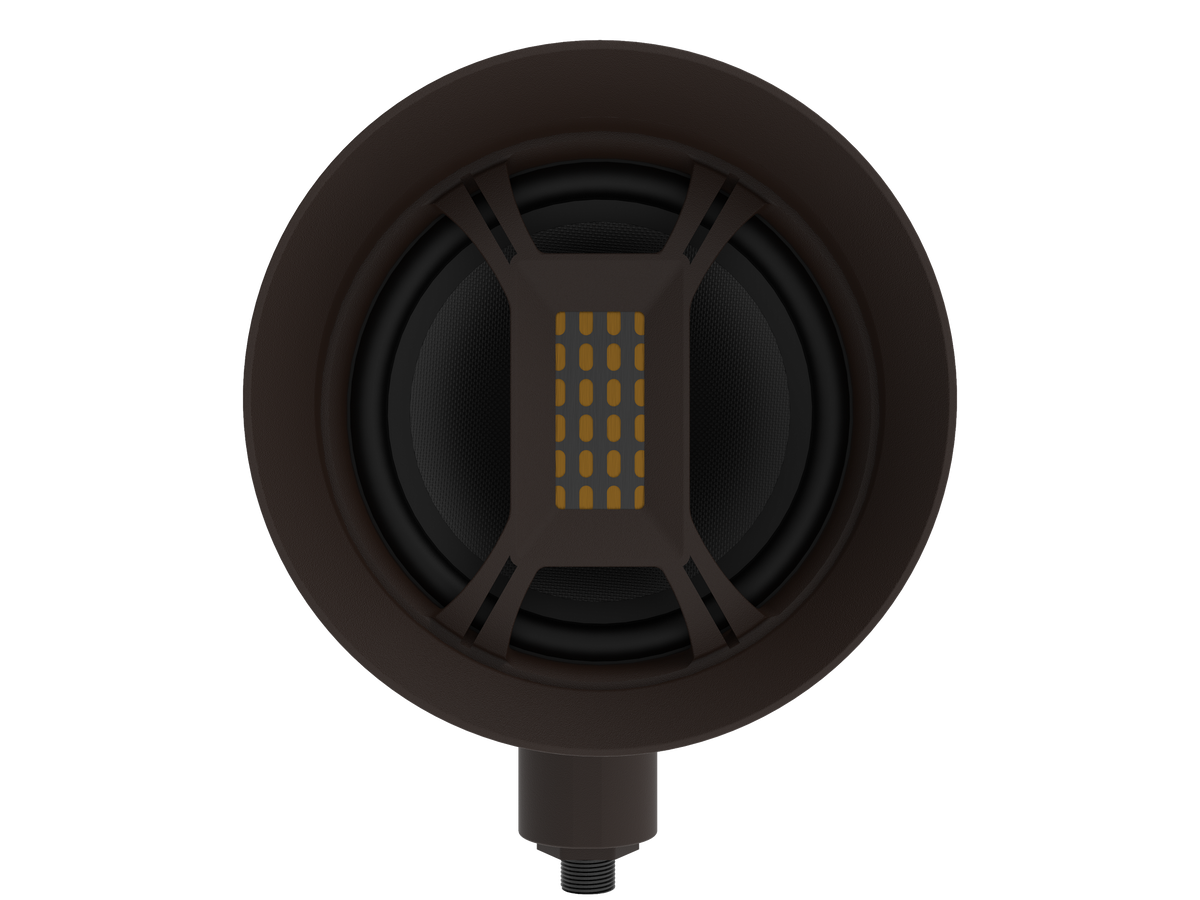

The ULTIMATE OD6T‑BRZ‑T‑EACH 2-way weatherproof outdoor speaker features a 5.25 in. (133 mm) glass fiber woofer with a co-located 3 in. (76 mm) planar magnetic ribbon tweeter for crisp highs with consistent coverage across a wide listening area.

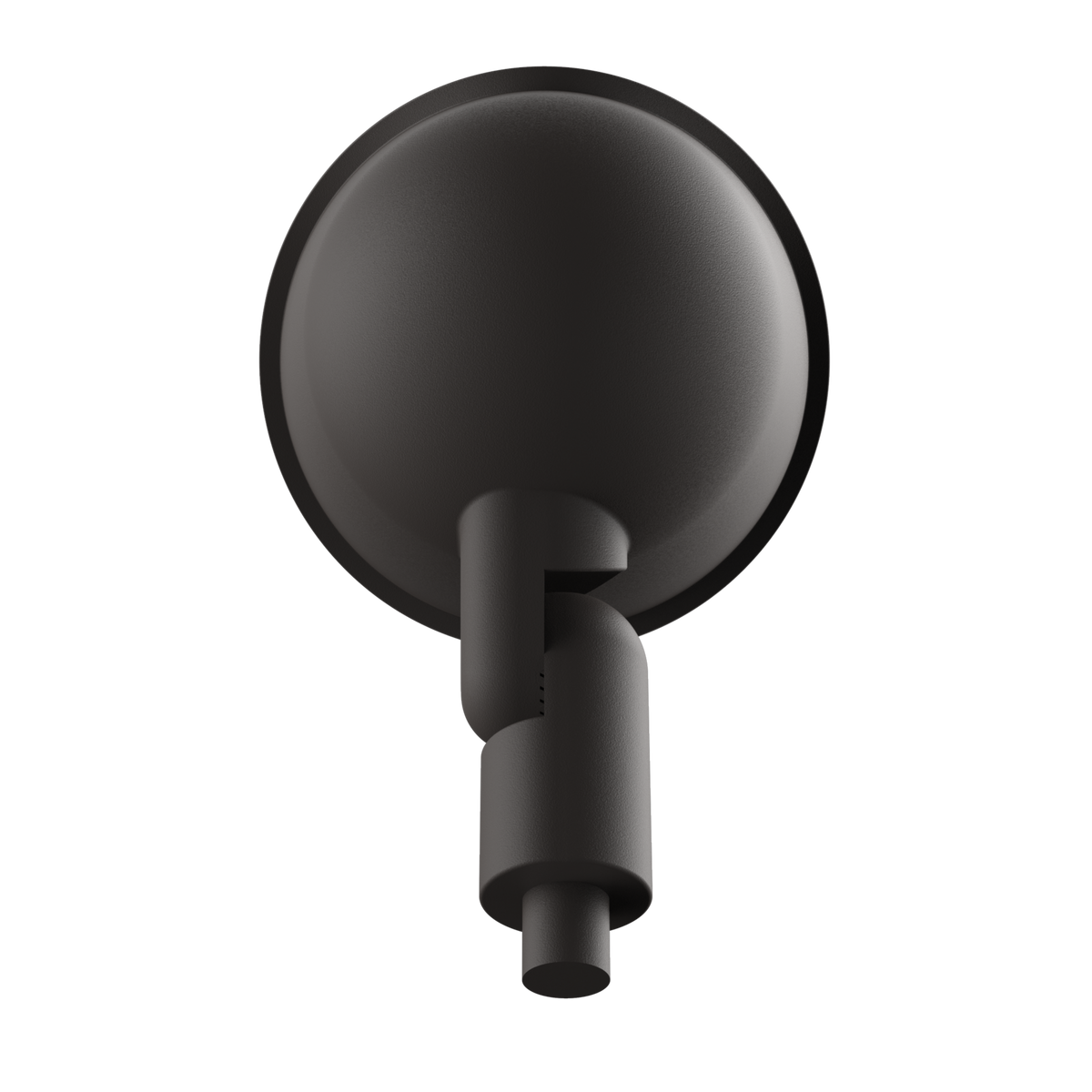

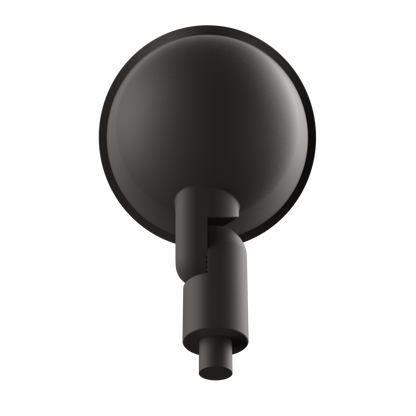

Each speaker includes a 24 in. (610 mm) direct-burial speaker wire that is permanently attached to the speaker and routed through the mounting base for a clean, reliable installation. A suitable electrical box (not included) is advised for termination of the speaker wiring. A pair of waterproof wire nuts are included to terminate the bare wire ends.
Use the ground stake (SPKA-STAKE-OD-18) to mount and install the speaker directly into the ground or use the tree or surface mount bracket (SPKA‑SMK/TREEMK‑ULTIMATE-OD6) to mount the speaker to an exterior wall, fence post, or tree.
NOTE: The ground stake and tree or surface mounted bracket are not included.
Features
Key Features
- Weatherproof 2-way outdoor speaker
- Co-located woofer and ribbon tweeter for phase coherence and wide dispersion resulting in a larger listening area
- Designed for landscape and wall mount applications
- 5.25 in. (133 mm) glass fiber woofer
- 3 in. (76 mm) planar magnetic ribbon tweeter
- IP65 rated for dust and water, weatherized construction
- 8 Ohms nominal impedance
- Built-in 70/100V transformer
- 75 W @ 70V, 150 W @ 100V program power handling
- 150 W (Program), and 300 W (Peak) power handling
- 120 Hz to 20 kHz (±3 dB) frequency response
- 110° horizontal and 75° vertical coverage
Specifications
| Features & Performance | |
| Woofer | 5.25 in. (133 mm) glass fiber |
| Tweeter | 3 in. (76 mm) planar magnetic ribbon |
| Crossover | Passive custom 12 dB/oct |
| Crossover Point | 2 kHz |
| Impedance | 8 Ohms nominal |
| Transformer Taps | 75 W @ 70V; 150 W @ 100V |
| Frequency Response | 120 Hz to 20 kHz (±3 dB) |
| Frequency Range | 95 Hz to 25 kHz (±10 dB) |
| Power Handling (8 Ohms) | Program: 150 W; Peak: 300 W |
| Sensitivity | 86 dB @ 1 W/1 M |
| Coverage | 110° horizontal and 75° vertical coverage |
| Connections | |
| Input | 24 in. x 14 AWG (2.5 mm2) pigtail with water proof wire nuts |
| Direct-burial Speaker Wire | 24 in. (610 mm) |
| Environmental | |
| Temperature | 4° to 176°F (-15.5° to 80°C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Splash Resistance | IP65 rated for water |
| Construction | |
| Enclosure | Color-molded composite |
| Baffle | UV treated HDPE |
| Grille | Electroplated and powder coated steel |
| Mounting | Ground stake, tree, or surface mount |
| Dimensions | |
| Height | 9.25 in. (235 mm) |
| Width | 6.65 in. (169 mm) |
| Depth | 10.43 in. (265 mm) |
| Weight | |
| 6.8 lb (3.1 kg) | |
| Compliance | |
| CE, RoHs, FCC Part 15 Class B digital device | |
| Regulatory Model | M202046011 |
