Product Information
Extends any USB 1.1 or 2.0 device up to 330 ft (100 m) point-to-point over one CAT5e (or better) shielded twisted pair cable. Mounts to a 1-gang electrical box. Extends any USB 1.1 or 2.0 device up to 330 ft (100 m) point-to-point over one CAT5e (or better) unshielded twisted pair cable.
Overview
The Crestron® USB over Category Cable Extender Wall Plates (USB‑EXT‑2‑LOCAL‑1G and USB‑EXT‑2-REMOTE‑1G) deliver reliable, high‑speed USB signal extension for USB 1.1 and 2.0 devices in a conference room, classroom, auditorium, command center, medical facility, public space, or residence. Without requiring any special configuration or drivers, the USB extenders enable wire runs up to 330 ft (100 m) over a single CAT5e (or better) shielded twisted-pair (STP) cable. The USB extenders support most USB device types and are plug‑and‑play compatible with computers running Windows®, macOS®, and Linux® operating systems.
Two types of wall plate USB extenders are available:
- USB‑EXT‑2‑REMOTE‑1G - Provides connectivity for up to two USB devices (keyboards, whiteboards, mobile devices, etc.) at one location
- USB‑EXT‑2‑LOCAL‑1G - Provides connectivity for a single USB host (computer, media server, codec, etc.)
Linking the two extenders requires one run of CAT5e shielded twisted-pair cable.2 Both extenders are powered by a single 100-240 VAC power supply, which can be connected at either end to an AC power receptacle.3 The USB‑EXT‑2‑LOCAL‑1G and USB‑EXT‑2‑REMOTE‑1G mount in an unobstructed North American 1-gang electrical box and are also compatible with the USB over Twisted Pair Extender (USB‑EXT‑2).
Notes:
- USB-EXT-2-LOCAL-1G and USB-EXT-2-REMOTE-1G power sources cannot power USB-EXT-2-LOCAL and USB-EXT-2-REMOTE.
- The USB‑EXT‑2‑LOCAL‑1G and USB‑EXT‑2‑REMOTE‑1G are simple point-to-point USB signal extenders. They do not switch or route USB signals, and do not connect to a network. For KVM and other applications routing USB signals over an Ethernet network, please refer to the USB over Category Cable Extender Wall Plates (USB‑NX2‑LOCAL‑1G and USB‑NX2‑REMOTE‑1G) or the USB over Ethernet Extenders with Routing (USB‑EXT‑DM‑LOCAL and USB‑EXT‑DM‑REMOTE).2
Features
Key Features
- Provide reliable, high-speed USB signal extension for most USB 1.1 or 2.0 devices1
- Compatible with Crestron® USB over Twisted Pair Extender (USB‑EXT‑2)
- Extend USB signals up to 330 ft (100 m) over CAT5e (or better) twisted-pair cable2
- 100-240 VAC power supply (included)
- Enable transparent point-to-point USB extension without any configuration or programming
- Mount in an unobstructed North American 1-gang electrical box (not included)
- Plug-and-play compatible with most types of USB 1.1 and 2.0 devices and hosts1
- No drivers required with Windows®, macOS®, or Linux® operating systems1
- Transport USB over CAT5e at speeds up to 480 Mbps
- Mass Storage Acceleration maximizes USB 2.0 bulk transfer speeds
- Expandable using up to 4 USB hubs (not included)
- provides 2 USB Type A ports
Specifications
| Communications | |
| LINK | USB extension up to 330 ft (100 m) over solid-core CAT5e (or better) shielded twisted pair (STP) cable2 |
| USB Device Support | USB 1.0/1.1 and 2.0 compatible including mass storage and isochronous devices1 |
| USB Hub Support | Any signal chain may include up to 4 USB hubs plus one USB-EXT-2-LOCAL-1G and one |
| Maximum USB Devices | 30 USB devices, or 4 USB hubs with 26 USB devices |
| Host Computer OS Support | Windows®, macOS®, and Linux® operating systems |
| USB Throughput | USB 2.0 up to 480 Mbps, USB 1.1 up to 12 Mbps |
| Connectors – Local endpoint | |
| 24 V 0.75A | (1) 2-pin 3.5 mm detachable terminal block; 24 VDC power input; PW-2407WUL power supply included3 |
| CONFIG | For factory use only |
| LINK | Connects directly to a Remote extender2 |
| USB | (1) USB Type B connector, female; USB 2.0 device port for connection to the USB host computer, media server, game console, annotator, codec, etc. |
| Connectors – Remote endpoint | |

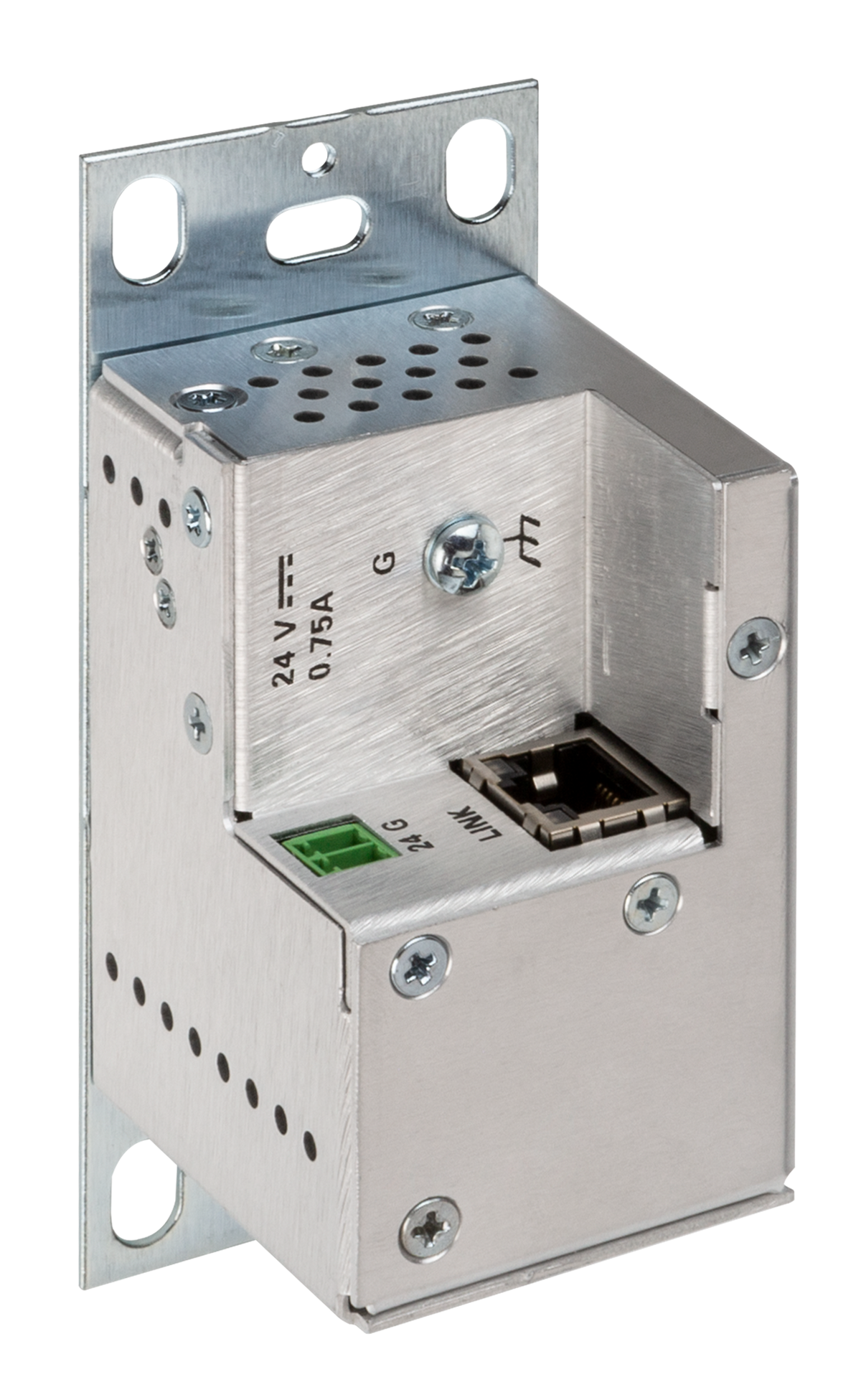

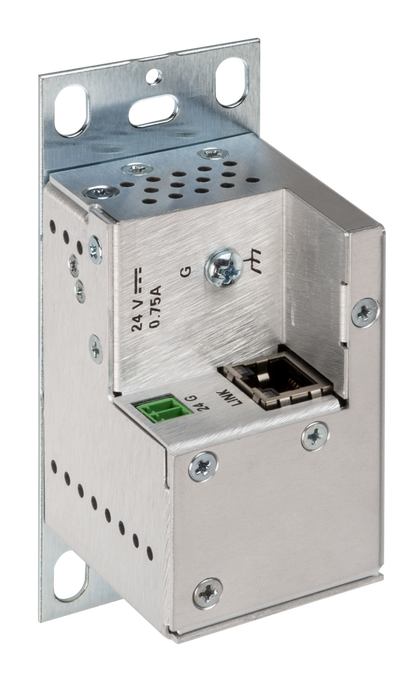

| 24 V 0.75A | (1) 2-pin 3.5 mm detachable terminal block; 24 VDC power input; PW-2407WUL power supply included3 |
| CONFIG | For factory use only |
| LINK | (1) 8-pin RJ45 connector, female; Connects to Link port on the Local extender2 |
| USB | (2) USB Type A connectors, female; USB 2.0 host ports for connection of USB devices such as mice, keyboards, and other USB devices1 |
| Indicators – Local endpoint | |
| ACT | (1) Amber LED, indicates data activity on the LINK interface |
| HOST | (1) Green LED, indicates a valid connection to the USB host |
| LINK | (1) Green LED, indicates a valid LINK connection to the Remote extender |
| MODE | (1) Recessed pushbutton (for factory use only) |
| PWR | (1) Blue LED, indicates operating power is supplied via the local power supply or the LINK connection3 |

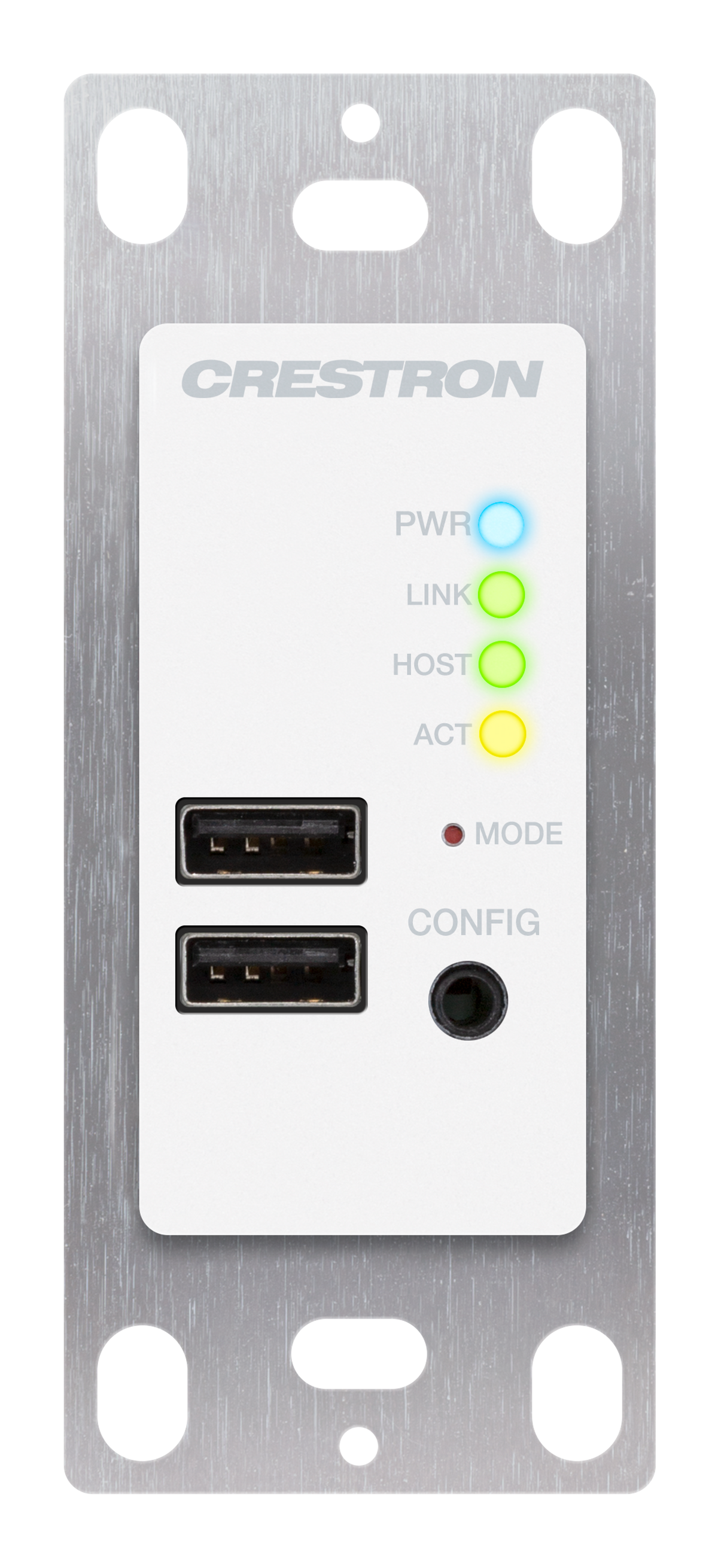

| Indicators – Remote endpoint | |
| ACT | (1) Amber LED, indicates data activity on the LINK interface |
| HOST | (1) Green LED, indicates a valid connection to the USB host at the Local extender |
| LINK | (1) Green LED, indicates a valid LINK connection to the Local extender |
| MODE | (1) Recessed pushbutton (for factory use only) |
| PWR | (1) Blue LED, indicates operating power is supplied via the local power supply or the LINK connection3 |
| Power | |
| USB‑EXT‑2‑LOCAL‑1G | USB powered via the USB host interface3 An optional ferrite bead is provided to reduce or prevent EMI (electromagnetic interference).3 |
| USB‑EXT‑2‑REMOTE‑1G | Input: 100-240 VAC, 50/60 Hz; Output: 0.75 A @ 24 VDC; Model: PW-2407WUL;3 An optional ferrite bead is provided to reduce or prevent EMI (electromagnetic interference).3 |
| Environmental | |
| Temperature | 32° to 122° F (0° to 50° C) |
| Humidity | 20% to 80% RH (non-condensing) |
| Enclosure | |
| Construction | Metal, black finish with white or black polycarbonate label overlay |

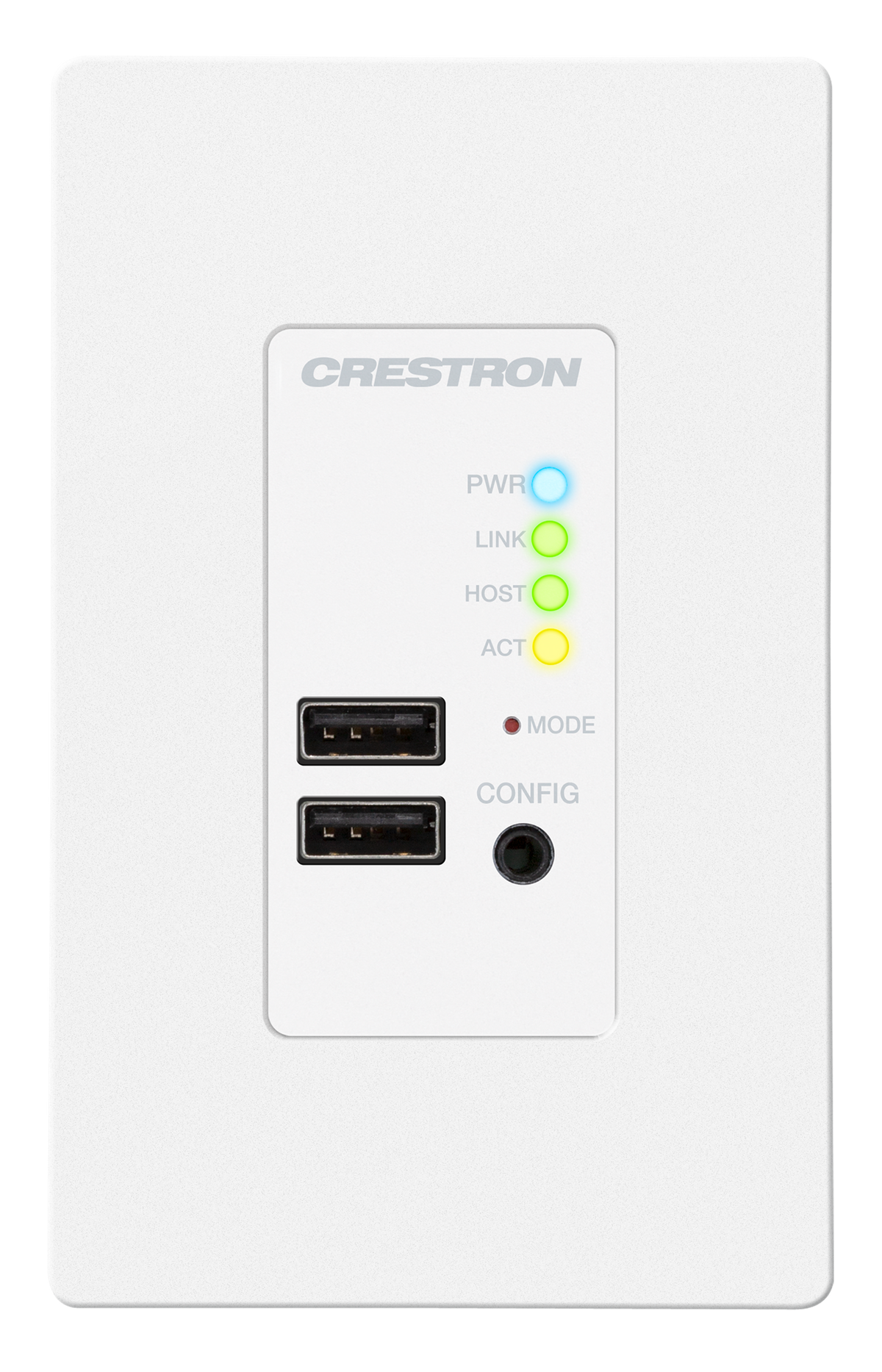

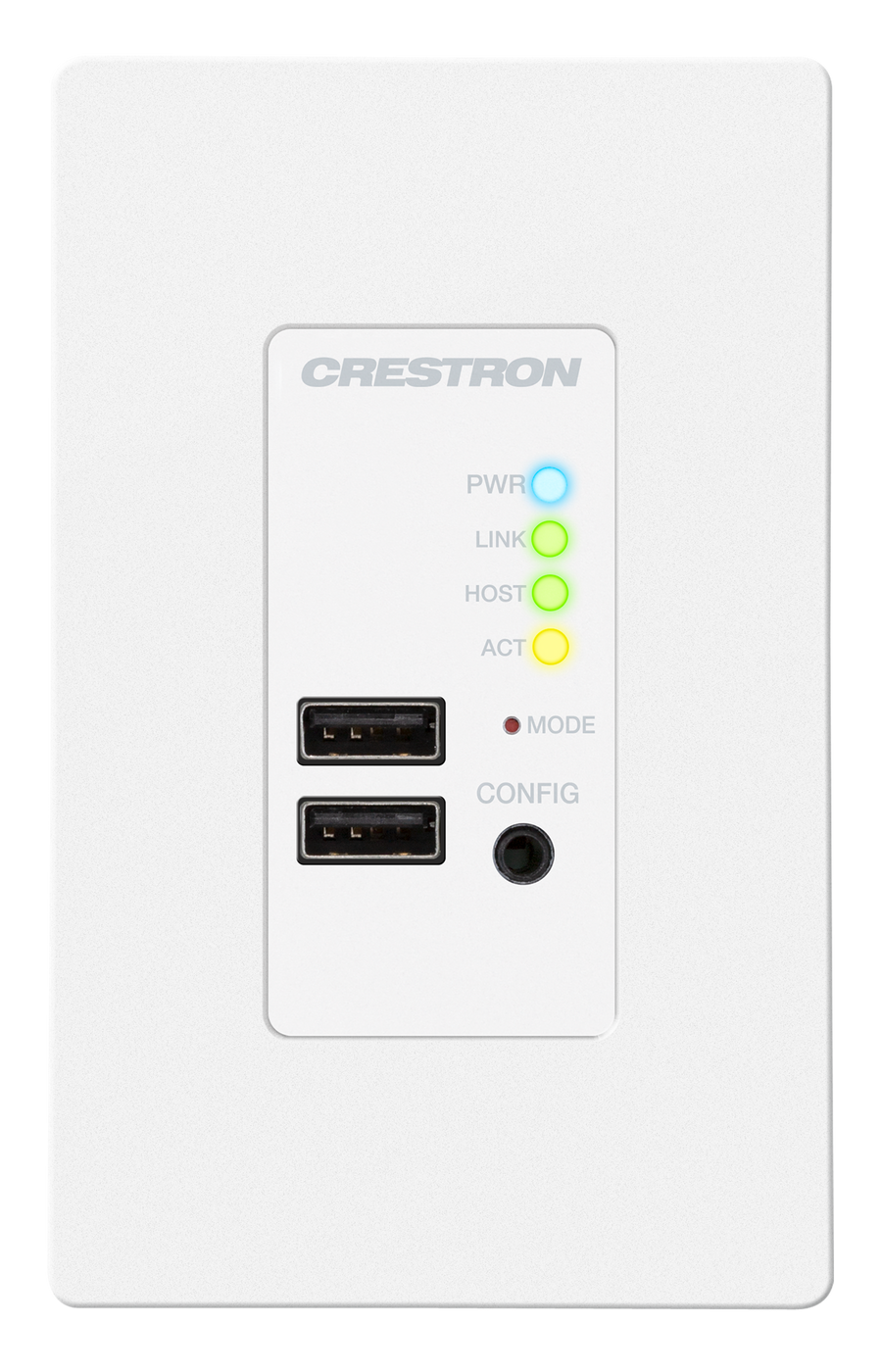

| Flush Wall Mount | Mounts in an unobstructed North American 1-gang electrical box (not included); Minimum mounting depth of 2 in. (51 mm) required; FP-G1 series decorator style faceplate (not included) |
| Dimensions | |
| Height | 4.12 in. (105 mm) |
| Width | 1.72 in. (44 mm) |
| Depth | 1.95 in. (50 mm) |
| Compliance | |
| IC, FCC Part 15 Class B digital device, Intertek® Listed for US and Canada | |
