Extends USB 3.2, 2.0, or 1.1 devices up to 330 ft (100 m) point-to-point over one CAT6a/CAT7 (or better) F/FTP or U/FTP cable. Mounts to a 1-gang electrical box.
Overview

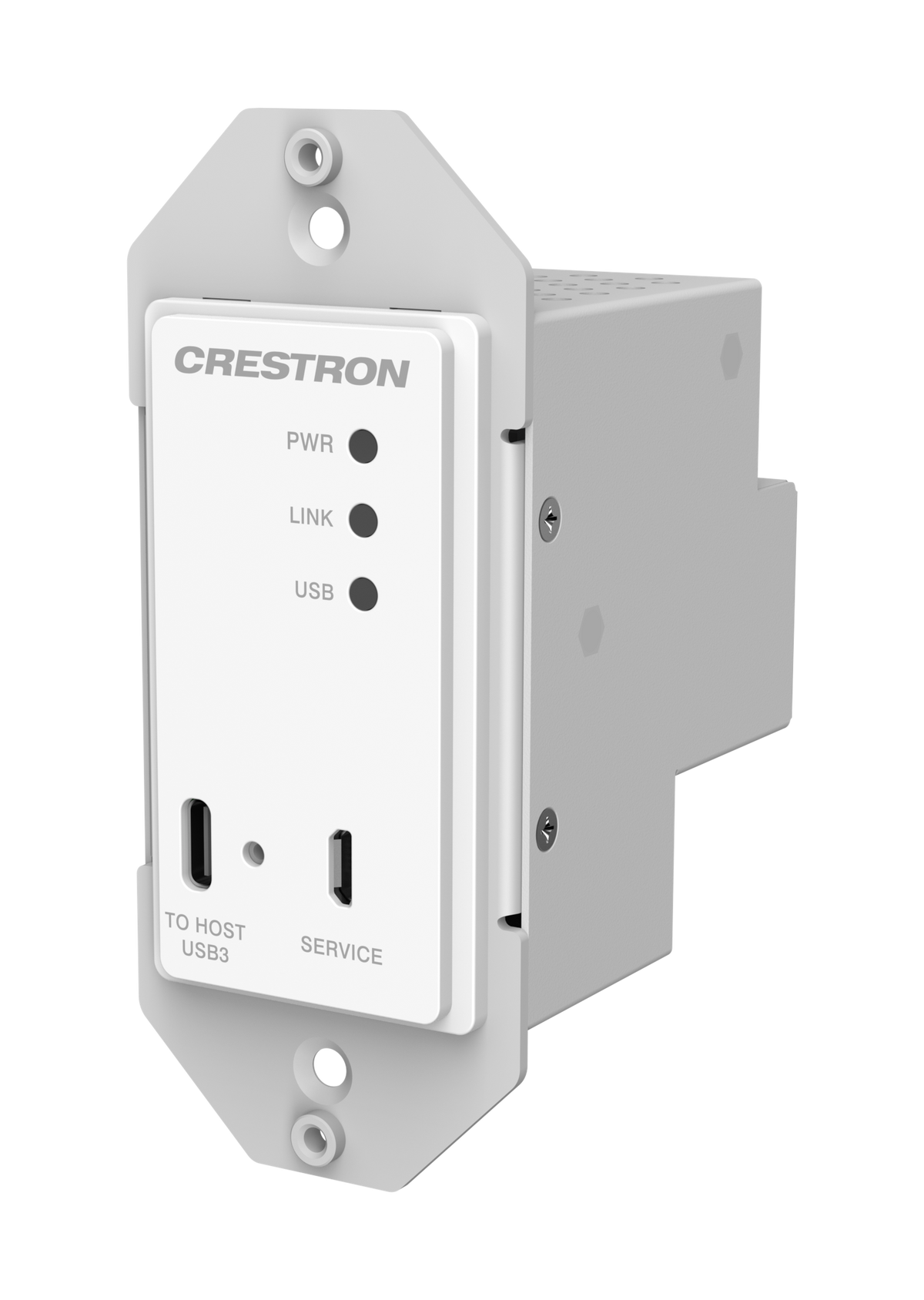

The USB‑EXT‑3S‑LOCAL‑1G is a USB3.2 Gen 1 extender wall plate with connectivity for a single USB host such as a computer. The extender supports plug-and-play functionality with hosts running Windows®, macOS®, Linux®, or Chrome OS™ operating systems. No additional driver installation is required.1
USB‑EXT‑3S endpoints fully support USB 3.2 isochronous (ISO) transport, which offers enhanced support for UC cameras and video capture devices. ISO traffic is guaranteed a certain percentage of all USB bandwidth. Other connected USB devices, such as bulk storage devices, will not decrease the performance of the ISO stream, resulting in high-quality video performance.

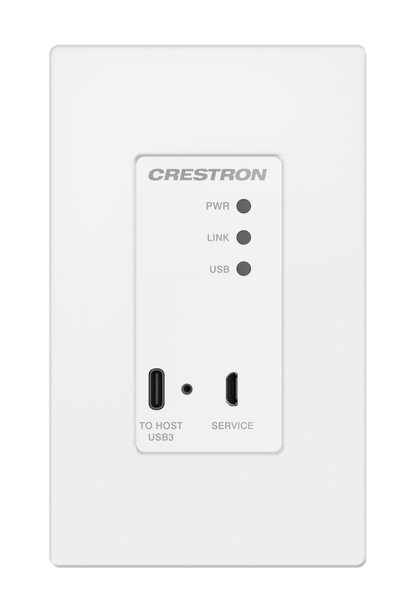

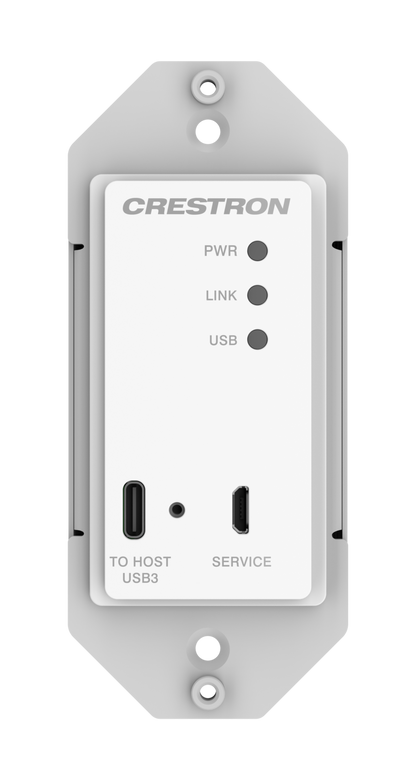

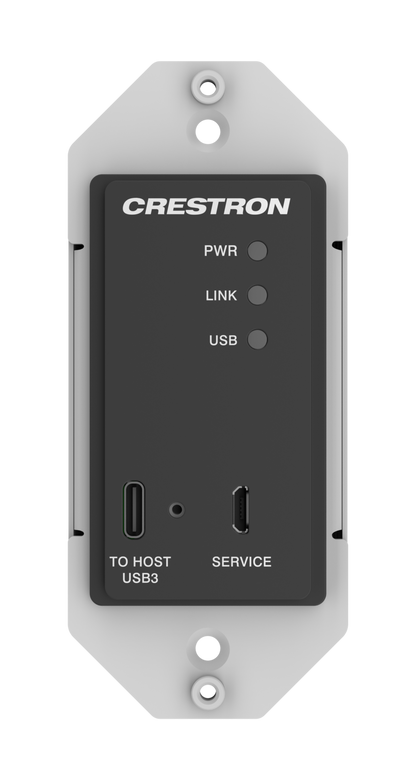

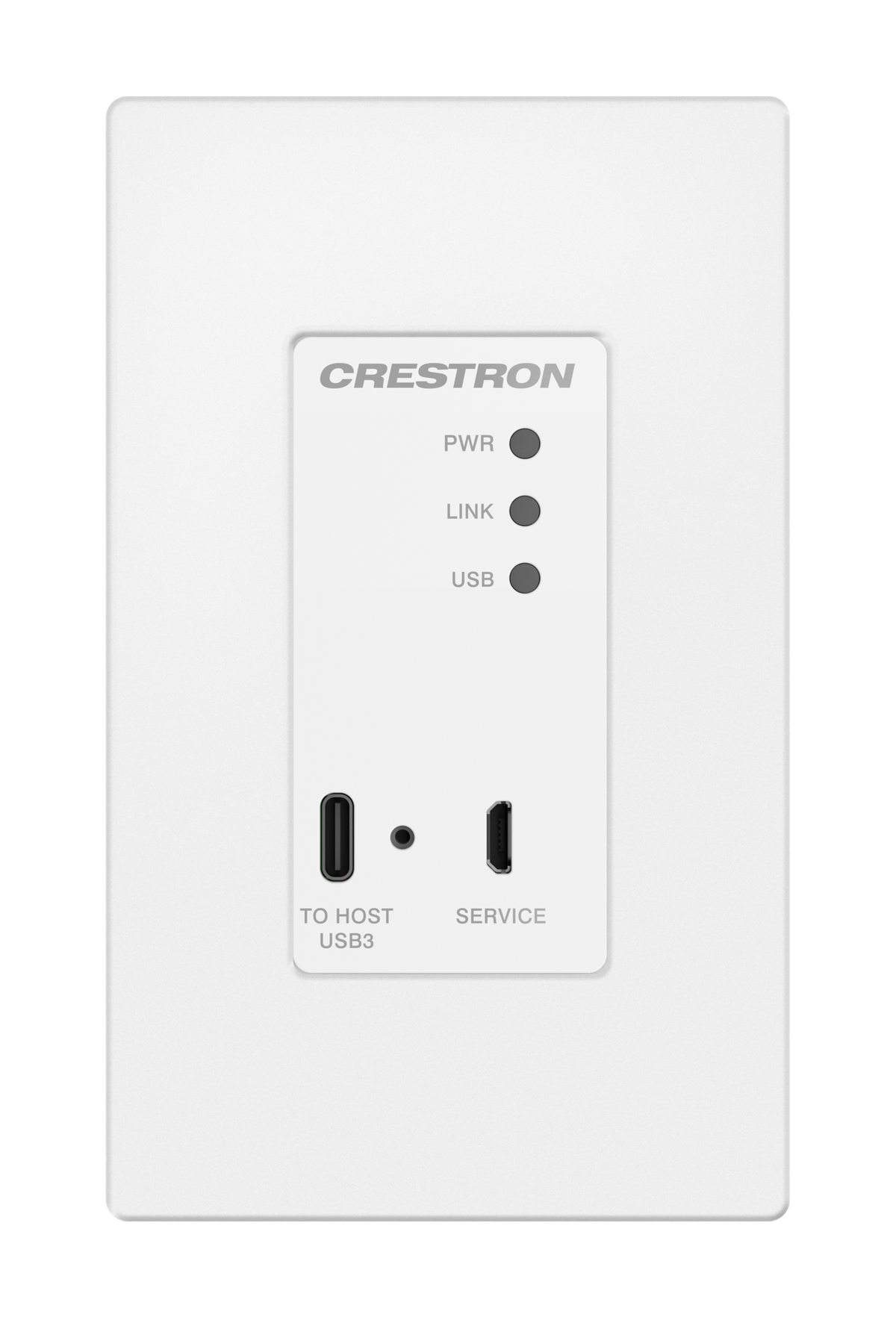

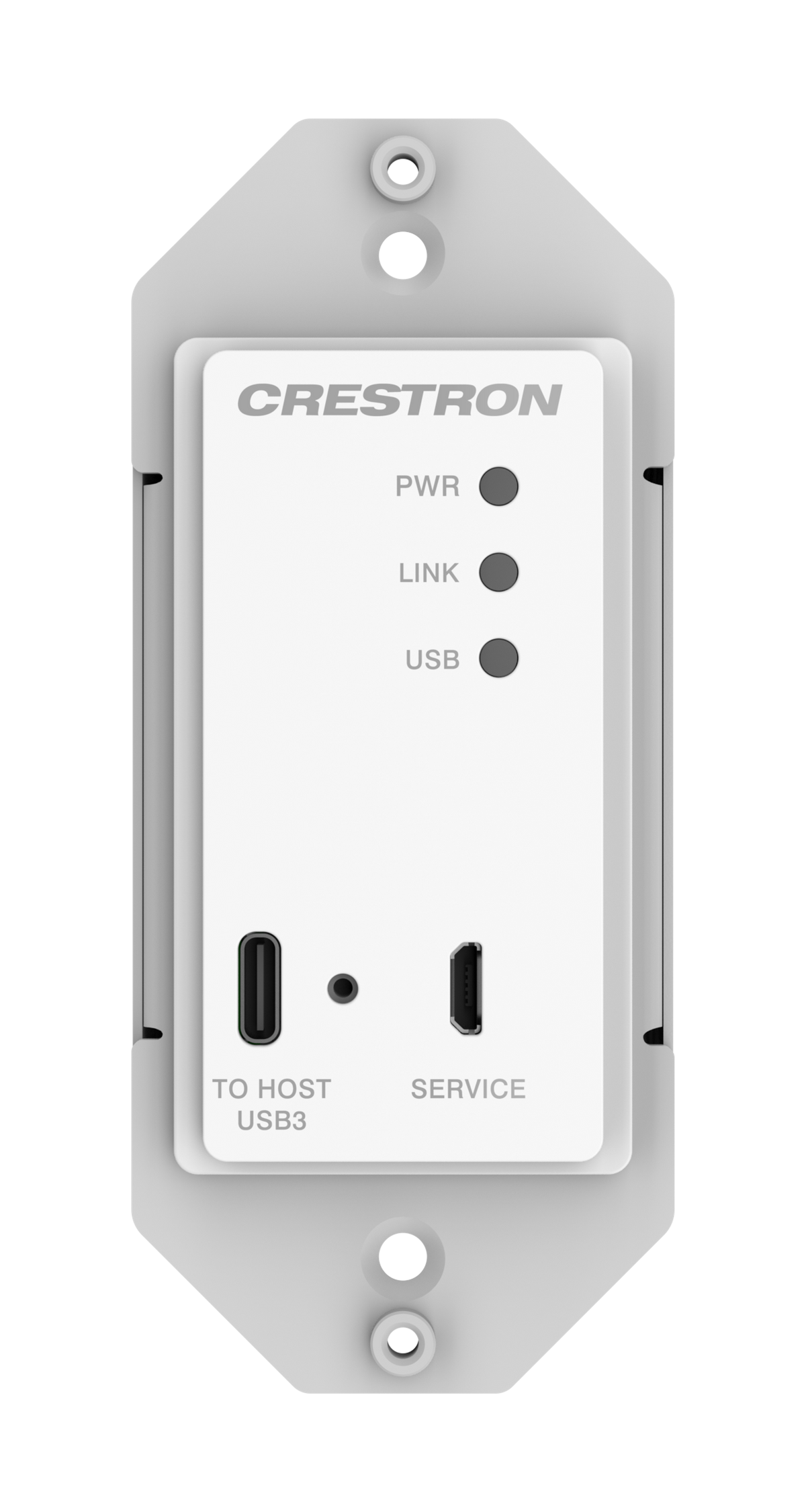

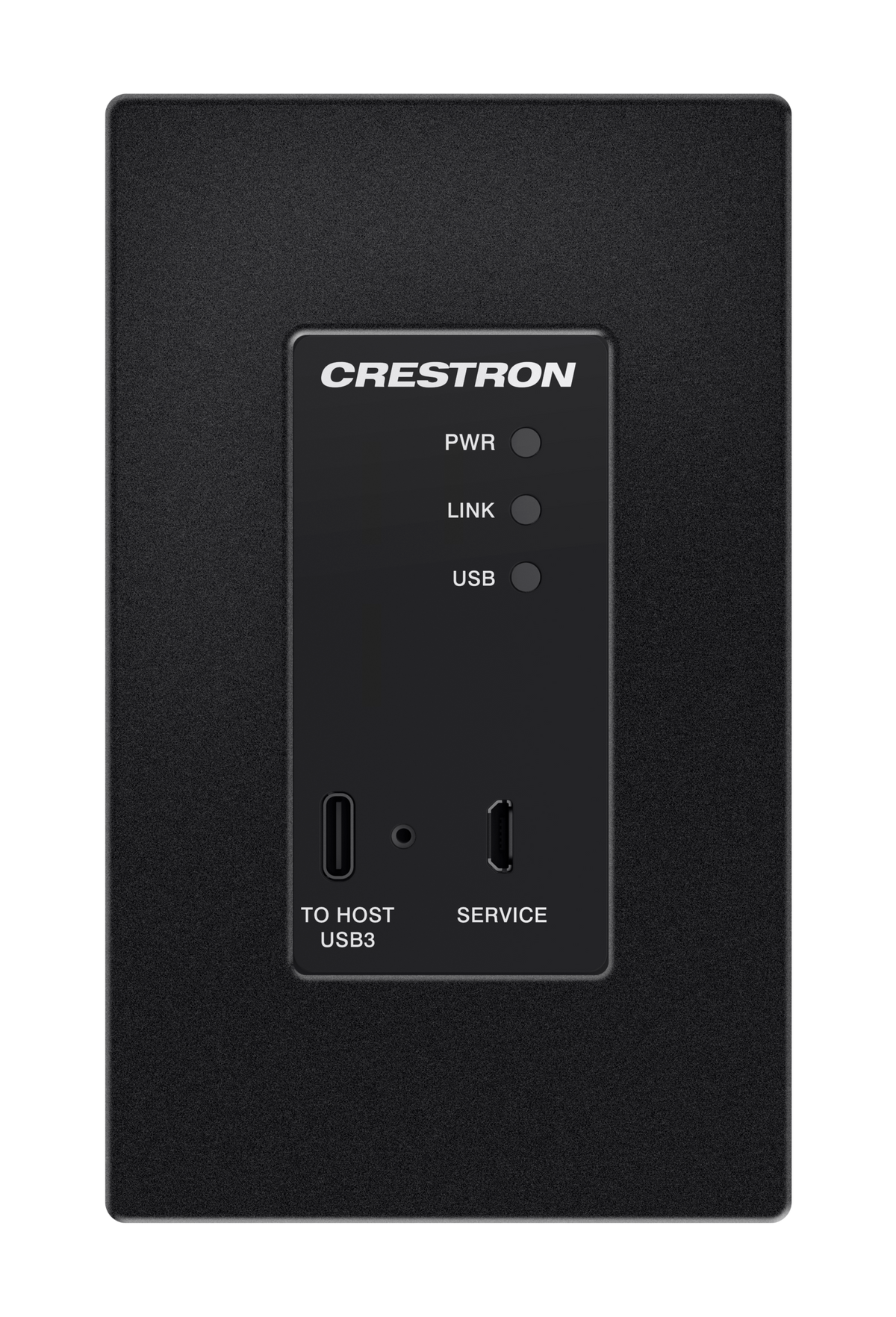

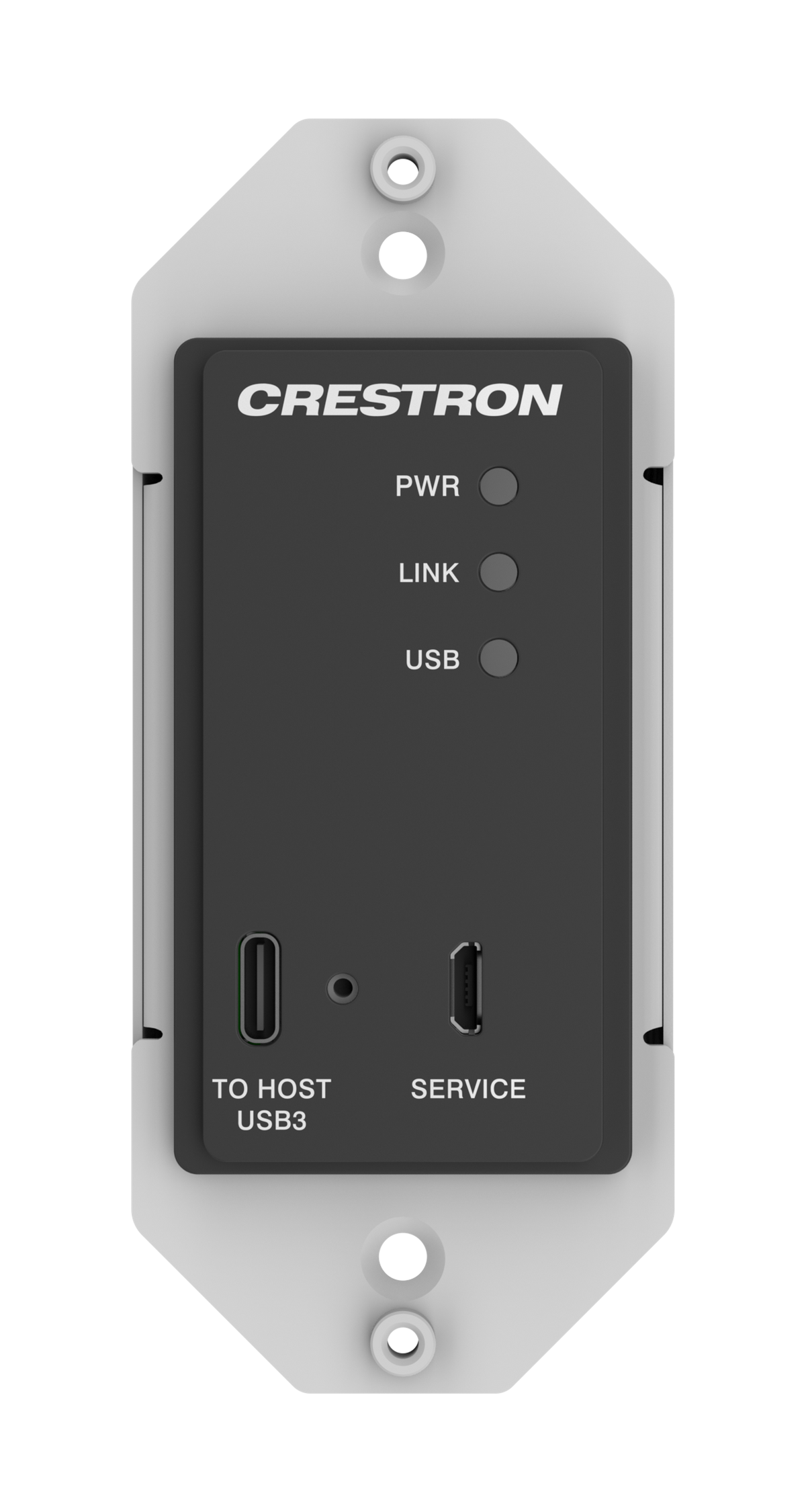

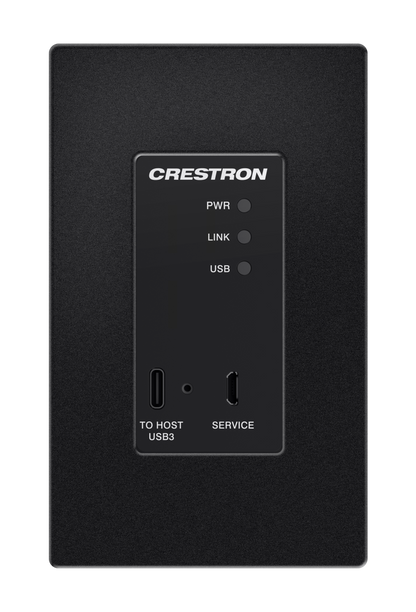

The wall plate ships with both a white and black front panel. The white panel is installed by default and can be swapped for the black panel during installation. FP‑G1 decorator faceplates are sold separately to cover the electrical box and wall plate housing.2
An RS-232 pass-through port is included on each USB‑EXT‑3S endpoint to transmit serial data from a control system over the LINK connection.
Features
Key Features
- Point-to-point connectivity for USB signal extension over CAT6a/CAT7 up to 330 ft (100 m)
- USB 3.2 Gen 1 data rate up to 5 Gbps
- Supports USB 3.2, 2.0, and 1.1 signals simultaneously
- Supports all USB transfer types: control, interrupt, isochronous (ISO), and bulk
- RS-232 serial pass-through port
- Plug-and-play functionality without the need for additional drivers
- Compatibility with Windows®, macOS®, Linux®, and Chrome OS™ operating systems
- Mountable in a standard US electrical box
- TAA compliant
- Swappable black and white front panels included
- Compatible with FP‑G1 decorator-style face plates (sold separately)
- 20VDC power pack PW‑2030DUL (sold separately) required when paired with USB-EXT-3S-REMOTE-1G
Specifications

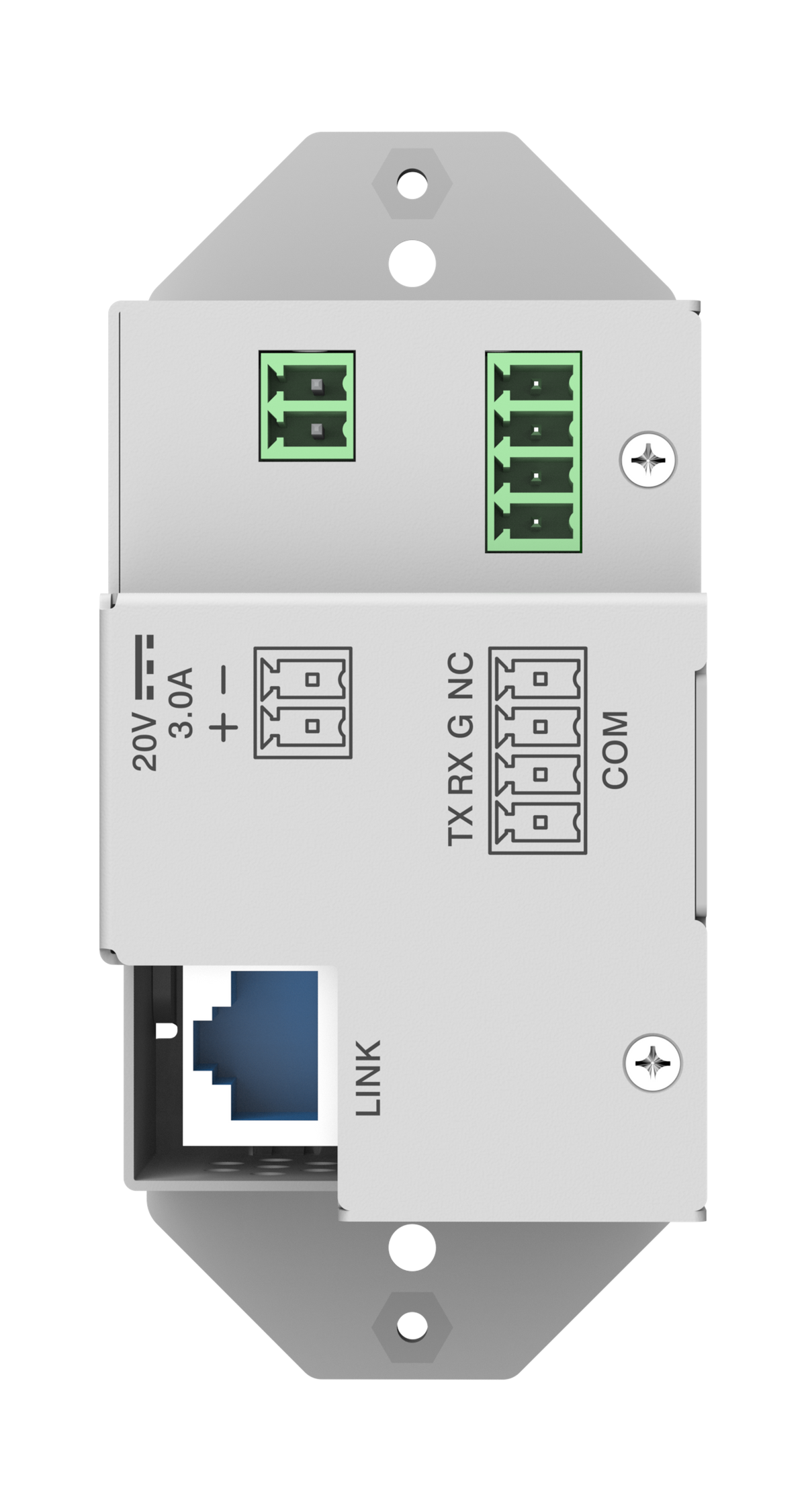

| Communications | |
| LINK | Proprietary link for point-to-point connection between USB‑EXT‑3S endpoints |
| USB Speeds | USB 3.2 Gen 1 up to 5 Gbps; USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps |
| RS-232 | Bidirectional serial pass-through |
| Connectors | |
| 20V 3.0A | (1) 2-pin DC power connector; 20VDC power input; PW‑2030DUL power supply sold separately5 |
| TO HOST USB3 | (1) USB Type-C® connector, female; USB 3.2 Gen 1 host port for connection to computer, media server, game console, or other USB host;1 Backward compatibility with USB 2.0 and USB 1.1 |

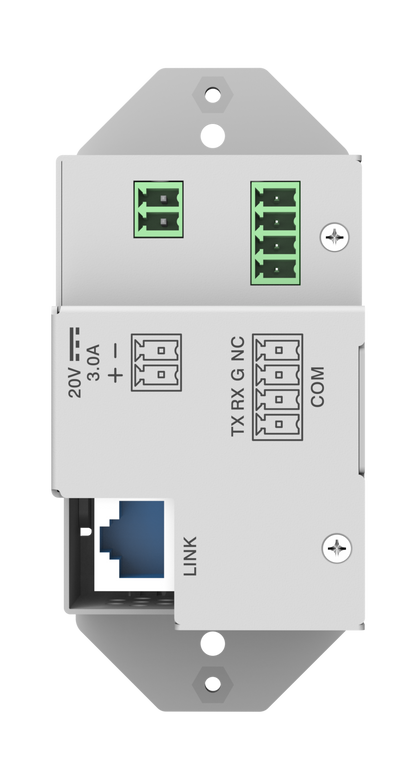

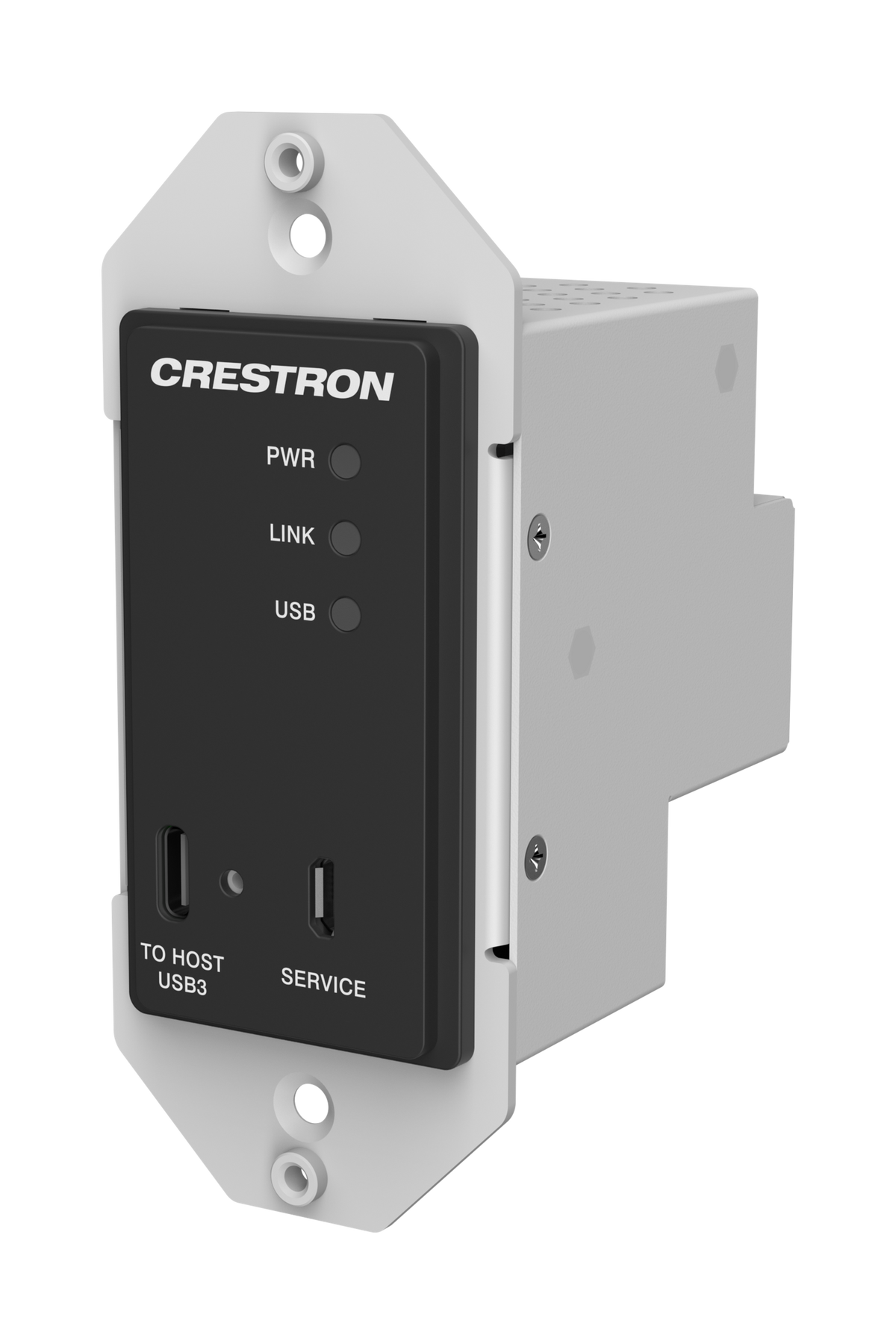

| LINK | (1) 8-pin RJ-45 connector, female; Connects directly to LINK port on USB‑EXT‑3S‑REMOTE;4 Up to 330 ft (100 m) over CAT6a/7 cable;1 If not powered locally, receives power from connected REMOTE endpoint5 |
| COM | (1) 4-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; Fourth pin (labeled NC) not used |
| SERVICE | For factory use only |
| Indicators | |
| PWR | (1) Green LED, indicates that power is being supplied from the included power pack or over the LINK connection |
| LINK | (1) Green LED, indicates that a link is established between the local and remote endpoints |
| USB | (1) Green LED; Solid indicates that only USB 3 (or greater) devices are connected and the link is active; Flashing green indicates that one or more USB 2 (or lower) devices are connected and the link is active; Off indicates that no USB devices are connected |
| Power | |
| Power Pack (Included)5 | Input: 100-240VAC, 50/60 Hz; Output: 3.0A @ 20VDC; Model PW‑2030DUL sold separately |
| Power Consumption | 31.28 W total between LOCAL and REMOTE |
| Environmental | |
| Temperature | Operating: 32° to 122°F (0° to 50°C) Storage: -4° to 158°F (-20° to 70°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Construction | Metal housing with detachable white and black plastic face plates included |
| Mounting | Mounts in an unobstructed North American 1-gang electrical box (not included); Minimum mounting depth of 3.5 in. (89 mm) required; FP‑G1 series decorator style face plate (not included)2 |
| Dimensions | |
| Height | 4.16 in. (106 mm) |
| Width | 1.77 in. (45 mm) |
| Depth | 2.36 in. (60 mm) |
| Weight | |
| 6.61 oz (187 g) | |
| Compliance | |
|
Regulatory Model: M202444002 FCC Part 15 Class B, IC Class B, CE, Intertek® Listed for US and Canada |
|
