Product Information
Extends USB 3.2, 2.0, or 1.1 devices up to 330 ft (100 m) point-to-point over one CAT6a/CAT7 (or better) F/FTP or U/FTP cable.
Overview

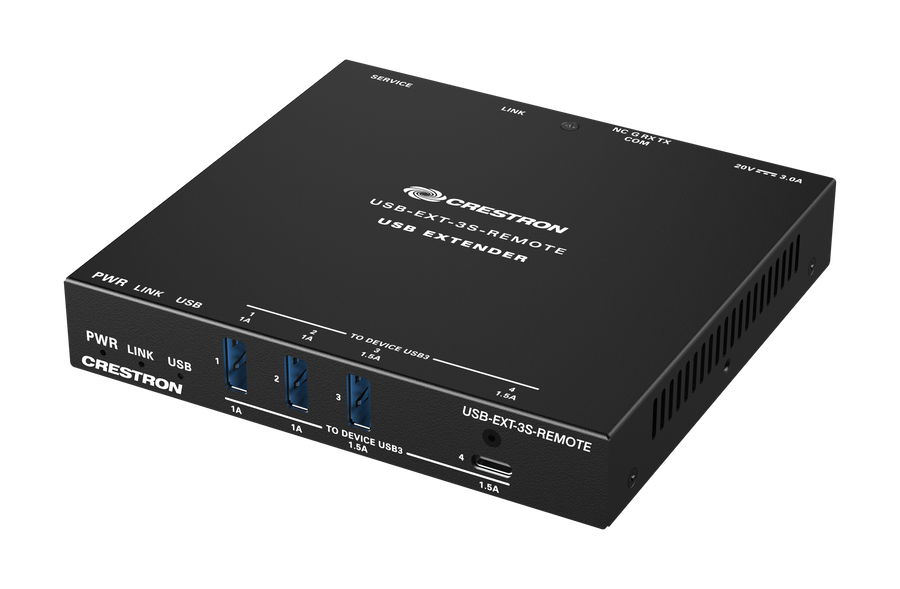

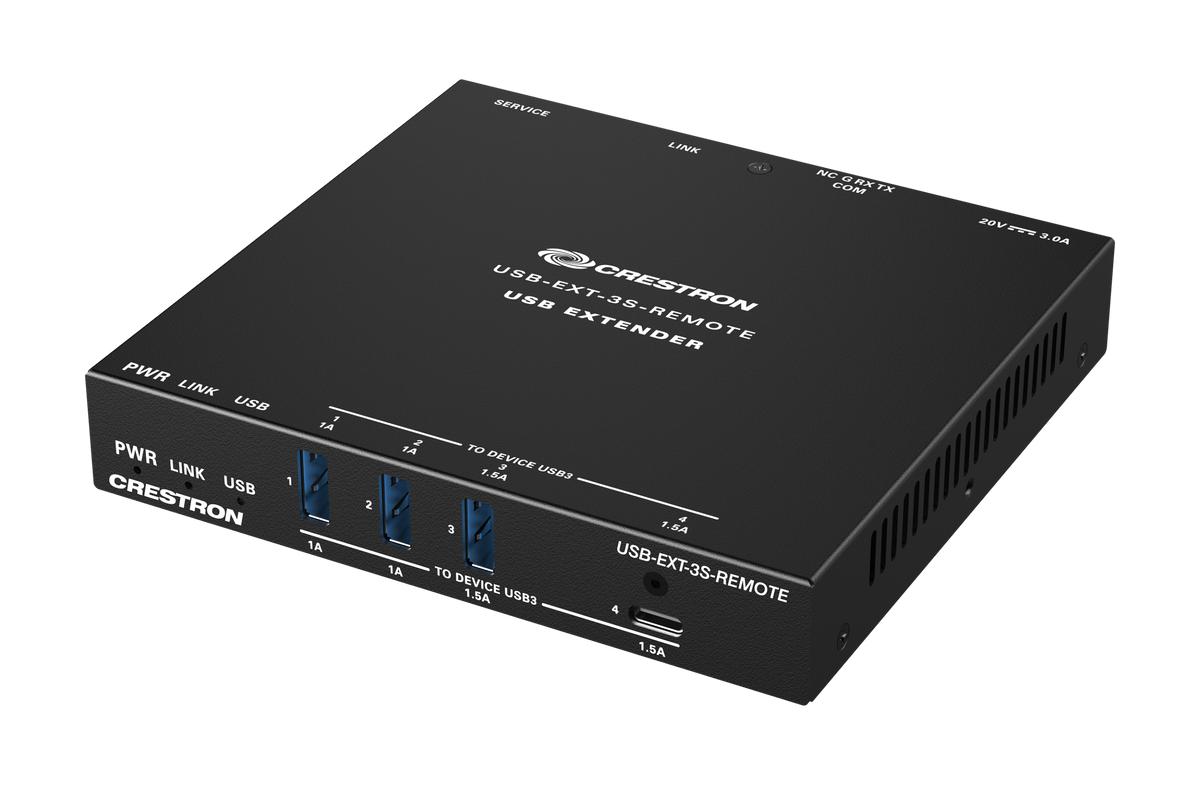

The USB‑EXT‑3S‑REMOTE is a USB3.2 Gen 1 extender with connectivity for up to four USB devices such as cameras or video capture devices at one location.1 The extender is expandable to support additional USB devices with the connection of USB hubs (not included).

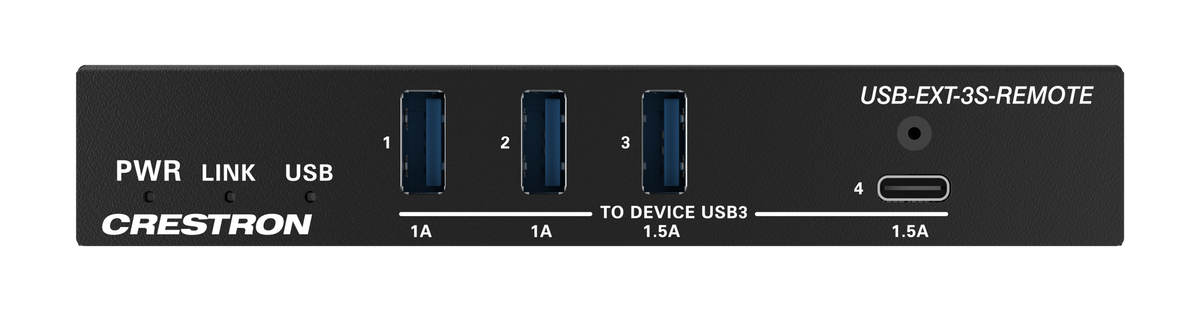

Three USB Type-A connectors and one USB Type-C® connector are provided. Each connector can supply power to a connected USB device, with the first two connectors supplying up to 1A and the last two connectors supplying up to 1.5A.
USB-EXT-3S endpoints fully support USB 3.2 isochronous (ISO) transport, which offers enhanced support for UC cameras and video capture devices. ISO traffic is guaranteed a certain percentage of all USB bandwidth. Other connected USB devices, such as bulk storage devices, will not decrease the performance of the ISO stream, resulting in high-quality video performance.
An RS-232 pass-through port is included on each USB‑EXT‑3S endpoint to transmit serial data from a control system over the LINK connection.
Features
Key Features
- Point-to-point connectivity for USB signal extension over CAT6a/CAT7 up to 330 ft (100 m)
- USB 3.2 Gen 1 data rate up to 5 Gbps
- USB Type-A and USB Type-C® connections supported
- Supports USB 3.2, 2.0, and 1.1 signals simultaneously
- Supports all USB transfer types: control, interrupt, isochronous (ISO), and bulk
- RS-232 serial pass-through port
- Plug-and-play functionality without the need for additional drivers
- Compatibility with Windows®, macOS®, Linux®, and Chrome OS™ operating systems
- Small form-factor, freestanding or surface mountable
- TAA compliant
- 20VDC power pack PW‑2030DU sold separately
Specifications
| Communications | |
| LINK | Proprietary link for point-to-point connection between USB‑EXT‑3S endpoints |
| USB Speeds | USB 3.2 Gen 1 up to 5 Gbps; USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps |
| RS-232 | Bidirectional serial pass-through |
| Connectors | |

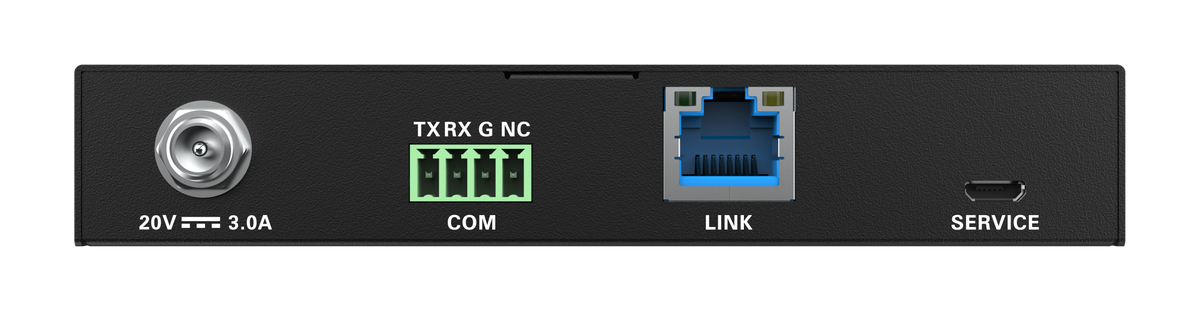

| 20V 3.0A | (1) locking DC power connector; 20VDC power input; PW‑2030DU power supply sold separately4 |
| TO DEVICE USB3 1-2 | (2) USB Type-A connectors, female; USB 3.2 Gen 1 device ports for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices;2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1A per USB port |
| TO DEVICE USB3 3 | (1) USB Type-A connector, female; USB 3.2 Gen 1 device port for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices;2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1.5A |
| TO DEVICE USB3 4 | (1) USB Type-C connector, female; USB 3.2 Gen 1 device port for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices;2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1.5A |
| LINK | (1) 8-pin RJ-45 connector, female; Connects directly to LINK port on USB‑EXT‑3S‑REMOTE;3 Up to 330 ft (100 m) over CAT6a/7 cable;1 If powered locally, supplies power to connected LOCAL endpoint; If not powered locally, receives power from connected LOCAL endpoint4 |
| COM | (1) 4-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; Fourth pin (labeled NC) not used |
| SERVICE | For factory use only |
| Indicators | |
| PWR | (1) Green LED, indicates that power is being supplied from the included power pack or over the LINK connection |
| LINK | (1) Green LED, indicates that a link is established between the local and remote endpoints |
| USB | (1) Green LED; Solid indicates that only USB 3 (or greater) devices are connected and the link is active; Flashing green indicates that one or more USB 2 (or lower) devices are connected and the link is active; Off indicates that no USB devices are connected |
| Power | |
| Power Pack (Included)4 | Input: 100-240VAC, 50/60 Hz; Output: 3.0A @ 20VDC; Model PW‑2030DU sold separately |
| Power Consumption | 31.28 W total between LOCAL and REMOTE; 25 W allocated to 4 USB devices NOTE: When a remote endpoint receives power over the LINK connection from a local endpoint, the total USB power available to connected peripherals will be less than 17.5 W (3.5A). |
| Environmental | |
| Temperature | Operating: 32° to 122°F (0° to 50°C) Storage: -4° to 158°F (-20° to 70°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Construction | Metal, black finish, vented sides |
| Mounting | Freestanding or surface mountable (mounting hardware included) |
| Dimensions | |
| Height | 0.89 in. (23 mm) |
| Width | 5.12 in. (130 mm) |
| Depth | 4.90 in. (125 mm) |
| Weight | |
| 12 oz (340 g) | |
| Compliance | |
|
Regulatory Model: M202444001 FCC Part 15 Class B, IC Class B, CE, Intertek® Listed for US and Canada |
|
