Product Information
Extends USB 3.2, 2.0, or 1.1 devices up to 330 ft (100 m) point-to-point over one CAT6a/CAT7 (or better) F/FTP or U/FTP cable.
Overview
The Crestron USB‑EXT‑3S SYSTEM offers a versatile USB 3.2 extender to support USB peripherals such as UC soundbars and cameras. A standard USB 3.2 cable has a maximum length of 6 ft (1.8 m), which is not adequate for most integrated solutions used in conference rooms and other meeting spaces. The USB‑EXT‑3S SYSTEM provides a solution for the simultaneous extension of USB signals up to 330 ft (100 m) over CAT 6a/7 cable at speeds of up to 5 Gbps.1
The USB‑EXT‑3S SYSTEM fully supports USB 3.2 isochronous (ISO) transport, which offers enhanced support for UC cameras and video capture devices. ISO traffic is guaranteed a certain percentage of all USB bandwidth. Other connected USB devices, such as bulk storage devices, will not decrease the performance of the ISO stream, resulting in high-quality video performance.

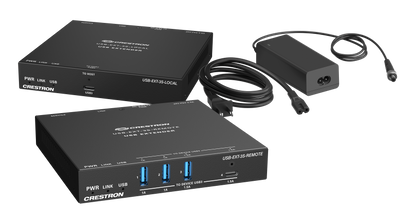

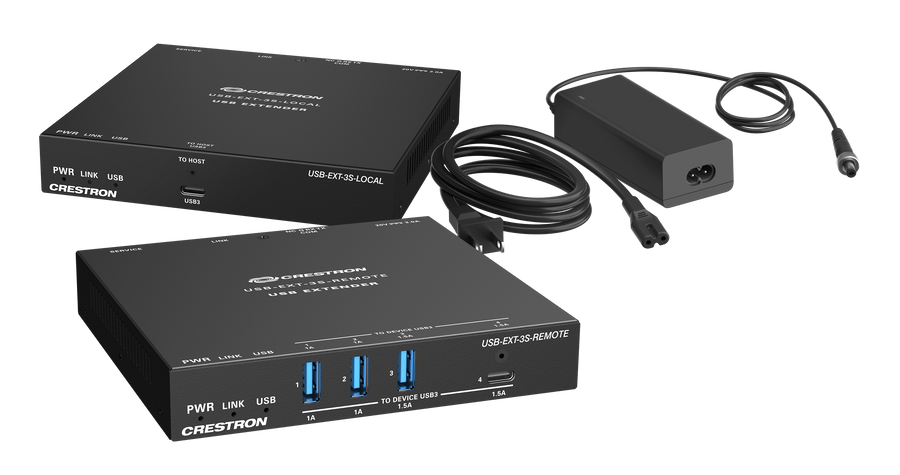

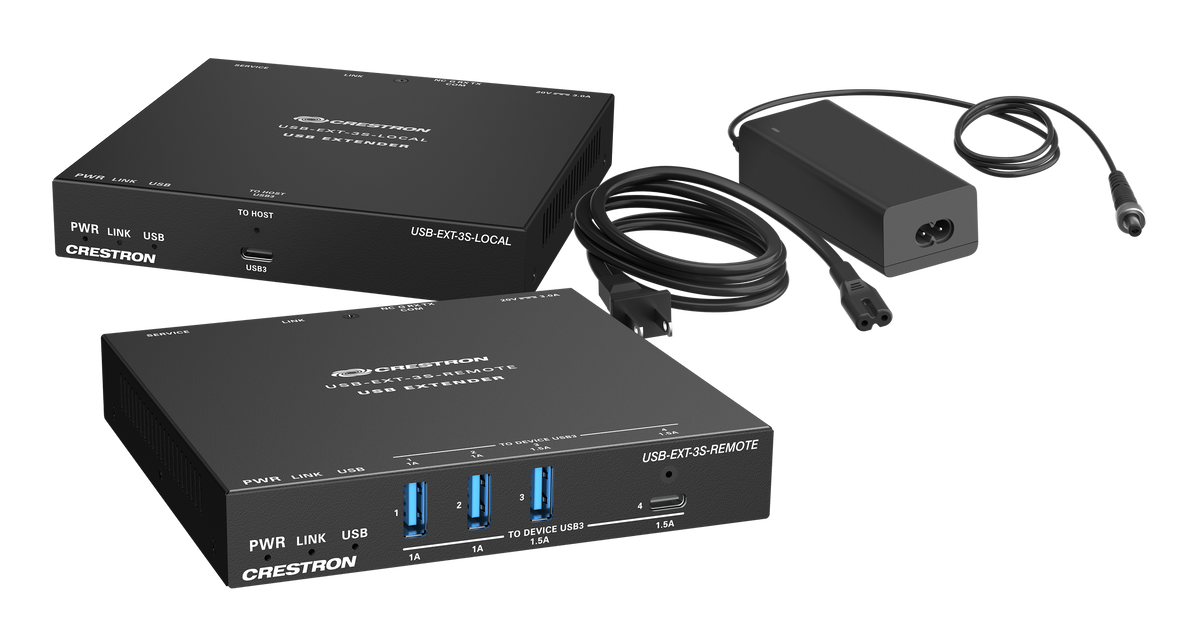

The USB‑EXT‑3S SYSTEM consists of a USB‑EXT‑3S‑LOCAL and a USB‑EXT‑3S‑REMOTE endpoint, which are used with each other in point-to-point USB extender applications:

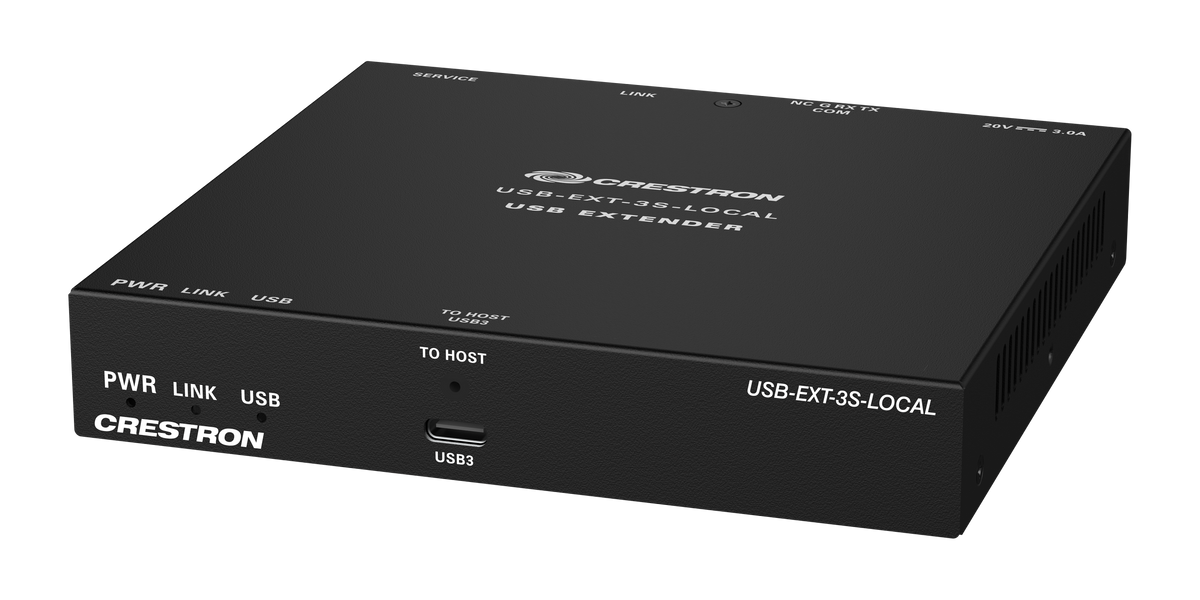

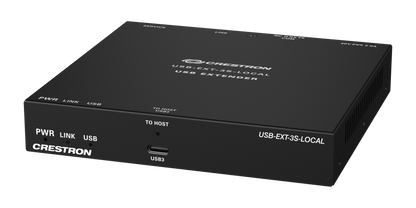

- The USB‑EXT‑3S‑LOCAL provides connectivity for a single USB host such as a computer. The extender supports plug-and-play functionality with a USB host running Windows®, macOS®, Linux®, and Chrome OS™ operating systems. No additional driver installation is required.

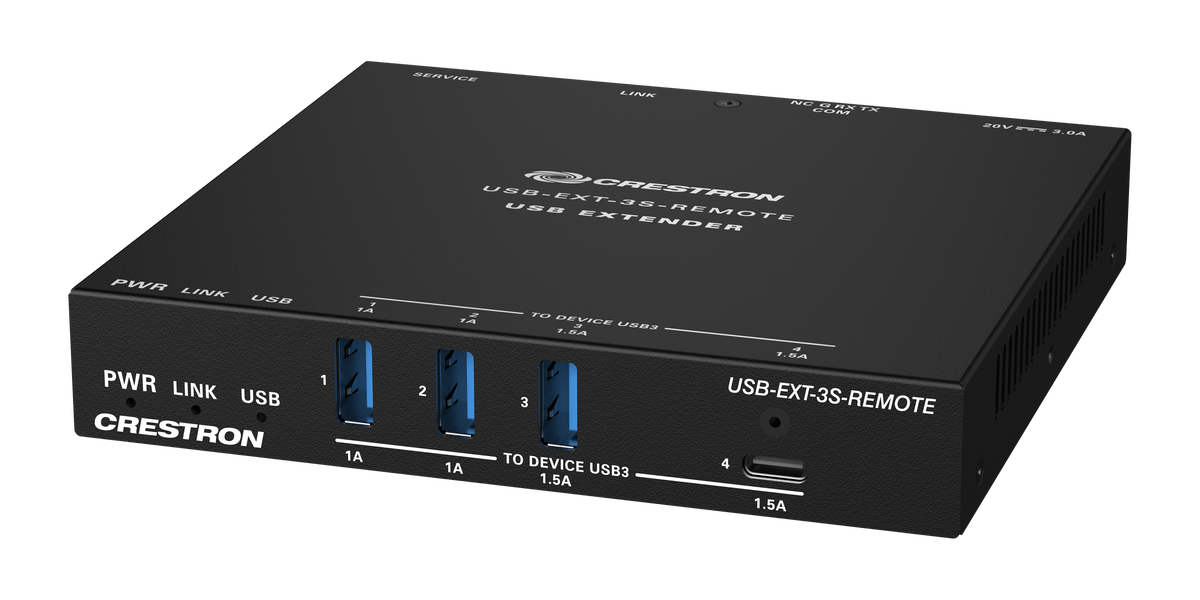

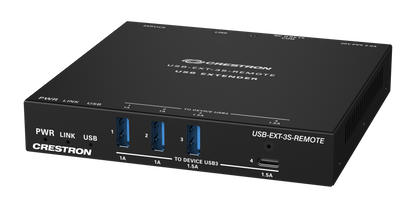

- The USB‑EXT‑3S‑REMOTE provides connectivity for up to one USB Type-C and three USB Type-A devices such as USB cameras and video capture devices at one location.2
An RS-232 pass-through port is included on each USB‑EXT‑3S endpoint to transmit serial data from a control system over the LINK connection.
Features
Key Features
- Point-to-point connectivity for USB signal extension over CAT6a/CAT7 up to 330 ft (100 m)
- USB 3.2 Gen 1 data rate up to 5 Gbps
- USB Type-A and USB Type-C® connections supported
- Supports USB 3.2, 2.0, and 1.1 signals simultaneously
- Supports all USB transfer types: control, interrupt, isochronous (ISO), and bulk
- RS-232 serial pass-through port
- Plug-and-play functionality without the need for additional drivers
- Compatibility with Windows®, macOS®, Linux®, and Chrome OS™ operating systems
- Small form-factor, freestanding or surface mountable
- TAA compliant
- 20VDC power pack included, connected endpoint supplies power to the other
Specifications
| Communications | |
| LINK | Proprietary link for point-to-point connection between USB‑EXT‑3S endpoints; Occupies a single USB tier |
| USB Speeds | USB 3.2 Gen 1 up to 5 Gbps; USB 2.0 up to 480 Mbps; USB 1.1 up to 12 Mbps |
| RS-232 | Bidirectional serial pass-through |
| Connectors - USB-EXT-3S-LOCAL | |
| 20V 3.0A | (1) locking DC power connector; 20VDC power input; PW‑2030DU power supply included4 |

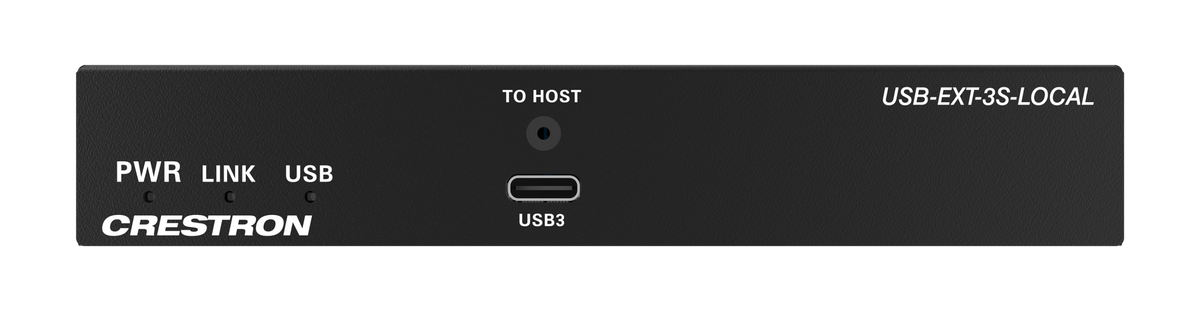

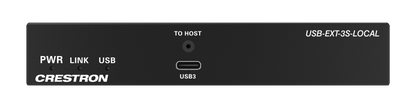

| TO HOST USB3 | (1) USB Type-C® connector, female; USB 3.2 Gen 1 host port for connection to computer, media server, game console, or other USB host;1 Backward compatibility with USB 2.0 and USB 1.1 |
| LINK | (1) 8-pin RJ-45 connector, female; Connects directly to LINK port on USB‑EXT‑3S‑REMOTE;3 Up to 330 ft (100 m) over CAT6a/7 cable;1 If powered locally, supplies power to connected REMOTE endpoint; If not powered locally, receives power from connected REMOTE endpoint4 |
| COM | (1) 4-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; Fourth pin (labeled NC) not used |
| SERVICE | For factory use only |
| Connectors - USB-EXT-3S-REMOTE | |

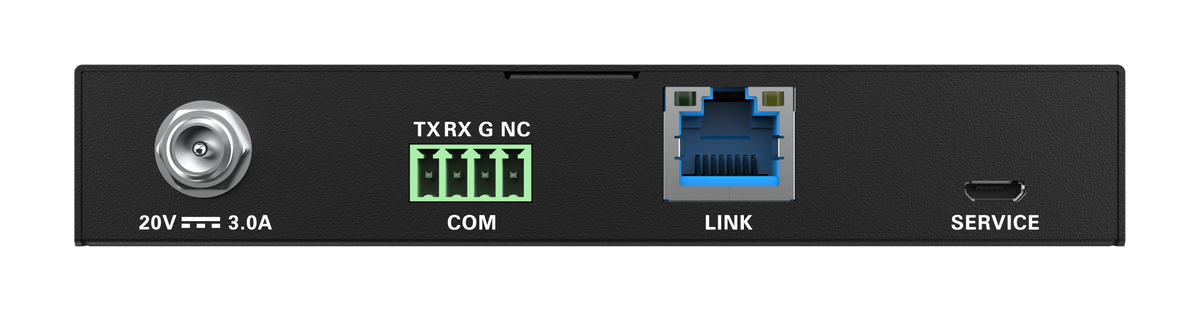

| 20V 3.0A | (1) locking DC power connector; 20VDC power input; PW‑2030DU power supply included4 |

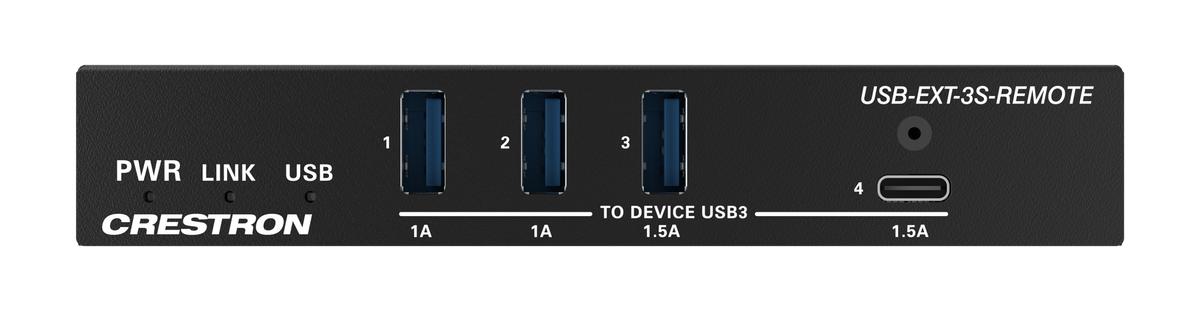

| TO DEVICE USB3 1-2 | (2) USB Type-A connectors, female; USB 3.2 Gen 1 device ports for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices;2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1A per USB port |
| TO DEVICE USB3 3 | (1) USB Type-A connector, female; USB 3.2 Gen 1 device port for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices;2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1.5A |
| TO DEVICE USB3 4 | (1) USB Type-C connector, female; USB 3.2 Gen 1 device port for connection to USB cameras, video capture devices, flash drives, keyboards, mice, hubs, or other USB devices;2 Backward compatibility with USB 2.0 and USB 1.1; Available Power: 1.5A |
| LINK | (1) 8-pin RJ-45 connector, female; Connects directly to LINK port on USB‑EXT‑3S‑REMOTE;3 Up to 330 ft (100 m) over CAT6a/7 cable;1 If powered locally, supplies power to connected LOCAL endpoint; If not powered locally, receives power from connected LOCAL endpoint4 |
| COM | (1) 4-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud; Fourth pin (labeled NC) not used |
| SERVICE | For factory use only |
| Indicators | |
| PWR | (1) Green LED, indicates that power is being supplied from the included power pack or over the LINK connection |
| LINK | (1) Green LED, indicates that a link is established between the local and remote endpoints |
| USB | (1) Green LED; Solid indicates that only USB 3 (or greater) devices are connected and the link is active; Flashing green indicates that one or more USB 2 (or lower) devices are connected and the link is active; Off indicates that no USB devices are connected |
| Power | |
| Power Pack (Included)4 | Input: 100-240VAC, 50/60 Hz; Output: 3.0A @ 20VDC; Model PW‑2030DU included |
| Power Consumption | 31.28 W total between LOCAL and REMOTE; 25 W allocated to 4 USB devices NOTE: When a remote endpoint receives power over the LINK connection from a local endpoint, the total USB power available to connected peripherals will be less than 17.5 W (3.5A). |
| Environmental | |
| Temperature | Operating: 32° to 122°F (0° to 50°C) Storage: -4° to 158°F (-20° to 70°C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Construction | |
| Construction | Metal, black finish, vented sides |
| Mounting | Freestanding or surface mountable (mounting hardware included) |
| Dimensions | |
| Height | LOCAL: 0.89 in. (23 mm); REMOTE: 0.89 in. (23 mm) |
| Width | LOCAL: 5.12 in. (130 mm); REMOTE: 5.12 in. (130 mm) |
| Depth | LOCAL: 4.90 in. (125 mm); REMOTE: 4.90 in. (125 mm) |
| Weight | |
| LOCAL: 12.32 oz (350 g); REMOTE: 12 oz (340 g) |
|
| Compliance | |
|
Regulatory Model: M202444001 FCC Part 15 Class B, IC Class B, CE, Intertek® Listed for US and Canada |
|
