Crestron

CTN ZUMMESH-AVBRIDGE-I AV Bridge – Wireless Control Integration Module, International

CTN ZUMMESH-AVBRIDGE-I AV Bridge – Wireless Control Integration Module, International

MFR: Crestron MPN : ZUMMESH-AVBRIDGE-I
SKU: ZUMMESH-AVBRIDGE-I
$187.50 USD
$187.50 USD
Sale Sold out
Shipping calculated at checkout.

Fast & Reliable Shipping

Ships in 3–5 business days

Secure Checkout

Your information is protected

Expert Support

Call, chat or email our team

View full details
Product Information

Interfaces a Zūm® commercial lighting system with a local AV control system (RS‑232 or USB). Allows AV system control using Zūm wireless AV keypads in a Zūm commercial room lighting system. Enables basic control of an AirMedia® Receiver using an AirMedia Wireless Keypad.

Overview

The AV Bridge (ZUMMESH‑AVBRIDGE‑I) is a wireless control integration module designed for use with Crestron® Battery‑Powered Wireless AV Keypads (ZUMMESH‑KPAVBATT) and Zūm® Wireless Battery‑Powered Occupancy and Vacancy Sensors (ZUMMESH‑PIR‑OCCUPANCY‑BATT and ZUMMESH‑PIR‑VACANCY‑BATT). It enables simple control of AV and other functions by connecting the keypads and sensors to a control system, computer, or Crestron AirMedia® Presentation System device.1 A simple, brand‑agnostic command set allows for integration with both Crestron and third‑party systems via RS‑232 or USB.2 The AV Bridge pairs wirelessly with up to eight keypads and eight sensors in a room without requiring a separate wireless gateway.3

AV Control System Integration, Control, and Monitoring
The AV Bridge allows a Zūm commercial lighting system to integrate with an AV control system. Connecting the systems enables bi-directional control and monitoring between the Zūm Mesh wireless devices in a Zūm commercial lighting system and the components in the AV control system.

Surface Mount
The Zūm AV Bridge is designed to be mounted to a wall or other flat surface. Care should be taken when positioning the device to avoid interference from nearby RF devices, obstructions, and metal surfaces.

Features

Key Features
  • Enables the use of Crestron® battery‑powered wireless AV keypads with a Crestron control system
  • Allows Zūm® occupancy and vacancy sensors to be used in non‑Zūm applications
  • Facilitates basic control of an AirMedia® Presentation System1
  • Connects the keypads and sensors to a control system or computer
  • Interfaces a complete Zūm commercial lighting system with a local AV control system
  • Choice of RS‑232 or USB interface
  • Simple, brand‑agnostic command set
  • Zūm Mesh peer‑to‑peer wireless technology
  • Ultra‑compact, surface mount design
  • 12‑24 VDC or USB powered

Specifications

Wireless Communications
RF Transceiver Zūm Mesh 2‑way RF, 2.4 GHz ISM Channels 15, 20, 25, or 26 (channel auto‑selected), IEEE 802.15.4 compliant, AES‑128 encryption<
Range 50 ft (15 m) to nearest peer‑to‑peer mesh network device(s), subject to site‑specific conditions and individual device capabilities3
Note: A maximum of 32 Zūm Mesh wireless devices is permitted per room inclusive of a maximum of 8 battery‑powered keypads and 8 occupancy or vacancy sensors.
Wired Communications
RS-232 2‑way serial up to 115.2k baud (TD/RD only)
USB USB 1.1, appears as a virtual COM port on the host computer

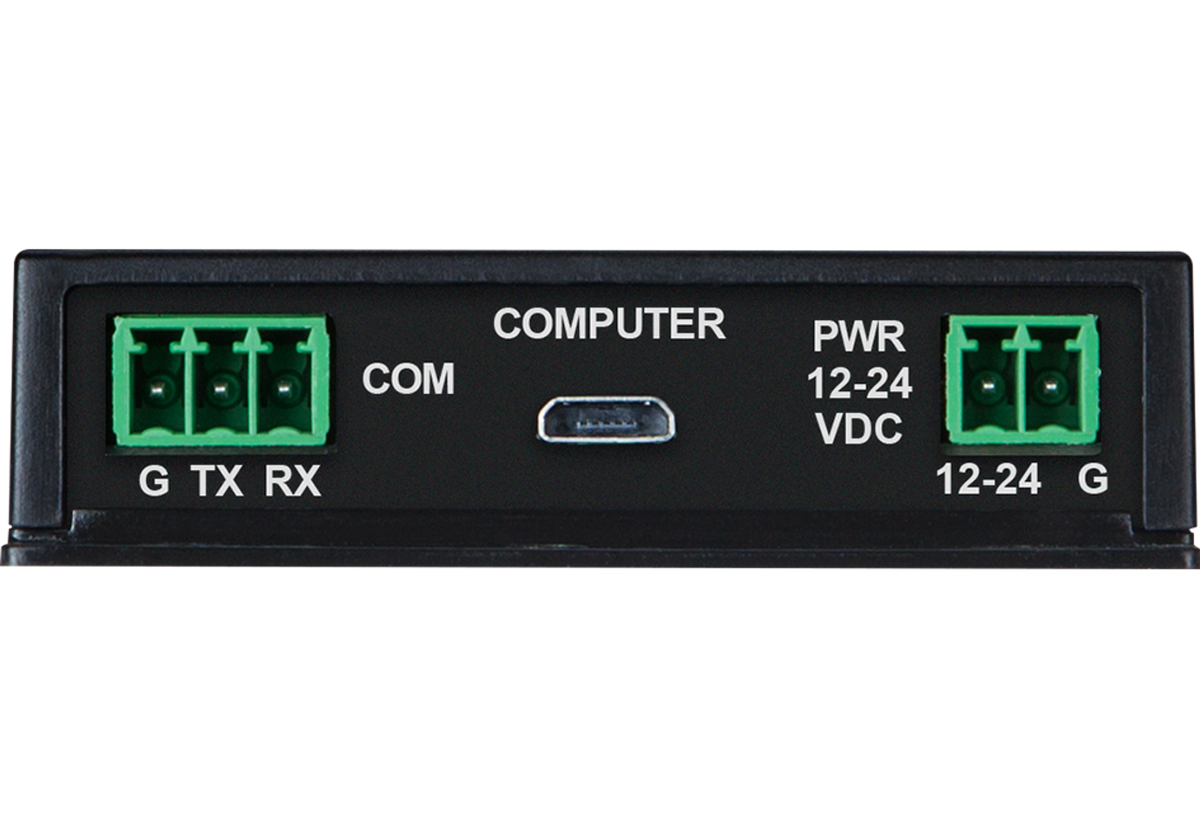

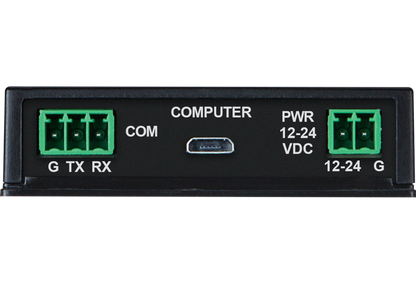

Connectors
COM (1) 3‑pin 3.5 mm detachable terminal block;
Bidirectional RS‑232 port
COMPUTER (1) USB Type Micro‑B connector, female;
USB 1.1 device port4;
3 ft (0.91 m) USB micro‑B male to A male cable included
PWR 12-24 VDC (1) 2‑pin 3.5 mm detachable terminal block;
12‑24 VDC power input

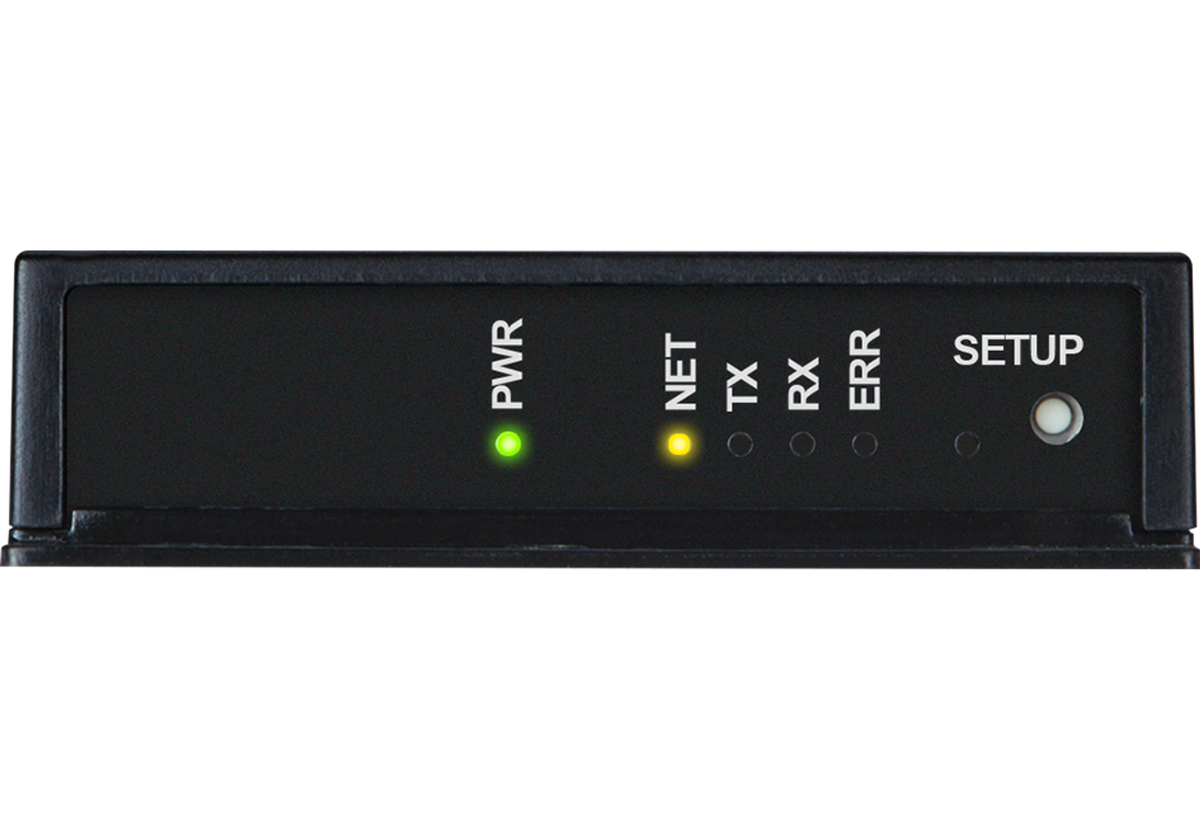

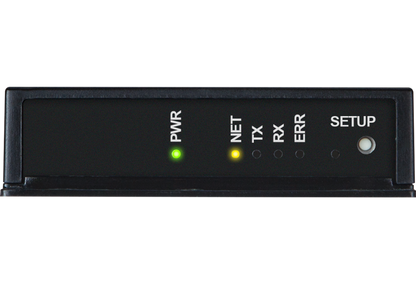

Controls & Indicators
PWR (1) Bi‑color LED;
Amber indicates device is booting;
Green indicates device is operating
NET (1) Amber LED;
Indicates Zūm Mesh wireless network activity
TX (1) Green LED;
Indicates serial data transmission
RX (1) Green LED;
Indicates serial data reception
ERR (1) Red LED;
Indicates an error condition
SETUP (1) Red LED and (1) recessed pushbutton;
For room setup and factory reset
Power
Power Options 12‑24 VDC or USB4
Power Consumption 1 W
Environmental
Temperature 32° to 113°F (0° to 45°C)
Humidity 10% to 90% RH (noncondensing)
Heat Dissipation 3 BTU/hr
Construction
Plastic, black, (2) integral surface mounting flanges, vented sides
Dimensions
Height 0.69 in (18 mm)
Width 2.58 in (66 mm)
Depth 2.49 in (64 mm)
Weight
1.6 oz (45 g)
Compliance
CE, ETL, IC, FCC Part 15 Class B digital device
