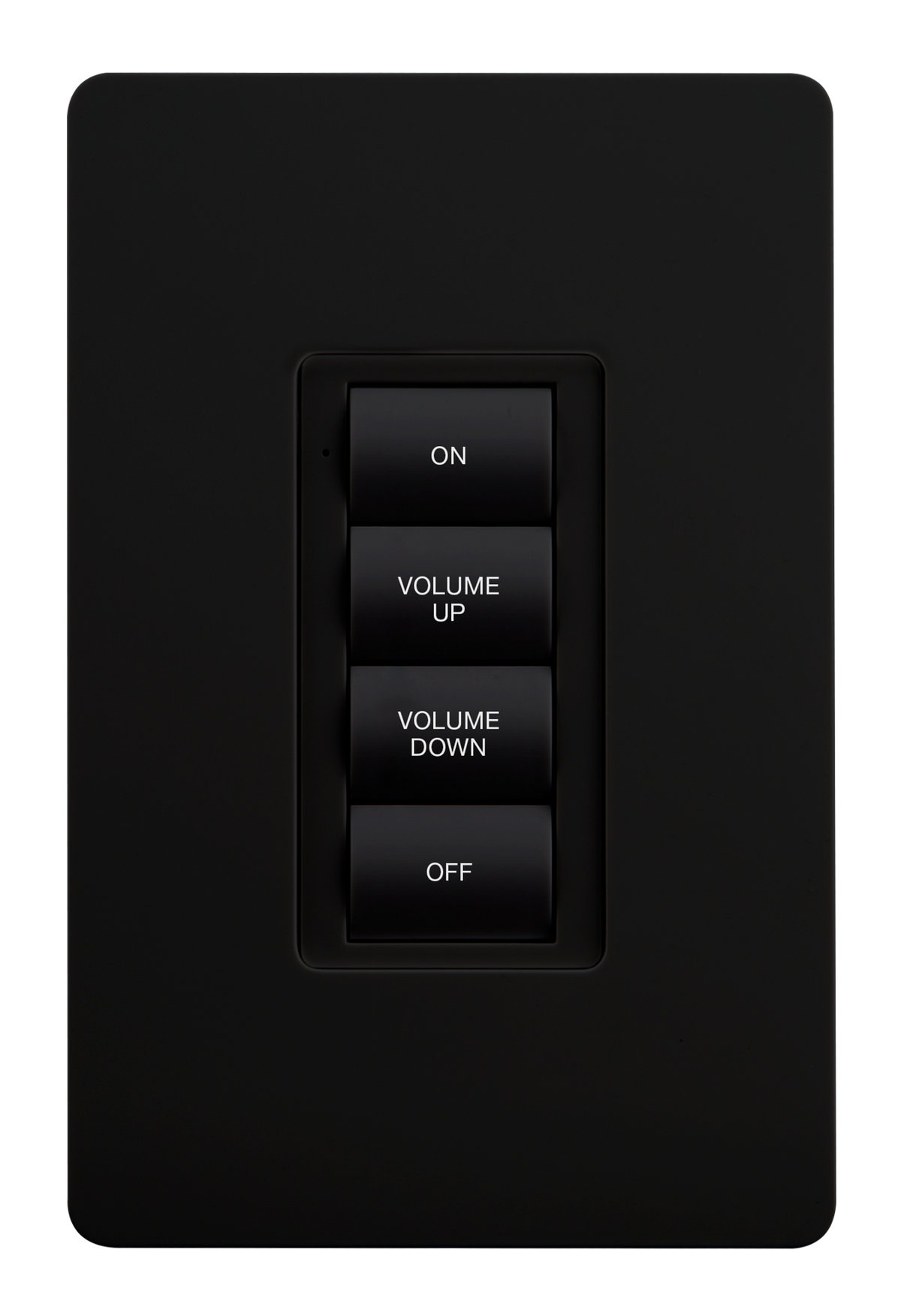

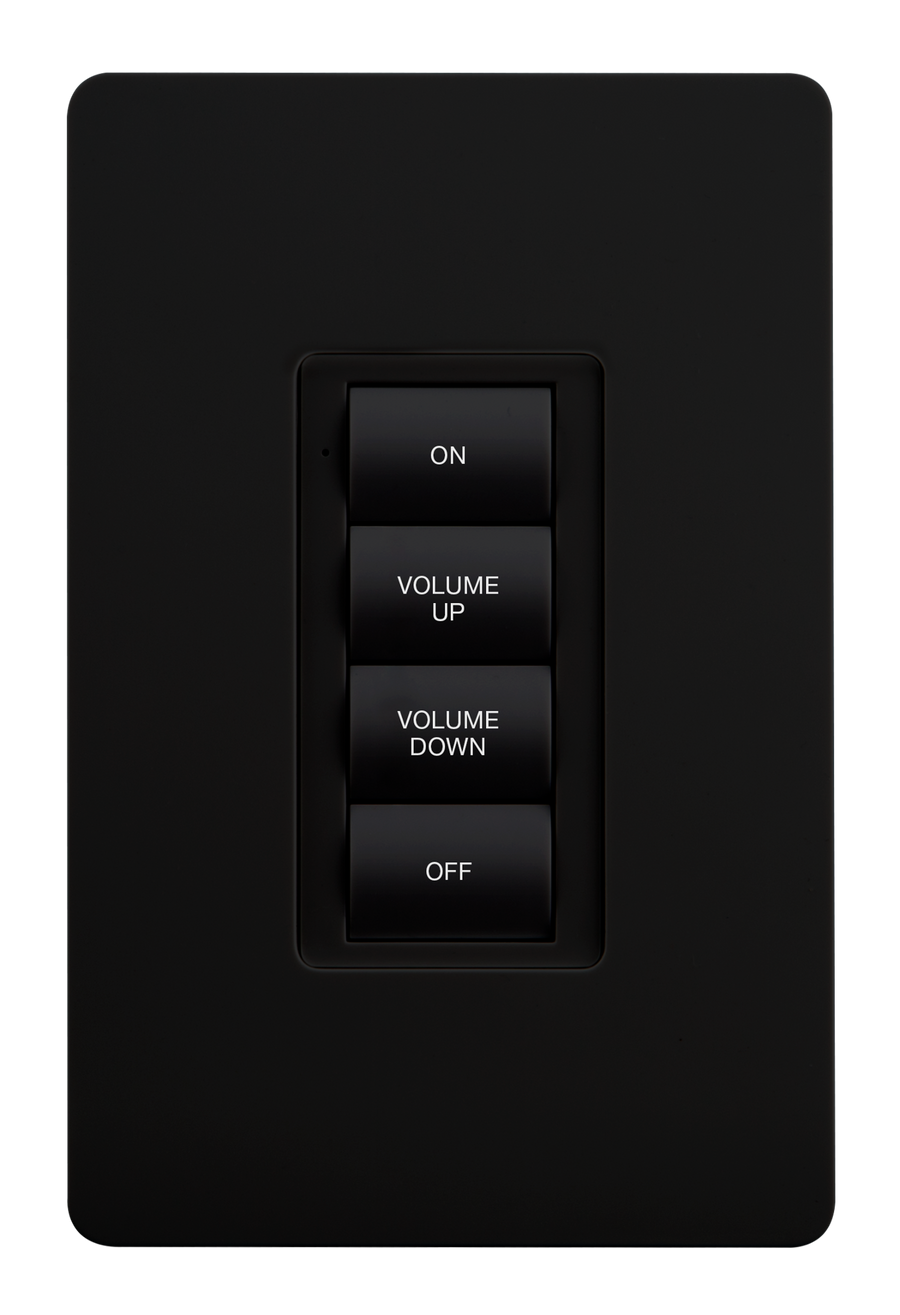

A slim, battery-powered wireless keypad designed to provide basic control of an AirMedia® Presentation System. Faceplate sold separately.
Overview
The AirMedia® Wireless Keypad (ZUMMESH-KP10AMBATT Series) is an optional accessory for an AirMedia Presentation System.1 It can be mounted virtually anywhere in the room to enable basic control of the system. Specifically, it provides on/off power control and up/down audio volume control of the display device connected to the system.2
Its slim design allows the keypad to be attached directly to any suitable flat surface using screws or two-sided adhesive tape. It can also be mounted to a standard electrical box, either alone of alongside other decorator style devices. Complete installation requires a decorator style faceplate (Crestron FP-G series or equivalent).
The ZUMMESH-KP10AMBATT is battery powered and completely wireless. It can operate for five years or more on a single lithium coin cell battery (included). Connection to the presentation system requires an AV Bridge (ZUMMESH-AVBRIDGE, sold separately), which connects to the AM device via USB and serves as a wireless transceiver for the keypad.1,3
Features
Key Features
- A wireless keypad for control of an AirMedia® Presentation System [3]
- Provide power and volume control of the display device connected to the system 2
- Mounts directly to any flat wall surface with no holes or box required
- Allows for mounting to a single-gang or multi-gang electrical box
- Connects to the AirMedia system via the ZUMMESH-AVBRIDGE (sold separately) 3
- Operates for five years or more on a single lithium battery (included)
- Available in smooth white or black finishes
- Matching decorator-style faceplate available separately
Specifications
| Controls & Indicators | ||
| Buttons | (4) Pushbuttons labeled as follows: ON, VOLUME UP, VOLUME DOWN, OFF; ON/OFF controls the display device power; VOLUME UP/DOWN controls the display device audio volume2 |
|
| Feedback | (1) Bi-color LED, green indicates a button press, red indicates a low battery condition when a button is pressed; also used for wireless setup and factory reset | |
| Wireless Communications | ||
| RF Transceiver | Zūm® Mesh 2-way RF, 2.4 GHz ISM Channels 15, 20, 25, or 26 (channel auto-selected), IEEE 802.15.4 compliant, AES-128 encryption 3 | |
| Range (typical) | 50 ft (15 m), subject to site-specific conditions | |
| Note: A ZUMMESH-AVBRIDGE is required. | ||
| Power | ||
| Battery | (1) CR2032 3 Volt lithium coin cell disposable battery (included) | |
| Battery Life | ≥5 years | |
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Construction | ||
| Composition | Plastic; black or white smooth finish | |
| Surface Mounting | Adheres to a smooth, flat wall surface using double-sided tape (included) or screws (not included) | |
| Wall Box Mounting | Mounts to a 1-gang (or larger) US electrical box | |
| Faceplate | Requires a decorator-style faceplate (sold separately) | |
| Dimensions | ||
| Height | 4.26 in (109 mm) | |
| Width | 1.76 in (45 mm) | |
| Depth | 0.42 in (11 mm) | |
| Weight | ||
| 2.3 oz (65 g) | ||
| Compliance | ||
| UL Listed for US & Canada, IC, FCC Part 15 Class A digital device | ||
