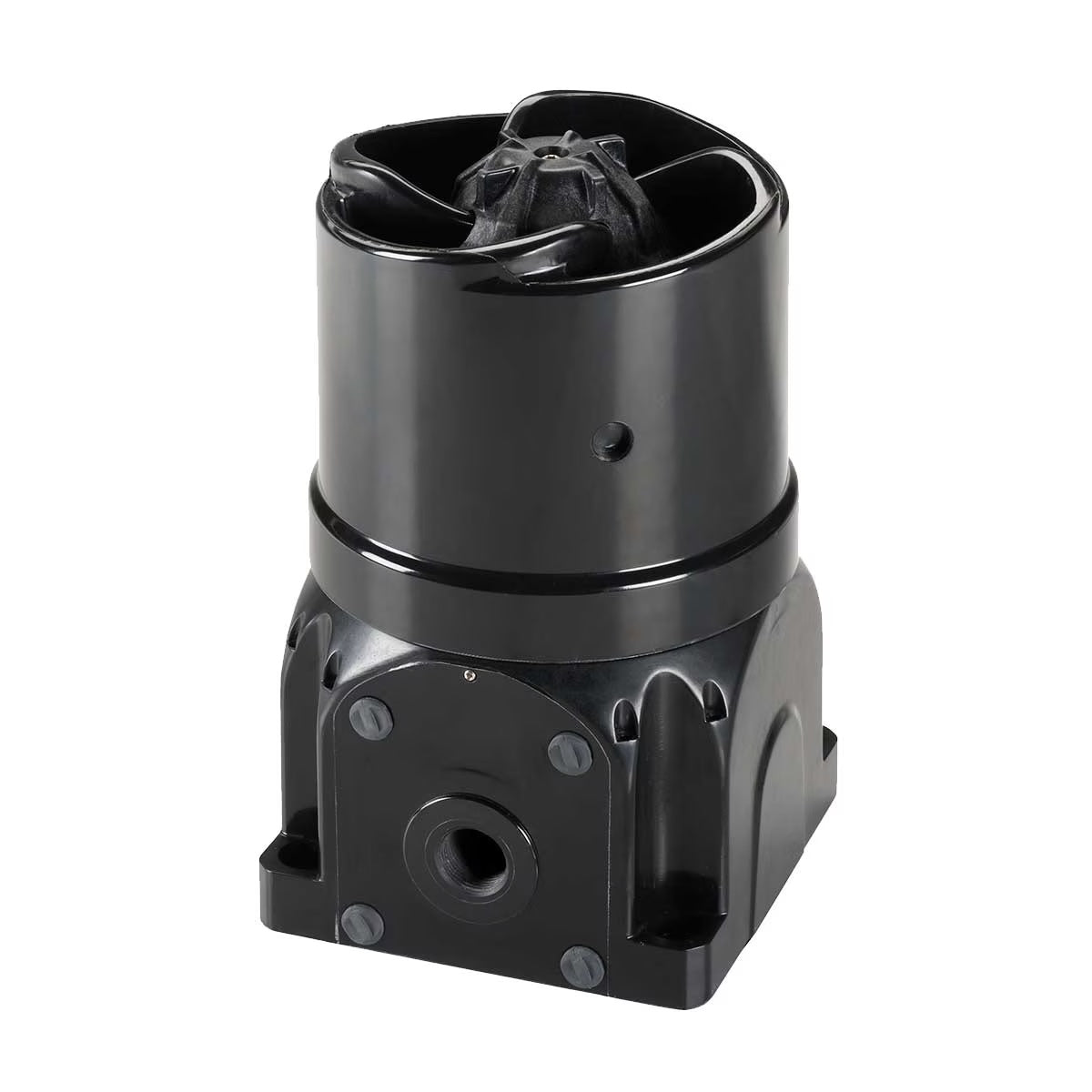

G-SND-MV-D Global Series® Hazardous Location Sounders

Federal Signal Global Series® Sounders are designed for rugged industrial environments and general alarm applications. Standard (15 W) models are certified for gas Group IIC environments. All models are available with explosion-proof Ex d surface, Ex d trunnion, or Ex de surface mounts. Ex d surface and trunnion mount models come standard with (2) M20 entries. The increased safety Ex de surface mount models include separate terminal chambers for quick field termination or pass-through wiring and include (3) M20 entries in a standard configuration.

The Global Series Sounder offers the flexibility of being wired to perform two separate functions. Users can select a single tone via a rotary switch, which will sound the chosen tone once power is supplied. Alternatively, multiple tones can be selected remotely by choosing the appropriate combination of inputs. This feature allows a unique sound to match a specific alarm condition or to escalate an alarm condition.

Standard (15 W) Global Series Sounders can be integrated with all other Global Series audible and visual products to create custom configurations tailored to specific needs. These custom configurations can be ordered directly from the factory. Optional coupling kits are also available, allowing limited field fixturing.

Features

• Supports three operational voltages: 24 Vdc, 120 Vac, and 230 Vac
• Optional ratcheting stainless steel U-bracket trunnion mount with mounting hardware (field installation required)
• Standard (15 W) models feature 15 selectable Tones
• Non-metallic, Glass Reinforced Polyester (GRP) corrosion-resistant design, available in Red or Black

• Gain control
• Field customizable legend plates available
• Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red and Yellow
• Two M20 entries standard on Ex d models, (3) M20 entries standard on Ex de models
• Type 4X, IP66 enclosure
• UL Fire Listed (24VDC operating voltage ONLY)
• UKEX certified
