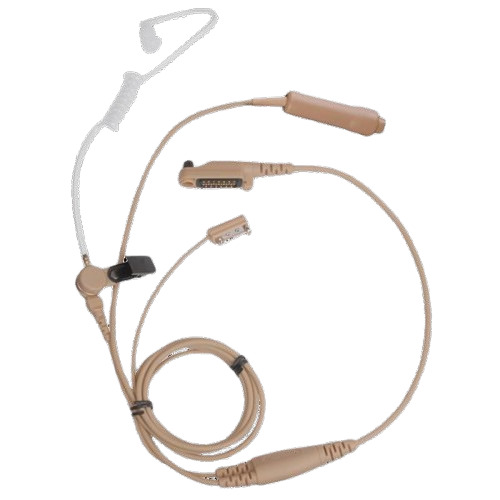

Hytera EAN21-P 3-wire Surveillance Earpiece with Transparent Acoustic Tube, beige (for HP6, HP7 & HP7 UL913)

The Hytera EAN21-P is a professional 3-wire surveillance earpiece designed for discreet audio communication with supported two-way radios. Featuring a flexible transparent acoustic tube, separate microphone, and PTT (push-to-talk) control, this earpiece is ideal for security personnel, law enforcement, event staff, and other users who require unobtrusive radio communication. The detachable transparent acoustic tube offers comfort during long hours of use and maintains personal hygiene by allowing easy replacement. Built with an original Hytera verification chip, the EAN21-P ensures compatibility with a wide range of Hytera radios and audio accessories while delivering clear audio performance.

Key Features

• Professional 3-wire surveillance earpiece with a transparent acoustic tube in beige for Hytera HP6, HP7, and HP7 UL913 radios (Special Order).
• Separate speaker, microphone, and Push-to-Talk (PTT) button for clear and reliable communication.
• Flexible transparent acoustic tube provides discreet, comfortable all-day wear.
• Detachable acoustic tube allows easy replacement and improved hygiene.
• Compatible with Hytera handheld radios equipped with a 13-pin accessory connector.
• Supports VOX (Voice-Operated Transmission) when enabled on the compatible radio.

Specifications

• Model: EAN21-P.
• Compatible Radios: Hytera HP5, HP6, HP7, PD6 Series, PDC680, PDM680, PTC680, Z1p, and PT590 (13-pin accessory port).
• Connector Type: 13-pin radio connector.
• Microphone Sensitivity: -42 ±3 dB @ 1 kHz (3.0 V, 2.2 kΩ).
• Speaker Power: 10 mW (rated), 30 mW (maximum).
• Speaker Impedance: 220 Ω ±15% @ 1 kHz.
• VOX Support: Yes (when enabled on the radio).
• Push-to-Talk (PTT): Yes.
• Weight: Approximately 65 g (2.29 oz).
• Operating Temperature: -20°C to +60°C (-4°F to +140°F).
• Storage Temperature: -20°C to +80°C (-4°F to +176°F).
• Ingress Protection: IP54 (dust and splash resistant).

Package Includes

• EAN21-P 3-Wire Surveillance Earpiece.
• Transparent Acoustic Tube.
• Push-to-Talk (PTT) Button with Clip.
• 13-pin Connector Cable.
• User Instructions.
