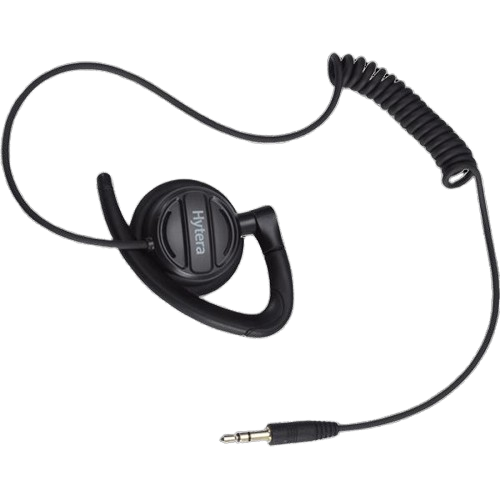

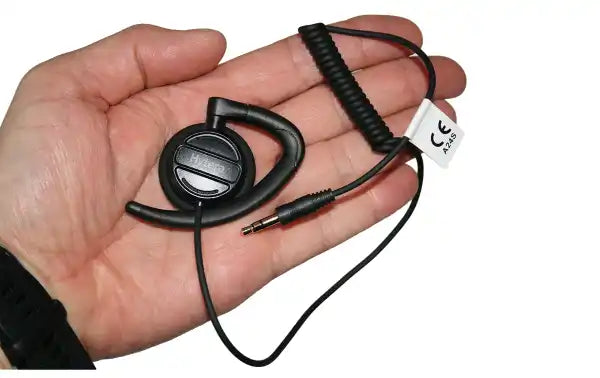

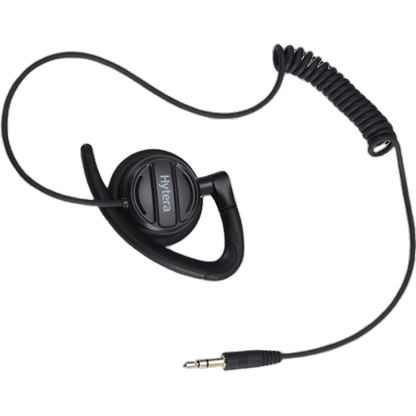

Hytera EH-02 Receive-Only Swivel Earpiece used with ACN-01 ACN-02 ACN-02P ACM-01 ACS-01 ACN-05

The Hytera EH-02 is a receive-only earpiece designed for comfortable, everyday professional use. Featuring an adjustable ear hook with a swivel speaker, the EH-02 provides a secure and flexible fit for extended wearing while delivering clear and reliable audio output. With its lightweight construction and standard 3.5mm connector, the EH-02 is ideal for users who require discreet audio reception when paired with a compatible PTT and microphone cable or remote speaker microphone.

Key Features

• Receive-only swivel earpiece designed for use with the ACN-02P controller cable.
• Adjustable ear hook provides a secure and comfortable fit.
• Swivel speaker allows optimal positioning for clear audio.
• Standard 3.5 mm audio plug for compatibility with supported accessories.
• Lightweight design ensures comfort during extended use.
• Delivers clear audio performance for professional communication.

Specifications

• Model: EH-02.
• Accessory Type: Receive-Only Adjustable Earhook Earpiece.
• Audio Connector: 3.5 mm Audio Plug.
• Push-to-Talk (PTT): None.
• VOX Support: None.
• Emergency Key: None.
• Speaker Rated Power: 50 mW (Maximum: 100 mW).
• Speaker Impedance: 150 Ω ±15% @ 2.0 kHz.
• Speaker Frequency Response: 115 ±3 dB @ 1 kHz (50 mW).
• Weight: 16 g (≈ 0.04 lb).
• Ingress Protection: Not Rated.
• Operating Temperature: -20°C to +60°C.
• Storage Temperature: -40°C to +85°C.

Compatibility Notes

• The EH-02 is a receive-only earpiece and requires a compatible PTT and microphone controller cable or remote speaker microphone for operation.
• Designed for use with the ACN-02P controller cable.
• Not intended for standalone use.
