Hytera EHS16 C-Earpiece with Speaker&MIC(RoHS) BD3, PD3, PNC370

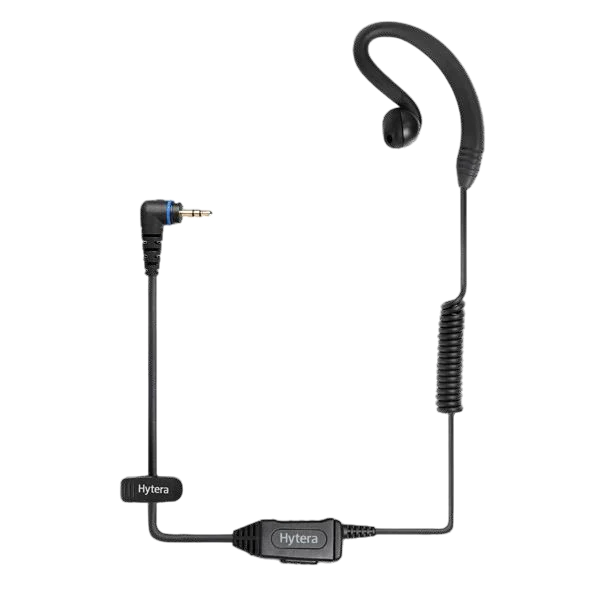

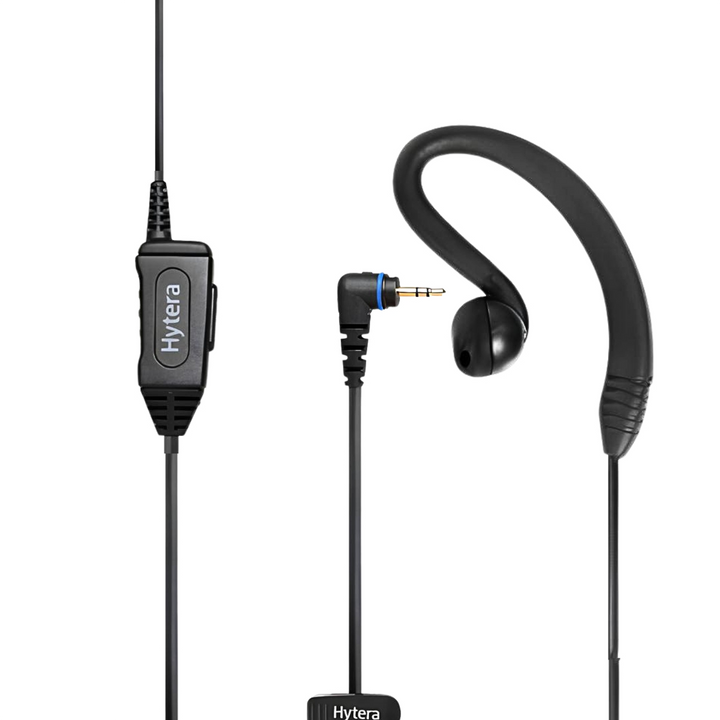

The Hytera EHS16 is a compact and lightweight C-style earpiece designed for clear, hands-free communication in professional radio environments. It features an in-line push-to-talk (PTT) button and integrated microphone, allowing users to communicate quickly and efficiently while keeping their hands free. EHS16 is ideal for everyday use in retail, hospitality, logistics, and security applications. Its secure ear loop design ensures comfort during extended wear.

Key Features

• C-style ear loop design provides a secure and comfortable fit for extended wear.
• Integrated in-line Push-to-Talk (PTT) button enables instant communication.
• Built-in microphone delivers clear voice transmission.
• Lightweight design, weighing approximately 35 g, for all-day comfort.
• Equipped with a standard 2.5 mm connector for compatible radios.
• Durable construction designed for daily professional use.

Specifications

• Model: EHS16.
• Accessory Type: C-Style Earpiece with Push-to-Talk (PTT) and Microphone.
• Weight: Approximately 35 g.
• Color: Black.
• Push-to-Talk (PTT): Yes.
• VOX Support: None.
• Emergency Key: None.
• Connector: 2.5 mm.
• Microphone Sensitivity: -42 ±3 dB @ 1 kHz, 2.0 V, 2.2 kΩ (0 dB = 1 V/Pa).
• Speaker Power: 10 mW (rated), 30 mW (maximum).
• Speaker Impedance: 32 Ω ±15% @ 1 kHz.
• Speaker Frequency Response: 100 ±3 dB @ 1 kHz at 0.179 V.
• Ingress Protection: Not Rated.
• Operating Temperature: -20°C to +60°C.
• Storage Temperature: -40°C to +85°C.

Compatibility

• Compatible Radios: Hytera BD302i, BD352i, PD362i, and PNC370.
