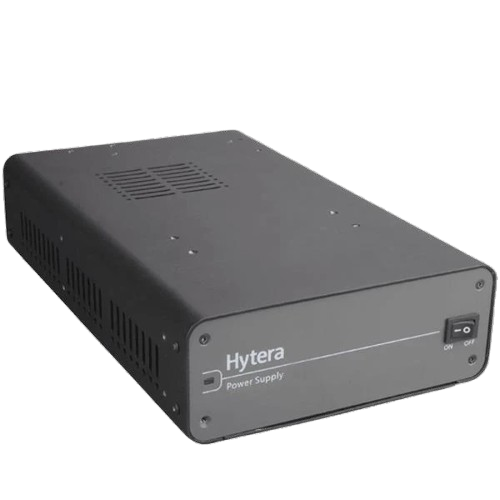

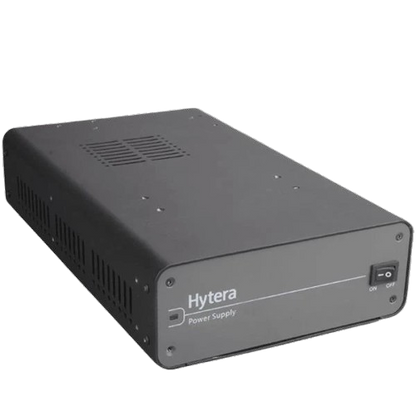

Hytera PS22002 Power Supply for Mobile Radio (220W,Backup Power Supply appliCable)(RoHS)

The Hytera PS22002 External Power Supply is a high-performance 220W power solution designed for Hytera mobile radios and repeater systems. Delivering a stable 13.8V / 16A output from a wide 90–264 VAC input range, this power supply supports both mains operation and lead-acid backup battery modes. In the event of utility power failure, the PS22002 automatically and seamlessly switches to battery operation, ensuring uninterrupted communication performance in mission-critical environments.

Key Features

• High-output 220 W external power supply designed for professional radio systems.
• Supports backup lead-acid battery operation for uninterrupted power.

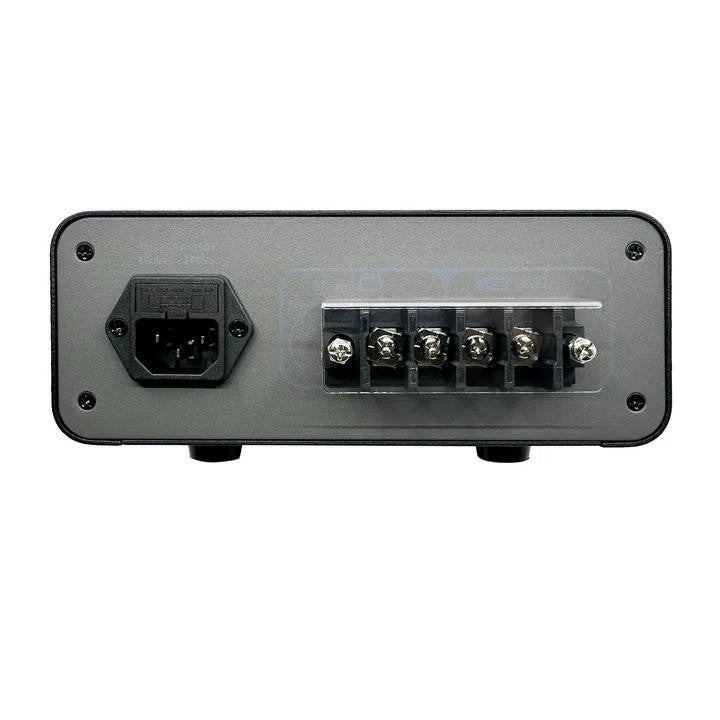

• Features two DC outputs: one for the connected device (such as a repeater) and one for an external power supply.
• Provides a stable 13.8 V DC / 16 A output for mobile radios and repeater systems.
• Wide 90–264 V AC input voltage range supports worldwide deployment.
• Automatically switches from AC mains to backup battery during power outages.
• Designed for long-term continuous operation in professional environments.
• Robust construction ensures reliable performance in industrial applications.

Specifications

• Model: PS22002.
• Output Power: 220 W.
• Output Voltage / Current: 13.8 V DC / 16 A.
• Input Voltage: 90–264 V AC.
• Backup Battery Support: Yes (Lead-Acid Battery).
• Power Switching: Automatic AC Mains / Battery Switchover.
• Dimensions: 11.7 × 6.9 × 3.4 inches.
• Weight: Approximately 14.3 lbs.
• Application: Mobile Radios and Repeater Systems.

Compatibility

• Compatible Repeaters: Hytera RD622i, RD982i, RD982i-S, HR652, and HR1062.
• Compatible Mobile Radios: Hytera MD612i, MD622i, MD652i, MD782i, HM652, HM682, and HM782.
