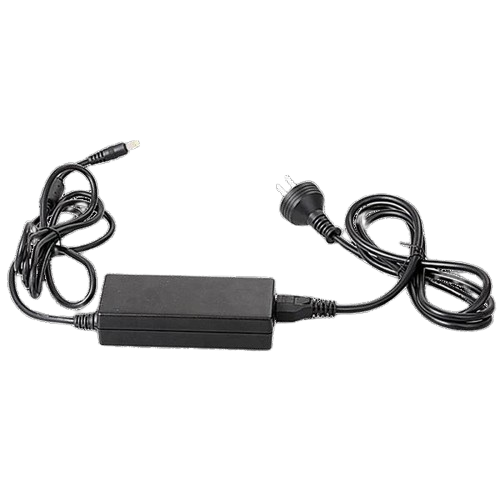

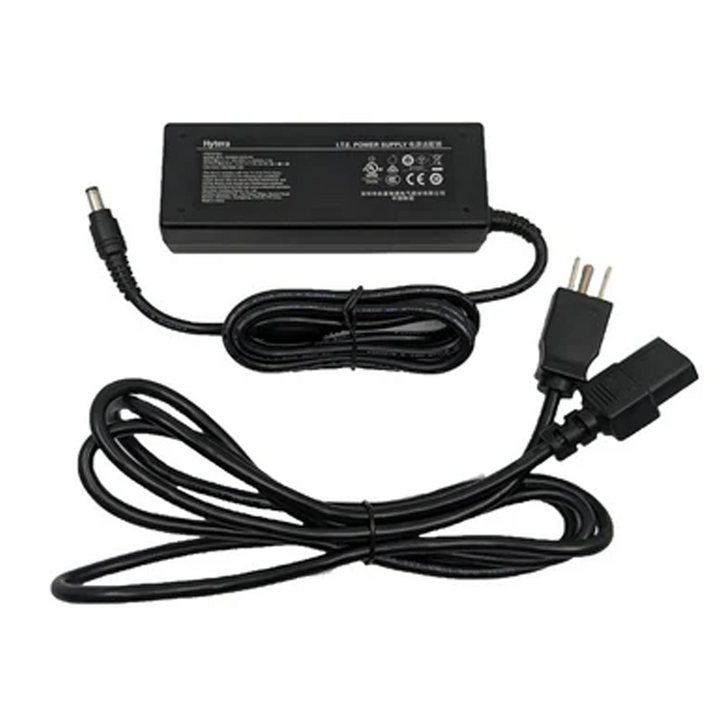

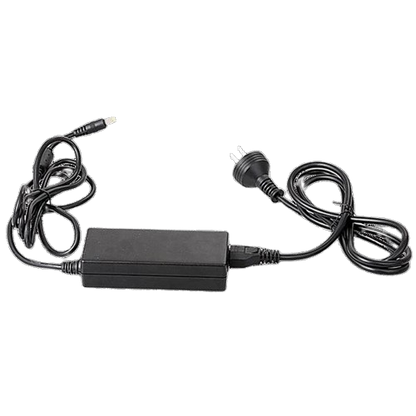

Hytera PS7501 Power Adapter switching MCU MCA05/MCA02/MCA03/MCA08/MCL15

The Hytera PS7501 Power Adapter is a high-capacity desktop switching power supply engineered to deliver reliable and stable power for Hytera multi-unit chargers. With a wide operating voltage range of 90–264 V AC and a robust 12 V / 7 A output, the PS7501 is ideal for professional charging environments such as dispatch centers, control rooms, and enterprise radio fleets. Designed to meet strict quality and safety standards, the PS7501 features replaceable plug support and multiple international certifications, ensuring dependable operation across global deployments. It is fully compatible with a wide range of MCA and MCL series multi-unit chargers.

Key Features

• Desktop switching power adapter designed for Hytera multi-unit charging systems.
• Wide 90–264 V AC input range supports reliable operation in various regions.
• Provides stable 12 V DC / 7 A output for efficient charging performance.
• Replaceable plug design allows flexible installation with compatible plug types.
• Certified to CE, UL, C-Tick, and KC safety standards.
• Designed for reliable operation in professional charging environments.

Specifications

• Model: PS7501.
• Accessory Type: Desktop Switching Power Adapter.
• Operating Voltage: 90–264 V AC.
• Output: 12 V DC, 7 A.
• Plug Type: Optional.
• Replaceable Plug: Yes.
• Certifications: CE, UL, C-Tick, and KC.
• Operating Temperature: 0°C to +45°C.
• Storage Temperature: -40°C to +70°C.

Compatibility

• MCA Series Chargers: MCA02, MCA03, MCA05, and MCA08.
• MCL Series Chargers: MCL15, MCL19, MCL22, MCL23, and MCL30.
