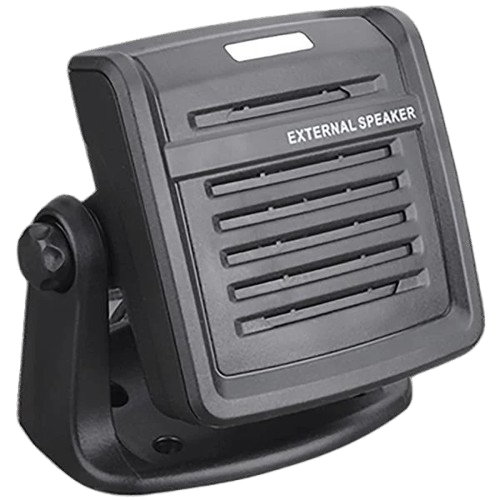

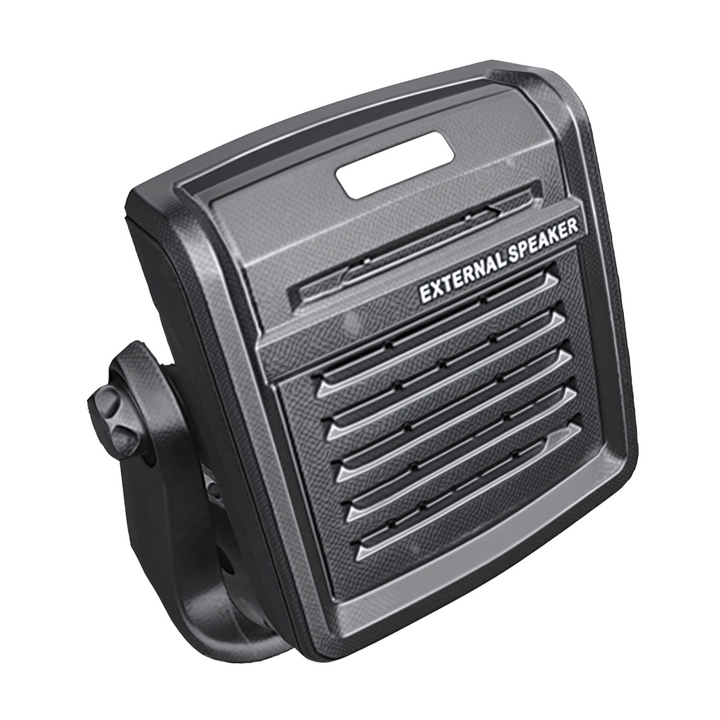

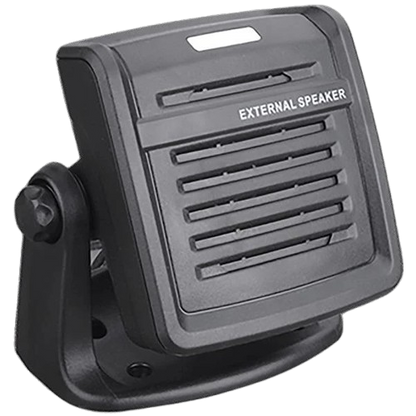

Hytera SM09S1 External Speaker (for CK02, CK03, CK05 and CK10)

The Hytera SM09S1 External Amplified Speaker is a high-performance in-vehicle communication accessory engineered for use with Hytera car kits and mobile radio systems. Featuring a built-in audio amplifier and powerful 15W rated output, the SM09S1 delivers loud, clear voice communication in vehicles operating in noisy environments. Designed for professional fleet, transportation, public safety, and field operations, the SM09S1 includes a flexible adjustable mounting bracket for convenient installation and positioning inside vehicle cabins. Its rugged construction and reliable performance make it an ideal solution for mission-critical mobile communications. The speaker connects through a 4-pin aviation connector and is specifically designed for compatibility with Hytera CK-series vehicle installation kits.

Key Features

• High-power external amplified speaker designed for professional radio communication systems.
• Provides enhanced audio output for clear communication in demanding environments.
• 15 W rated speaker power with up to 20 W maximum output performance.
• 2 m cable length allows flexible installation and positioning.
• 4-pin aviation connector provides secure connection with compatible Hytera car kits.
• Durable black housing designed for vehicle and fixed communication applications.

Specifications

• Model: SM09S1.
• Accessory Type: External Amplified Speaker.
• Dimensions: 155.6 mm × 92.5 mm × 140.2 mm.
• Weight: Approximately 774 g.
• Color: Black.
• Cable Length: 2 m.
• Radio Connector: Car Kit SPK Plug (4-Pin Aviation Connector).
• Speaker Power: 15 W (Rated), 20 W (Maximum).
• Speaker Impedance: 8 Ω ±15% @ 500 Hz.
• Speaker Frequency Response: 88 ±2 dB @800 Hz (1 W/1 m) @ 600, 700, 800, and 900 Hz AVE.
• Ingress Protection: None.
• Operating Temperature: -30°C to +70°C.
• Storage Temperature: -40°C to +85°C.
