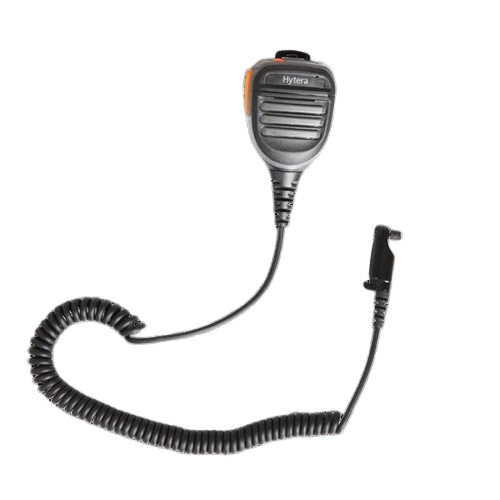

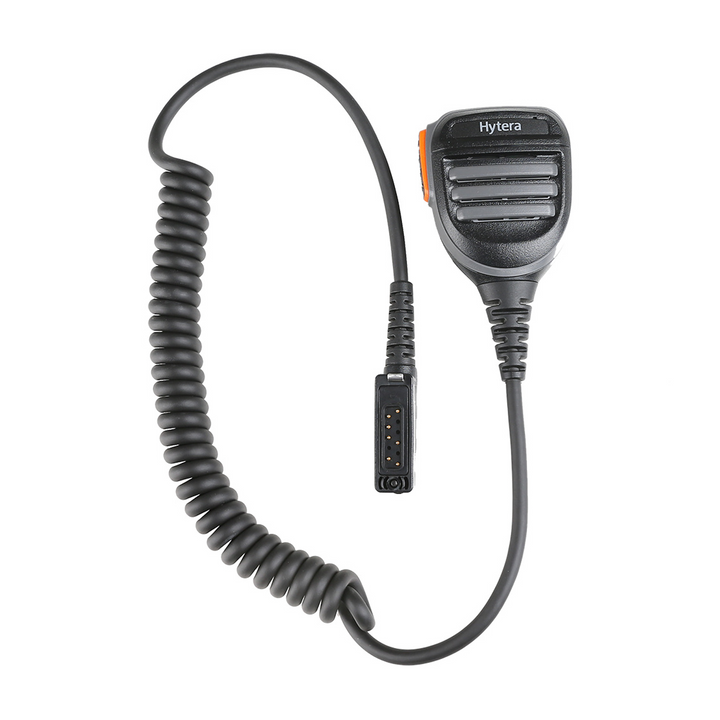

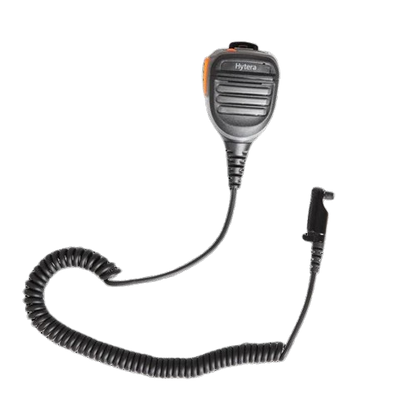

Hytera SM26N1-P Remote Speaker Microphone with Emergency button (IP67) (for HP6, HP7 & HP7 UL913)

The SM26N1-P Speaker Microphone is a compact, rugged, and intrinsically safe remote speaker microphone designed for professionals operating in hazardous and high-risk environments. Built for seamless integration with compatible Hytera portable radios, this microphone delivers clear audio performance and dependable operation when safety and reliability are critical. With an IP67 rating, the SM26N1-P is fully protected against dust ingress and water immersion, making it suitable for use in harsh outdoor and industrial conditions. Its intrinsically safe certification ensures safe operation in environments where flammable gases, vapors, or combustible dust may be present. Equipped with a dedicated emergency alert button and a responsive Push-to-Talk (PTT) key, the SM26N1-P enables rapid communication during emergencies. A durable coiled cable with a 13-pin connector and thumb screw ensures secure attachment to the radio, while the 360° swivel metal clip provides flexible, hands-free mounting on uniforms or gear.

Key Features

• Remote Speaker Microphone with emergency button designed for Hytera HP6, HP7, and HP7 UL913 radios.
• Intrinsically safe design suitable for hazardous and demanding environments.
• IP67-rated protection provides resistance against dust and water immersion.
• Dedicated emergency alert button enables rapid response during critical situations.
• Integrated Push-to-Talk (PTT) button allows quick and reliable communication.
• High-output speaker delivers clear audio performance in noisy environments.
• 13-pin connector with thumb screw ensures secure attachment to compatible radios.
• Coiled cable design provides extended reach and flexible operation.
• 360° swivel metal clip allows convenient and adjustable mounting options.
• Built-in microchip protection supports OEM verification and secure accessory operation.

Specifications

• Model: SM26N1-P.
• Accessory Type: Remote Speaker Microphone.
• Dimensions: 3 × 2.4 × 1.3 inches.
• Weight: Approximately 5.3 oz.
• Cord Length: 5 ft (Fully Extended).
• Color: Black and Gray.
• PTT Key: Yes.
• Emergency Key: Yes.
• Radio Accessory Connector: 13-Pin Connector with Thumb Screw.
• Microphone Sensitivity: -42 ±3 dB @ 1 kHz (0 dB = 1 V/Pa).
• Speaker Power: 2 W (Rated), 3 W (Maximum).
• Speaker Impedance: 20 Ω ±15% @ 1.5 kHz.
• Speaker Frequency Response: 97 ±3 dB @ 1 kHz (2 W / 30 cm).
• Certification: CE, Intrinsically Safe.
• Ingress Protection: IP67.
• Operating Temperature: -22°F to +140°F.
• Storage Temperature: -40°F to +185°F.

Compatibility

• Hytera PD602i.
• Hytera PD602.
• Hytera PD662i.
• Hytera PD662.
• Hytera PD682i.
• Hytera PD682.
• Hytera X1ei.
• Hytera X1e.
• Hytera X1pi.
• Hytera X1p.
• Hytera HP602.
• Hytera HP682.
• Hytera HP702.
• Hytera HP782.
