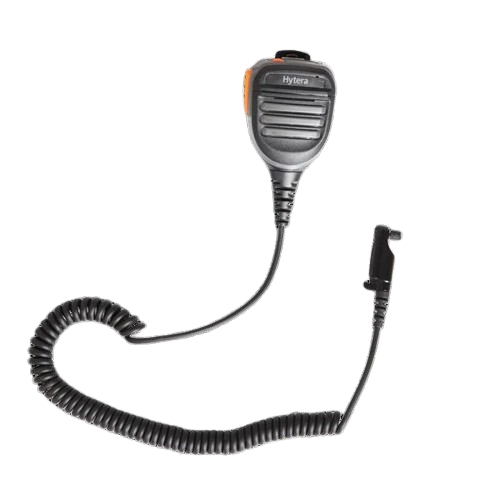

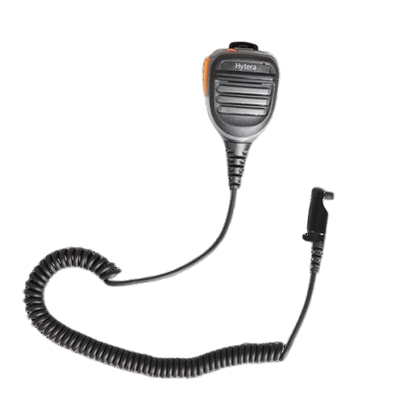

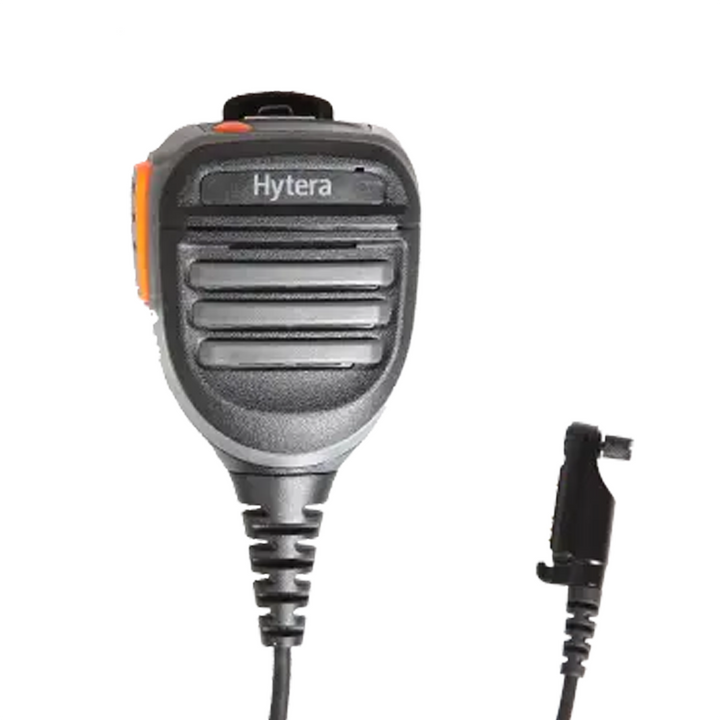

Hytera SM26N2-P Remote Speaker Microphone with Emergency button and 2.5mm audio jack(IP54)(for HP6, HP7 & HP7 UL913)

The SM26N2-P Speaker Microphone is a compact, rugged, and intrinsically safe remote speaker microphone engineered for reliable performance in professional and demanding environments. Designed for seamless integration with compatible Hytera two-way radios, this microphone delivers clear audio, enhanced safety features, and flexible accessory support. With an IP54 rating, the SM26N2-P offers dependable protection against dust and water spray, making it suitable for daily field operations. Its intrinsically safe certification allows safe use in hazardous environments where flammable gases, vapors, or combustible dust may be present—ideal for oil and gas, chemical, utility, and emergency response sectors. The SM26N2-P is equipped with a dedicated emergency alert button for rapid incident notification and an integrated Push-to-Talk (PTT) key for immediate communication without handling the radio. A built-in 2.5mm audio jack supports connection to compatible external earpieces, such as the Hytera EAS03, enabling discreet audio monitoring. Its coiled cable with a 13-pin connector and thumb screw ensures secure attachment, while the 360° swivel metal clip provides flexible, hands-free mounting.

Key Features

• Remote Speaker Microphone with emergency button and external earpiece support for Hytera HP6, HP7, and HP7 UL913 radios.
• Intrinsically safe design suitable for hazardous and demanding work environments.
• IP54-rated protection against dust and water spray.
• Emergency alert button enables quick response during critical situations.
• Integrated Push-to-Talk (PTT) key provides convenient communication control.
• 2.5 mm audio jack allows connection of compatible external earpieces.
• High-output speaker delivers clear audio performance in noisy environments.
• 13-pin connector with thumb screw ensures secure radio attachment.
• Coiled cable design provides extended reach and flexible operation.
• 360° swivel metal clip allows versatile mounting options.
• Built-in microchip protection supports OEM verification and accessory security.

Specifications

• Model: SM26N2-P.
• Accessory Type: Remote Speaker Microphone.
• Dimensions: 3 × 2.4 × 1.3 inches.
• Weight: Approximately 5.3 oz.
• Cord Length: 5 ft (Fully Extended).
• Color: Black and Gray.
• PTT Key: Yes.
• Emergency Key: Yes.
• Audio Accessory Interface: 2.5 mm Audio Jack Socket.
• Radio Accessory Connector: 13-Pin Connector with Thumb Screw.
• Microphone Sensitivity: -42 ±3 dB @ 1 kHz (0 dB = 1 V/Pa).
• Speaker Power: 2 W (Rated), 3 W (Maximum).
• Speaker Impedance: 20 Ω ±15% @ 1.5 kHz.
• Speaker Frequency Response: 97 ±3 dB @ 1 kHz (2 W / 30 cm).
• Certification: CE, Intrinsically Safe.
• Ingress Protection: IP54.
• Operating Temperature: -22°F to +140°F.
• Storage Temperature: -40°F to +185°F.

Compatibility

• Hytera PD602i.
• Hytera PD662i.
• Hytera PD682i.
• Hytera X1ei.
• Hytera X1pi.
• Hytera HP602.
• Hytera HP682.
• Hytera HP702.
• Hytera HP782.
