Hytera SM27W1 Bluetooth Microphone and Speaker for MD782i MD652i NEED TO ORDER Adapter SEPERATELY ADA-01

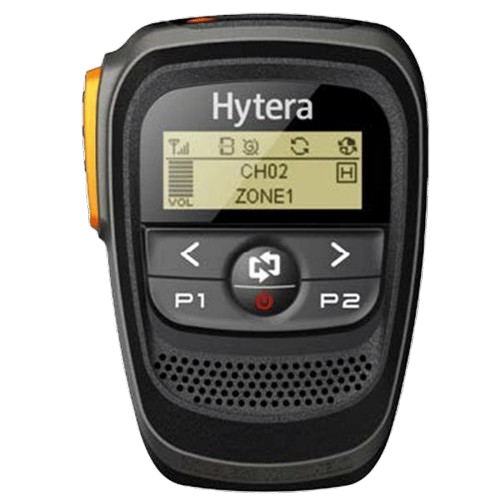

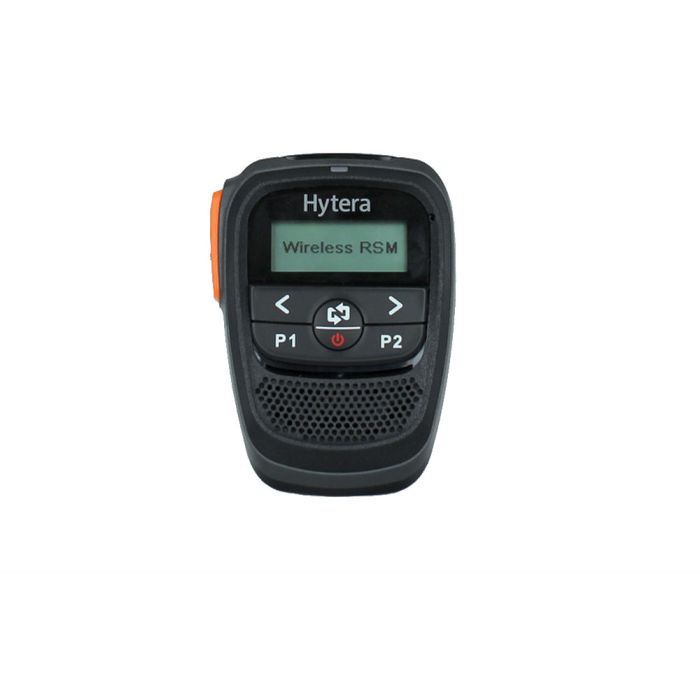

The SM27W1 Bluetooth Speaker Microphone is a wireless remote palm microphone designed to deliver hands-free communication and enhanced mobility when paired with compatible Hytera H-Series mobile radios. It is ideal for professionals who need to stay connected while driving, managing equipment, or operating in fast-paced environments. This compact and rugged accessory features an integrated LCD display and a large Push-to-Talk (PTT) button, providing clear audio and intuitive control up to 32 feet from the connected radio. The SM27W1 allows users to maintain full communication capability without reaching for the radio, improving safety and operational efficiency. The included dash mounting clip doubles as a charging dock and connects to a vehicle’s USB power port using a 39-inch USB to Micro-USB charging cable. The SM27W1 works seamlessly with Bluetooth-enabled Hytera mobile radios and can also be used with non-Bluetooth models when paired with the ADA-01 Bluetooth Adapter. Its durable design and wireless functionality make it well-suited for fleet vehicles, logistics, field service, and other on-the-move applications.

Key Features

• Bluetooth® wireless remote speaker microphone designed for Hytera mobile radio systems.
• Integrated LCD display provides clear visibility of status and control information.
• Dedicated Push-to-Talk (PTT) and emergency buttons for quick communication access.
• Supports clear audio transmission with a wireless range of up to 32 ft from the radio.
• Dash mounting clip functions as a convenient charging base for vehicle installations.
• USB-powered charging capability supports flexible in-vehicle operation.

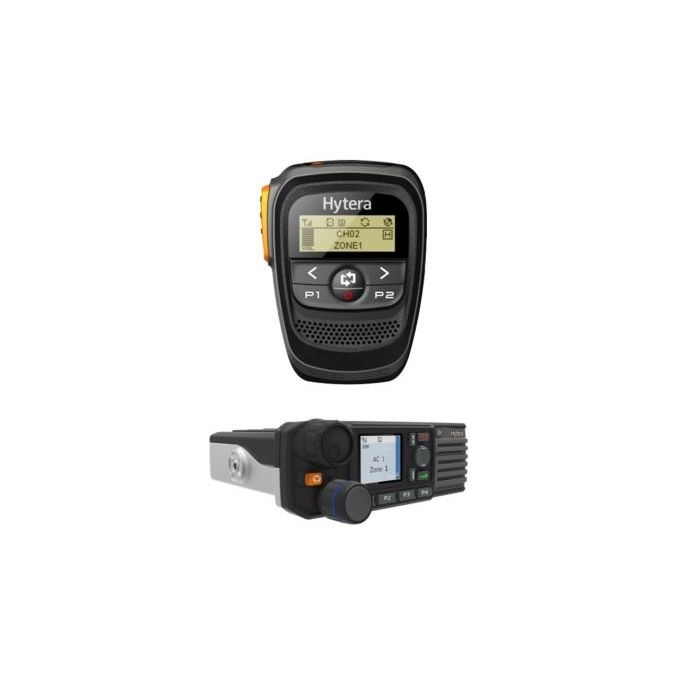

• Compatible with both Bluetooth-enabled and non-Bluetooth Hytera mobile radios.
• Compact and rugged design suitable for professional vehicle environments.

Specifications

• Model: SM27W1.
• Accessory Type: Bluetooth® Remote Speaker Microphone.
• Dimensions: 3.4 × 2.5 × 1.7 inches.
• Weight: Approximately 4.2 oz.
• Color: Black.
• PTT Key: Yes.
• Emergency Key: Yes.
• Microphone Sensitivity: -42 ±3 dB @ 1 kHz (0 dB = 1 V/Pa).
• Speaker Power: 2 W (Rated), 2.5 W (Maximum).
• Speaker Impedance: 4 Ω ±15% @ 1 kHz.
• Speaker Frequency Response: 83 ±4 dB @ 1 kHz (1 W / 100 cm).
• Communication Protocol: Bluetooth® V4.0.
• Bluetooth Range: 26–32 ft.
• Battery Life: ≥15 hours (5/5/90 Duty Cycle).
• Charging Time: ≤3.5 hours.
• Certification: CE, FCC, IC.
• Ingress Protection: IP54.
• Operating Temperature: -4°F to +140°F.
• Storage Temperature: -4°F to +140°F.

Compatibility

• Compatible with Hytera CK03-E and CK02-E Car Kits.
• Compatible with supported Hytera portable radios.
