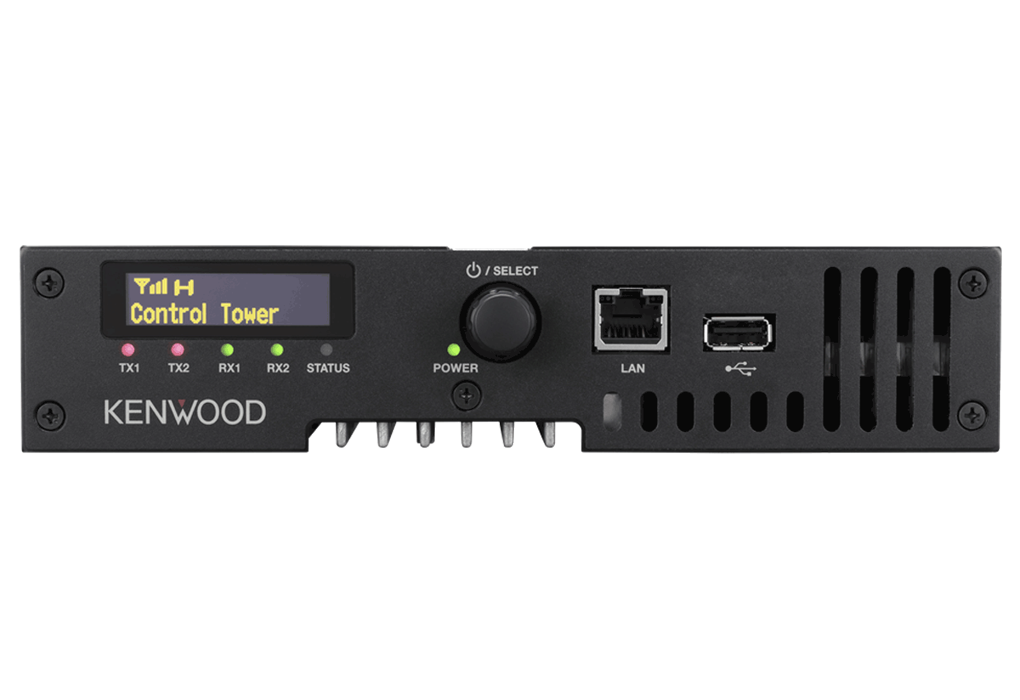

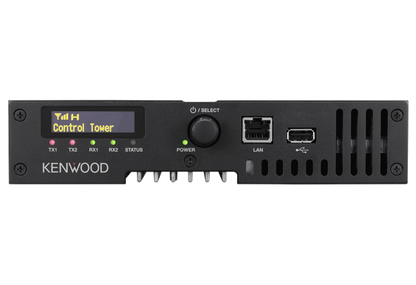

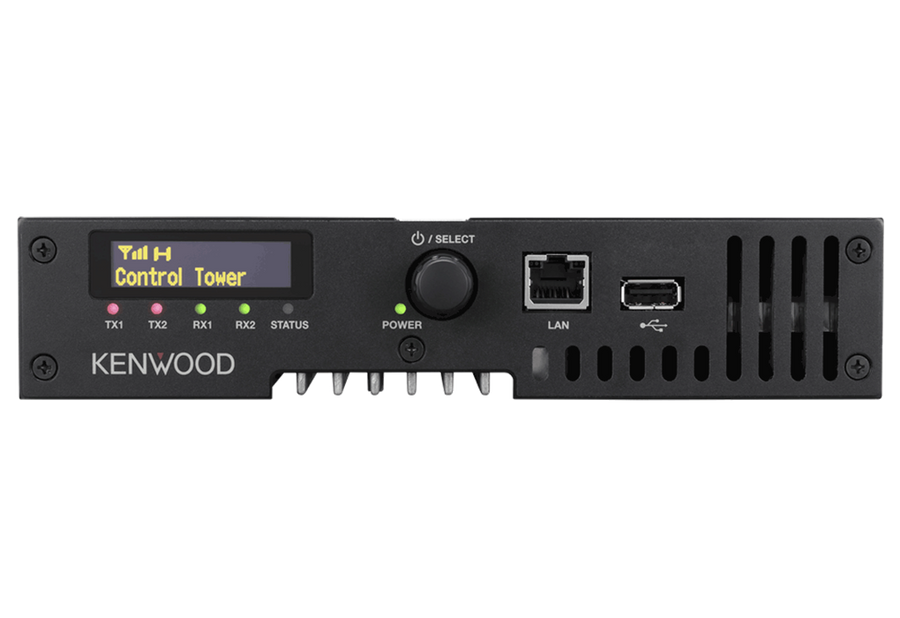

Light and Compact Analog VHF Repeater, 136-174 MHz, 50W RF Output Power, 32 Channels, Large OLED, Thermal-Controlled Cooling Fan, USB Audio Interface, NXDN or DMR Upgradable

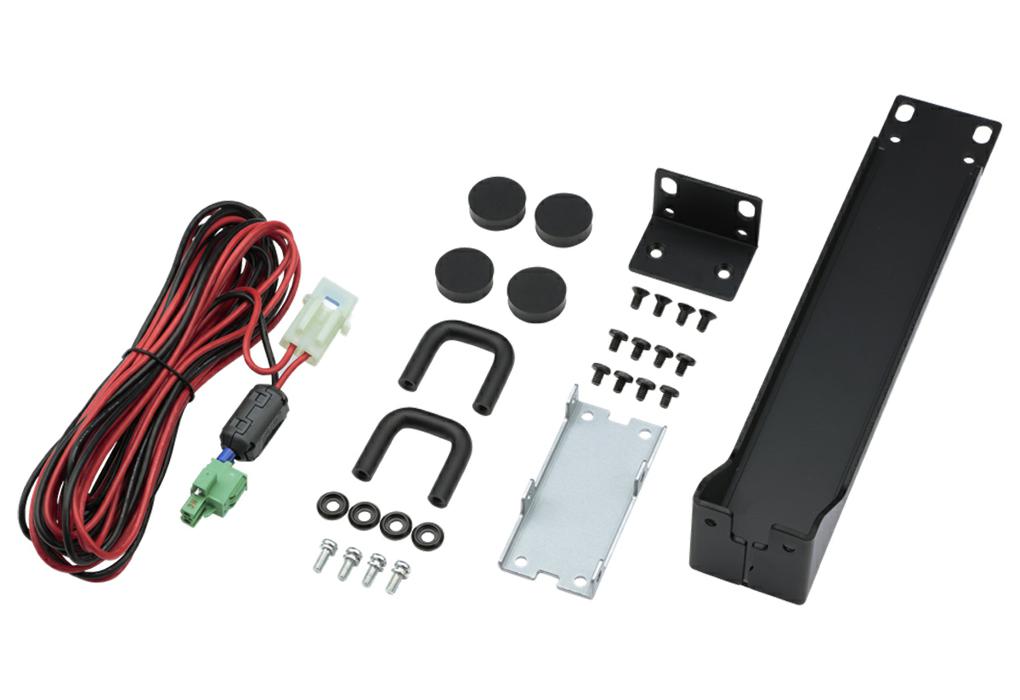

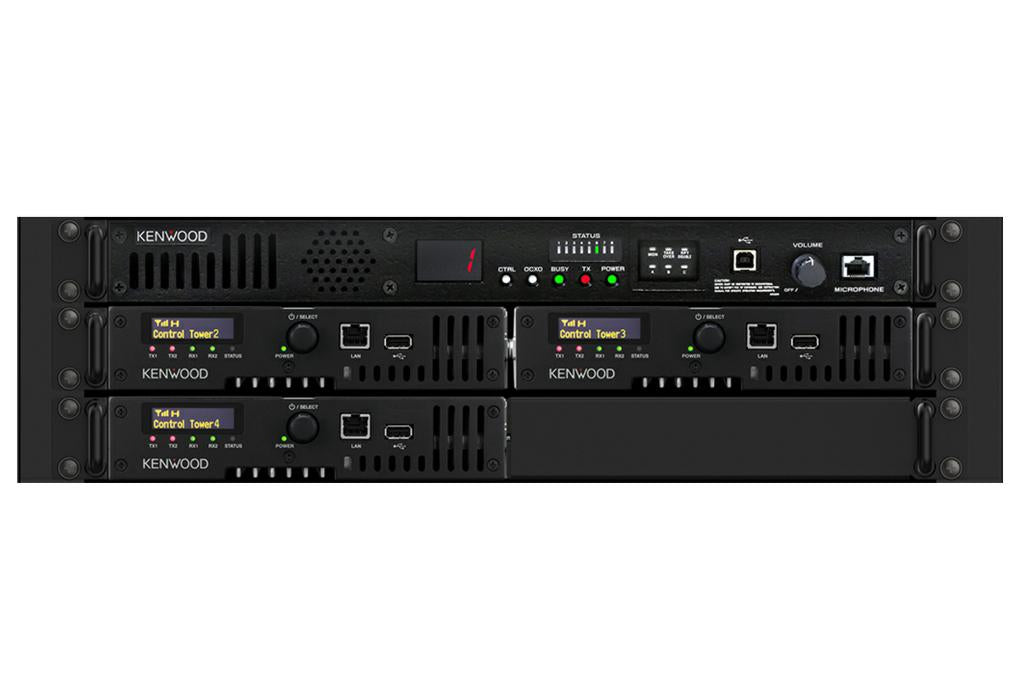

Comes with 19 inch rack mounting brackets, rack handles, DC power cable, dual repeater bracket, rubber pads (qty 4), screws, repeater coupling plate,instruction manual
Features
- 50 ‚ 1 W RF Output Power (Up to 50 W @ 50%, 25 W @ 100% Duty Cycle)
- Light, Compact and Space-Efficient
- 1.71-inch OLED with Icons and Numeric Displays
- Thermal-Controlled Cooling Fan
- External Power Supply
- Up to 32 Channels
- Dual Digital Protocol: DMR Tier II / NXDN Conventional*2, *3(programmable one at a time)
- USB-A Connector Ready for Audio Accessories

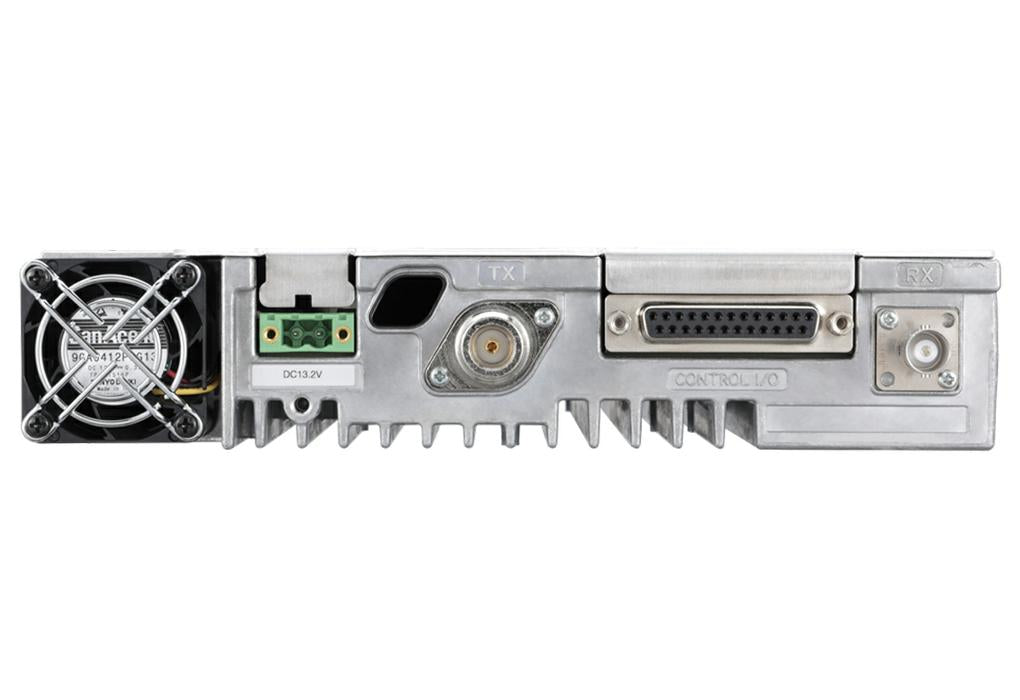

- External In/Out Pin from DB25
- Non-repeat Simplex / Semi-Duplex Mode for Analog and NXDN Digitall*2, *3
- Hot Standby System Redundancy
- Built-in IP Network Adapter
- Unicast and Multicast Call Routing
- SNMP Protocol for Direct Reporting to a Generic System*3
- Supports G.711 Audio Codec (for Test onsole and Third-party Applications)
- IP Remote Management (Monitor / Control / Programming / Test Console)
- Ready for IPIF to External Applications (for IP Console, OTAP) / Voice Logging
- Built-in SIP IF without External IP Console or Gateway (Digital Only)*1, *2, *3
- IP Remote Control Interface (IPRCI)*3
- Enhanced Security (HTTPS)
- CW ID
- Hang Timer
- Multi-Site Conventional IP Network up to 16 Sites (for both Digital and Analog)*2
- IP Networking Compatible with NXR-5000 (NXDN)*2,*3, legacy KTI-3 (NXDN)*2,*3and KTI-5 (DMR)*2
Additional Information
Frequency Range136 - 174 MHz
Channel Capacity32
Analog30* / 25 */ 15 / 12.5 kHz
Digital12.5 / 6.25 kHz
PLL Channel Step2.5 / 3.125 / 5 / 6.25 kHz
Power Supply10.8 - 15.6 V DC
Standby0.6 A
Transmitting12.0 A (Max. power), 9.0 A (25 W)
Operating Temperature-22 °F to + 140 °F (-30 ºC to +60 ºC)
Frequency Stability ± 0.5 ppm
Antenna Impedance50 ©
Dimensions(W x H x D) Projections Not Included, 8.21 x 1.73 x 8.33 in, (208.5 x 44.0 x 211.5 mm)
Weight Radio4.18 lb (1.9 kg)
FCC IDK44513100
ISED Certification282F-513100
