Install the Q Series radio callbox virtually anywhere to maximize manpower efficiency, improve safety or service response times. Deploys easily with no wires, no trenching, and no construction required. Can be used stand-alone using alkaline D batteries or can be powered using external AC adapter.
Position the Ritron DMR Series digital callbox virtually anywhere to maximize manpower efficiency, improve safety and/or service response times. The DMR Series is a purpose-built, ground-up radio design, not a portable radio in a box. Deploys easily no wires, no trenching, no construction required. Can be used standalone using alkaline batteries and the auto turn-off feature, which works to conserve battery life or it can be powered externally for always on applications using an external AC adapter
7 Series callboxes include 60201124 cable assembly, 6-conductor w/ Heyco strain relief for use with external power adapter RPS-EXPO (not included)

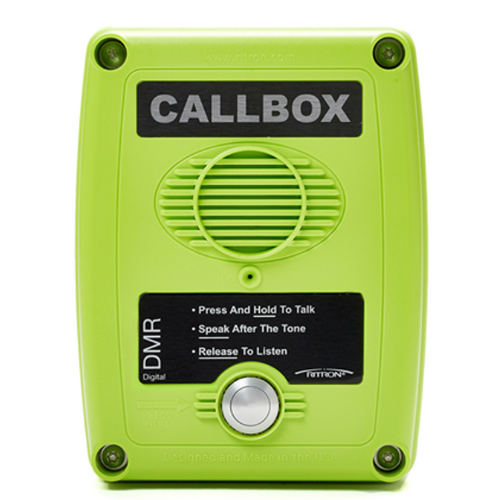

RQX-417DMR UHF Digital Callbox
Built in Antenna
D-Cell battery tray (holds 3 D-Cell batteries not included)
60201124 cable assembly (for external adapter)
Metal wall mount brackets for flat surface
4 screws
Integrated speaker and microphone
Aluminum PTT button
T-25 Torx Bit
The DMR Series has a compact size, durable polycarbonate housing, aluminum vandal resistant push- to-talk button, gasket sealed enclosure, tamper resistant fasteners and internal antenna.The DMR Series callbox provides crisp, clear, long-range 2-way voice communication, permitting co-workers and visitors to communicate with your DMR radio-equipped staff from points near and far - from the plant floor, back door, maintenance garage, gated entry area, delivery dock or the parking lot.
Simple 2-Way Communications
DMR Digital, Voice, Tier-2 Conventional Standard TDMA,12.5KHz Channels
Built in relay control
Recordable stored voice message feature
16 Color Codes / Subscriber Unit ID (SUID) / Destination ID (Individual / Group Selective Call / All-Call B)
Dry-Contact Input for optional sensor trigger Feature e.g. motion / tamper / ground loop magnetometer vehicle detector
UHF 450-470MHz
2 Watts
Wide or Narrow Band Frequency Compatible
Weather resistant housings
D-cell battery tray powered (3 D-Cell batteries, not included), or able to use
