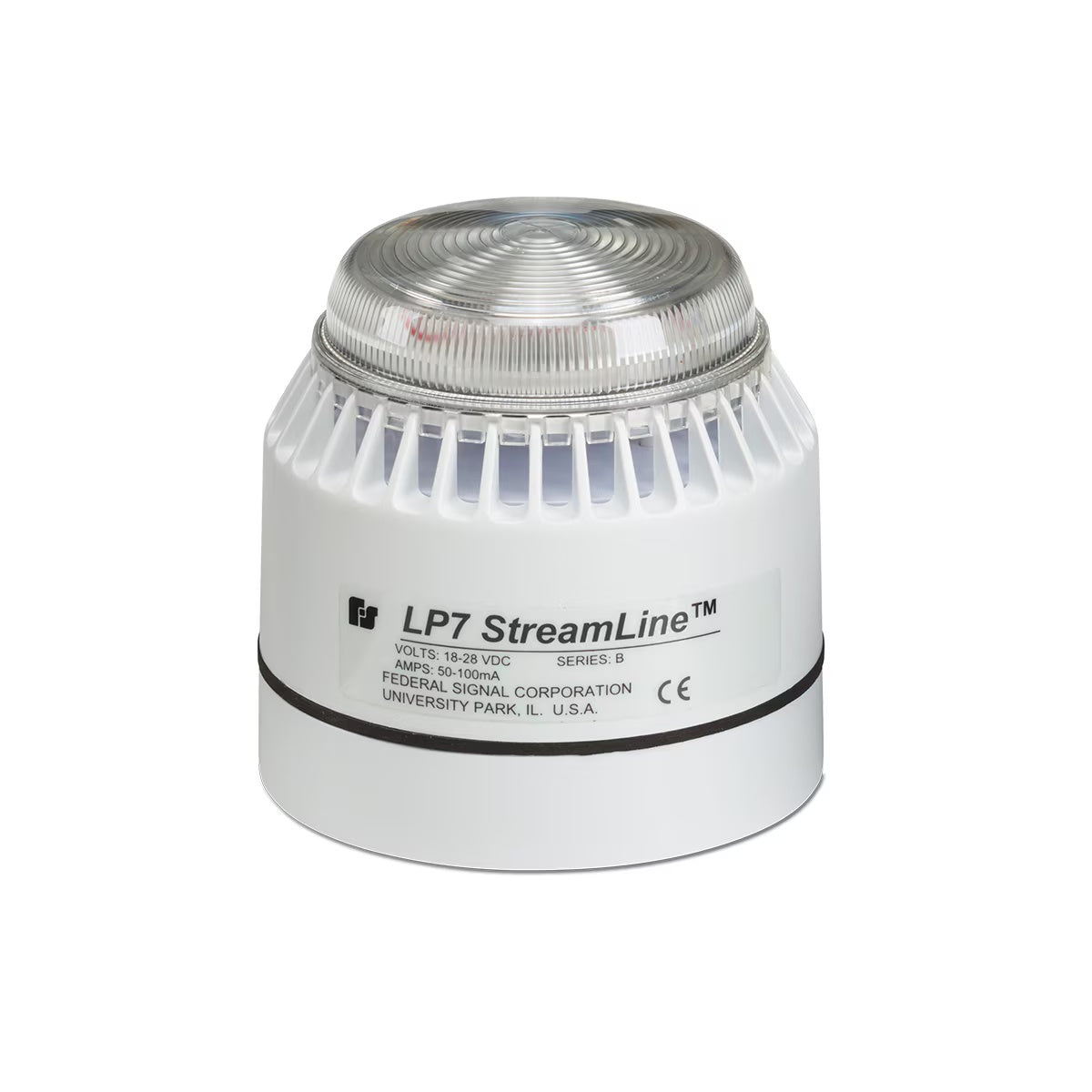

LP7-18-30C StreamLine® Low Profile Combination Sounders/Strobes Clear

LP7 sounder/strobe combines the features of a mini sounder with a fully integrated xenon strobe circuit.

Operating voltage ranges from 18-28VDC with an average of only 68 mA current consumption.

The LP7 has two switchable tone patterns: “Sweeping” and “Continuous”. The LP7 has a range of 82-100 dBa @ 10 feet (92-110 dBa @ 1m), dependent upon tone selected. Volume control is set by DIP switch, which allows for 20 dBa of adjustment.

The LP7 features a bright xenon strobe that produces 0.7 joules of flash energy with a flash frequency of 60 flashes per minute. The beacon will operate jointly with any tone selected.

The Federal Signal Model LP7 sounder/strobe is PLC compatible. It is ideal for wall or panel mount applications where low voltage is required.

Features

• Available in 18–28 Vdc
• Fully integrated xenon strobe circuit
• Four lens colors: Amber, Blue, Clear, and Red
• Heavy duty ABS plastic body
• 82–100 dBA at 10' (92–110 dBA at 1 m)
• IP54 (IP65 with optional deep base)
• CE and UKCA compliant
