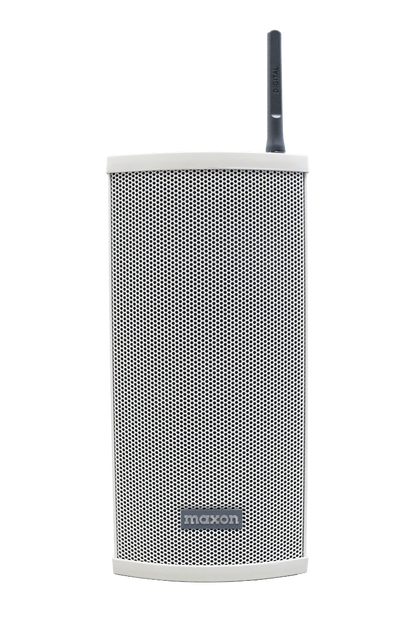

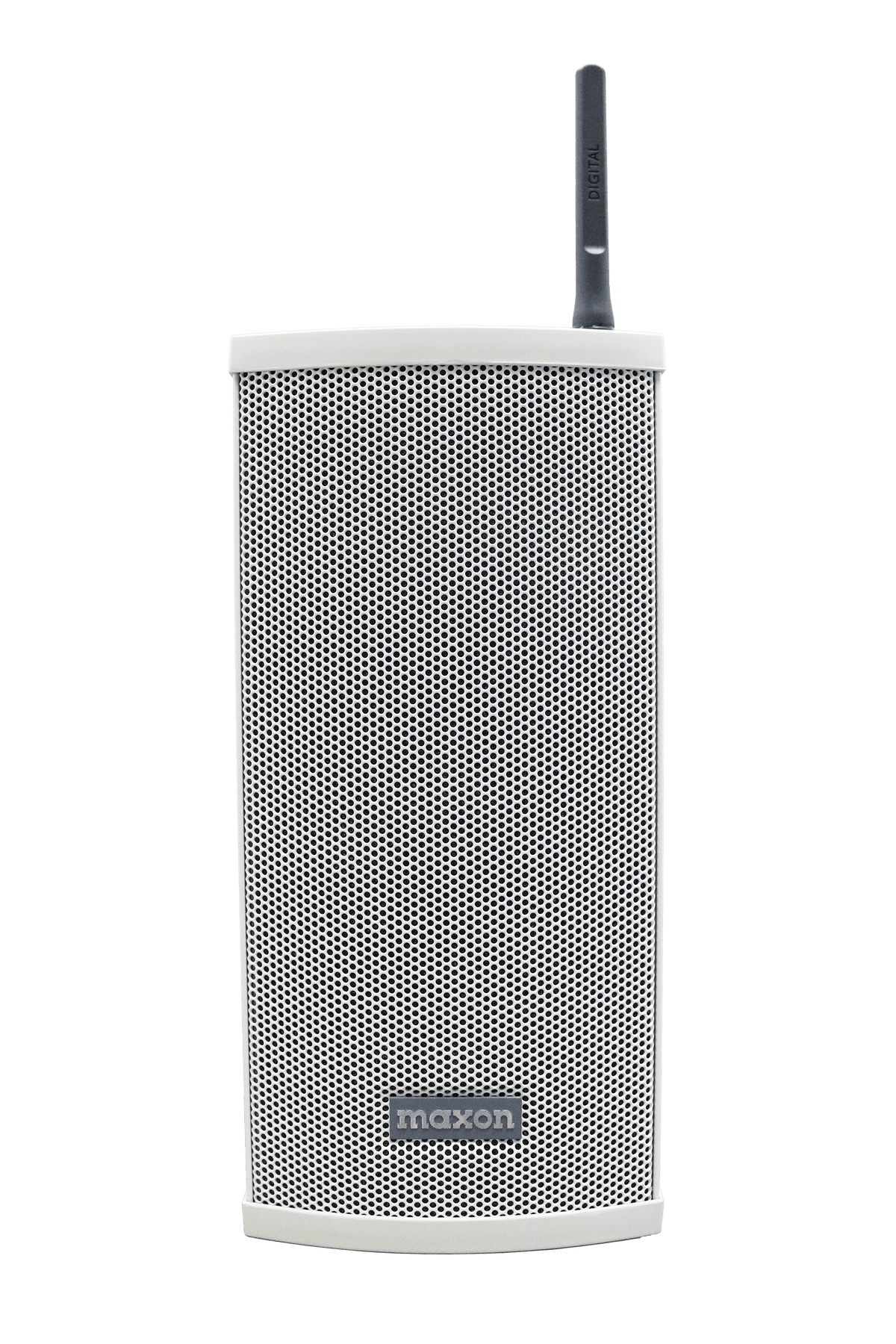

Maxon MDS-1400 (10W) Digital / Analog Wireless Radio Loudspeakers

10 Watt DMR Tier II Digital / Analog Receive-Only Wireless Radio Speaker

Use your portable or mobile UHF two-way radio to make announcements through the speakers

Maxon MDS Series Wireless Radio Speakers

MDS-1400/2400/3400 are wireless, programmable, receive-only radio speakers that can be used with any Analog or DMR Digital (DMR Tier2 TDMA) portable or mobile radio programmed in the UHF band (400-470 MHz) for remote broadcasting announcements. System will allow a user with a portable radio within range to transmit audio from their radio to one speaker, a select number of speakers, or all speakers within a building/area.

The speaker system consists of the speaker and a Bluetooth USB module for your PC that is used to program the speaker. The MDS Series uses a plug-in power supply that converts the AC voltage to 12VDC to power the speakers. MDS-1400/2400 versions can be either wall-mounted or stood on a book shelf. The MDS-3400 is a circular speaker that is hard mounted into a wall or ceiling.

Use wherever wireless broadcasting or announcement loudspeakers are needed but where it may be hard to install wiring for a PA system: Schools, Factories, Bus/Train Terminals, Shopping Centers, Large Stores, Parking Lots, Golf Courses, Amusement Parks, Warehouse Distribution Centers, and Public Address Alerting.

The plug and play design means there is no installation of pulling wires through walls thus reducing costs and saving time.

Features:

Works with any DMR Tier II Digital or Analog UHF radio in 400-470 MHz band

Range 2+ miles (Depending on Tx radio power antenna positioning)

Unlimited # of Speakers Portable Radios can be used together

Single Channel (stores 512 Channels, 32 Channels per Zone)

Programmable DMR / Analog / Mixed Mode Per Channel

Private Call, Group Call (to use only specific loudspeakers), All Call (All Speakers) with DMR radios

CTCSS/DCS can be used in Analog mode to access specific speakers

Broadcast Radio Alerts from Portable Radios for Emergencies

Program Speaker Upgrade firmware using Bluetooth Dongle

Rechargeable Backup Battery (5-Hr Broadcasting, 9-Hr Standby)

Remote volume control using MDP-6424 Portable Radio

UHF "rubber duck" antenna supplied w/speaker set-up

Each speaker comes with basic mounting brackets for wall or ceiling installation

Available in three versions:

MDS-1400 : 10W rectangle speaker, w/removable power supply
MDS-2400 : 20W rectangle speaker, w/removable power supply
MDS-3400 : 10W circle speaker, w/o power supply

Specifications:

Audio Output:10W (MDS-1400/3400)
Channel Spacing:12.5 kHz
Power Supply:110V AC @ 12V DC / 1A (MDS-1400/2400)
Operating Temperature: -22 ° F to +140 ° F,-30 ° C to +60 ° C

Accessories:

ACC-MDSPC: Bluetooth Programming Dongle for MDS Speakers
ACC-MDSSW: Windows Programming Software 12.5 kHz Only
ACC-MDSPS: 110V AC @ 12V DC 1 Amp Power Supply for MDS-1400 or MDS-2400
PS-340012V: 110V AC Power Supply with Wall Plug for MDS-3400
