UHF Data Radio, 400-430 MHz, 5 / 1 W, 16 Channels (Dip-Switch), Time-Out-Timer, 9-18V DC Operating Voltage, DE-9 Pin Male Connector, LED Status Indicator
BNC-Female antenna connector, POCSAG capable, PC programmable
Radio only, additional accessories sold separately

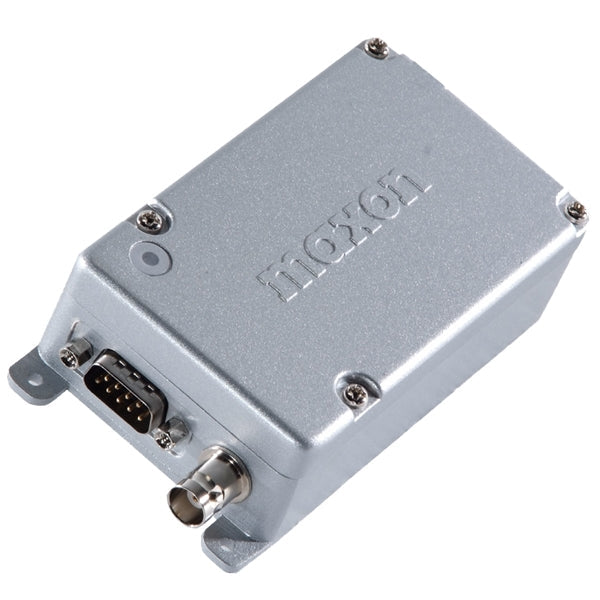

Maxon SD-125EL U1 UHF Data Radio
The Maxon (TecNet) SD-125EL Series of data/telemetry radios are designed to meet the needs for a variety of wireless applications in a cost effective package.
The modules incorporate the most requested mechanical footprint and connectors. Adjustable transmit power settings from one to five watts provides the power needed on any job and the LED indicator gives instant on-sight status of the radios operation. The die cast aluminum cabinet/lid provides resistance to RF interference; and gives exceptional environmental durability in the most extreme conditions. The SD-125EL can also be configured with POCSAG for paging applications.
Whether implementing a new system or installing into an existing system, the Maxon America family of data telemetry radios have been the choice of OEM and end-users worldwide for over 25 years.
Available as:
SD-125EL V2148-174 MHz VHF data radio
SD-125EL U1400-430 MHz UHF data radio
SD-125EL U2440-470 MHz UHF data radio
Features:
- LED status indicator (SD-125EL only)
- 5 / 1 Watt power output
- VHF (148-174 MHz), UHF (400-430 MHz), UHF (440-470 MHz)
- 16 channels (Dip Switch Select)
- DE-9 male connector
- 12.5 / 25 kHz channel spacing
- TX Time-Out-Timer
- Carrier detect
- Busy channel lockout
- BNC female antenna connector
- POCSAG capable
- PC programmable
- FCC / IC Type accepted
Featured Applications:
Water/Waste Treatment Plants, Oil and Gas Field, SCADA Security/Alarm System, Gate Systems, Remote Controls, Commercial Sign Control, Automatic Vehicle Location, Murphy/Kill Switches, Weather Monitoring, Irrigation Systems, Emergency Call Boxes, Low Power Repeater.
Accessories:
ANTENNASTB-150BN VHF (148-174 MHz) 6 Antenna, BNC
TB-450BN UHF (400-512 MHz) 6 Uncut Antenna, BNC
G8BI Mag Mount Base, 12 coax, BNC Connector; Requires QW152 or QW450
G8BI20 Mag Mount Base, 20 coax, BNC Connector; Requires QW152 or QW450 QW152 18 VHF Wave
Antenna (NMO Type): Use with G8BI or G8BI20
QW450 UHF Wave Antenna (NMO Type): Use with G8BI or G8BI20
HEAT SINK
ACC-HSNF Aluminum Black Anodized Pin Style Flat Mount
PROGRAMMING
ACC-900E/N Programming Software
ACC-2125 Programming Cable (Serial)
TAC-101D Squelch Control Cable
