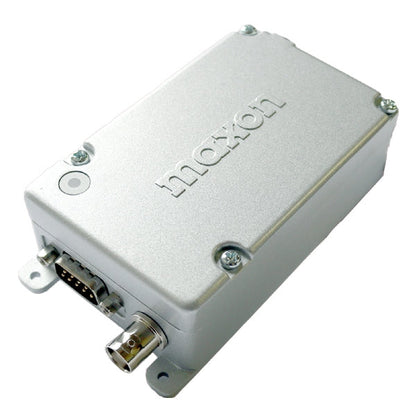

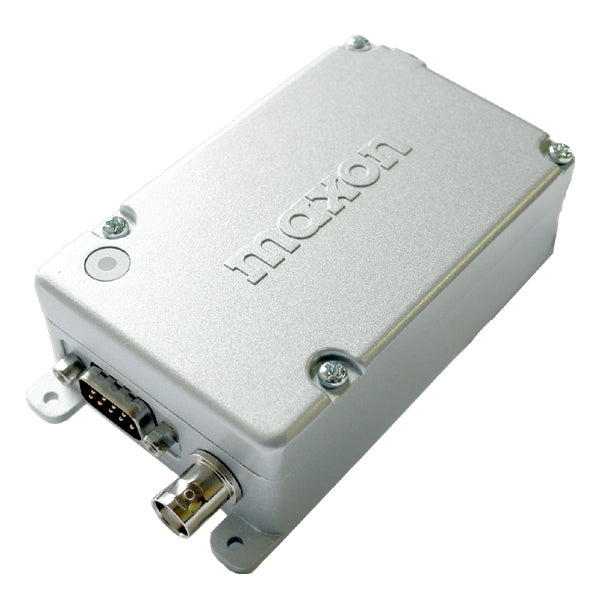

Maxon SD-171EX VHF Data Radio

MAXON SD-171EX VHF Data Radio, 142-174 MHz, 5 / 1 W, 16 Channels (Dip-Switch), Time-Out-Timer, CTCSS / DCS, DE-9 Pin Male Connector, LED Status Indicator

BNC-Female antenna connector, POCSAG protocol optional, PC programmable

Maxon SD-171EX VHF Data Radio

The Maxon (TecNet) SD-170EX Series of radios are durable, reliable and designed to meet the needs for a variety of wireless applications in VHF or UHF frequencies.

The modules incorporate the most requested mechanical footprint, DE-9 male connector, and BNC antenna connection. Adjustable transmit power settings provide the power needed on any job, and the tri-color LED indicator gives instant on-sight status of the radios operation. The die cast aluminum cabinet/lid provides resistance to RF interference; and gives exceptional environmental durability in the most extreme conditions. The SD-170EX can also be configured with POCSAG for paging applications.

Whether implementing a new system or installing into an existing system, the Maxon America family of data telemetry radios have been the choice of OEM and end-users worldwide for over 25 years.

SD-171EX142-174 MHz VHF data radio

SD-174EX450-490 MHz UHF data radio

Features

• 5 / 1 Watt power output
• VHF (142-174 MHz), UHF (450-490 MHz)
• 16 channels (Dip Switch Select)
• LED status indicator
• CTCSS / DCSS encode and decode
• 12.5 / 25 kHz channel spacing
• TX Time-Out-Timer
• Carrier detect
• Busy channel lockout
• BNC female antenna connector
• POCSAG protocol optional
• Squelch - software aligned
