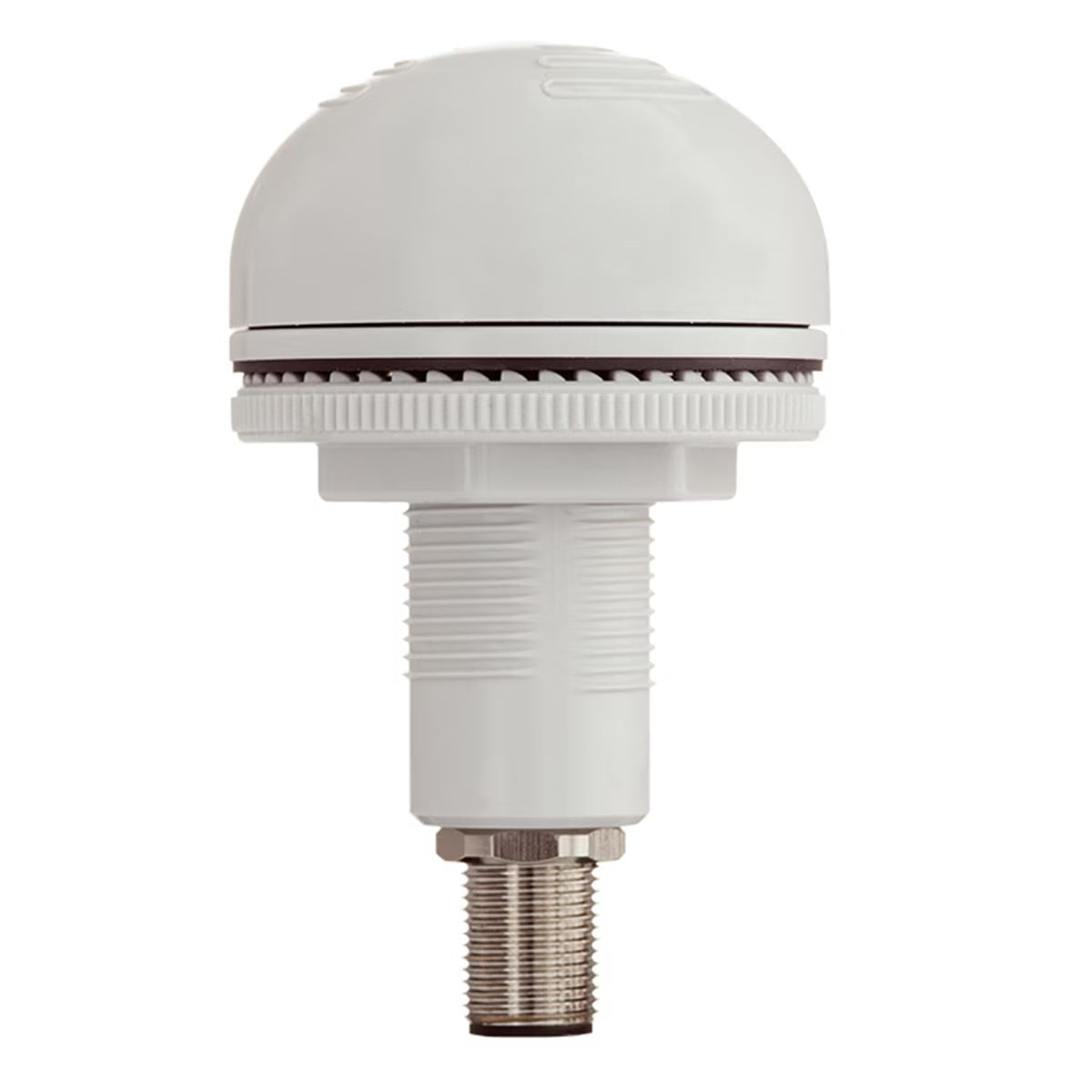

PM22A-012-024-Q Panel Mount 22mm Electronic Sounders

Model PM22A is a multifunctional piezoelectric sounder and offers seven different tones, controllable via independent electric contacts. It is available in two electrical connection options: M12 cable gland with 12" (300 mm) leads or M12 4-pin Quick Connect (-Q models).

The PM22 Series is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust, and other atmospheric elements.

Features

• Available in 12-24VAC/DC
• 7 tones include: steady, slow intermittent, fast intermittent, 2x intermittent, 3x intermittent, telegraph, and random
• Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
• Type 3R, IP65 enclosure
• CE Certified
• UL and cUL Listed
