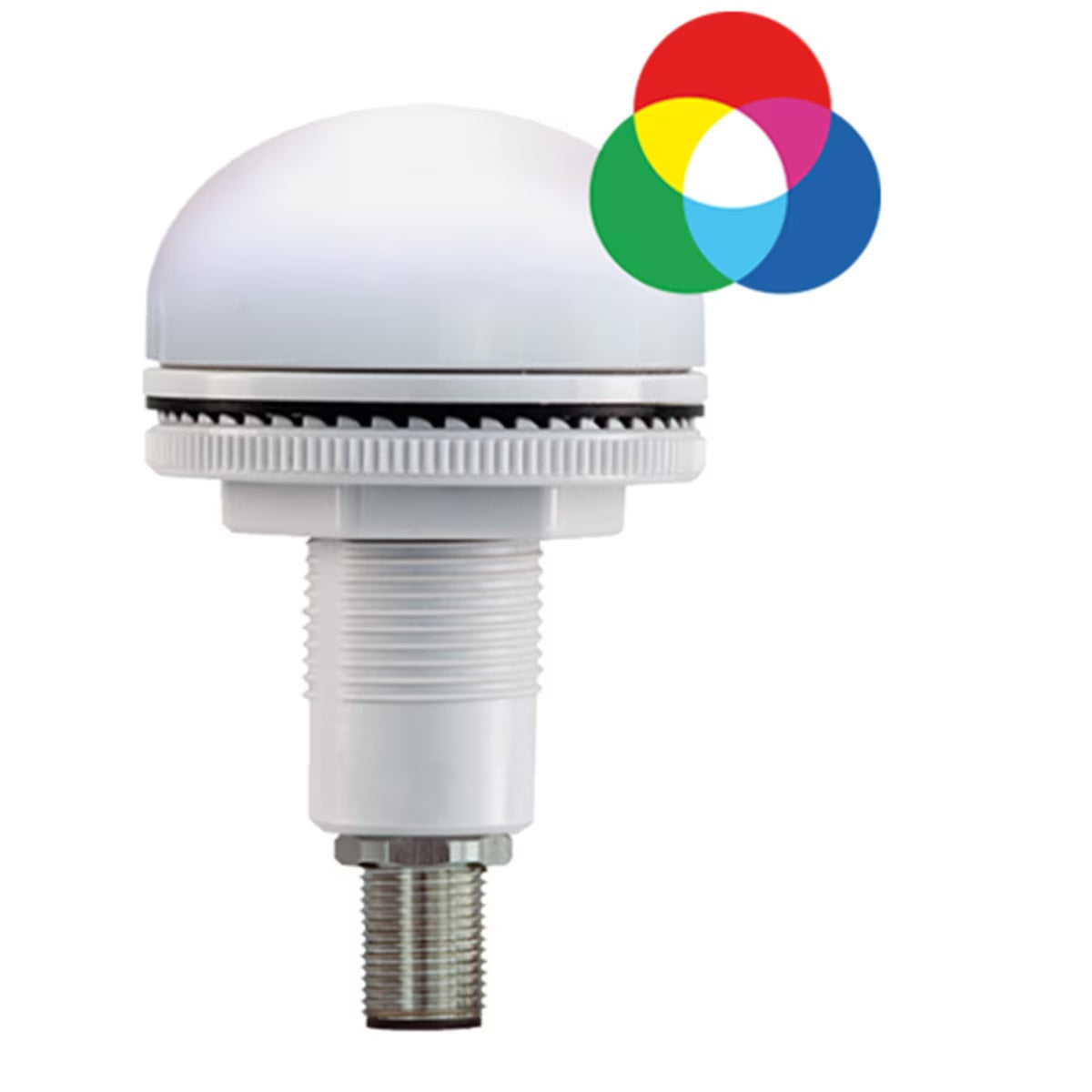

PM22L-024RGB-Q RGB Panel Mount 22mm Multicolor LEDs Multicolor

Model PM22L RGB is a steady, multicolor panel mount LED that offers seven color options within the same unit. It is available in 24VDC and two electrical connection options: M12 Cable Gland with 12" (300 mm) leads or M12 4-Pin Quick Connect (-Q models).

The PM22 Series is panel mounted through a 22 mm/0.87" hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust and other atmospheric elements.

Features

• Available in 24 Vdc
• Multicolor LED produces Blue, Clear, Cyan, Green, Magenta, Red and Yellow
• Steady light effect
• Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
• 50,000-hour LED
• Opaque, polycarbonate lens
• Type 4X, IP66 enclosure
• IP69K compliant
• CE and UKCA compliant
• UL and cUL Listed
