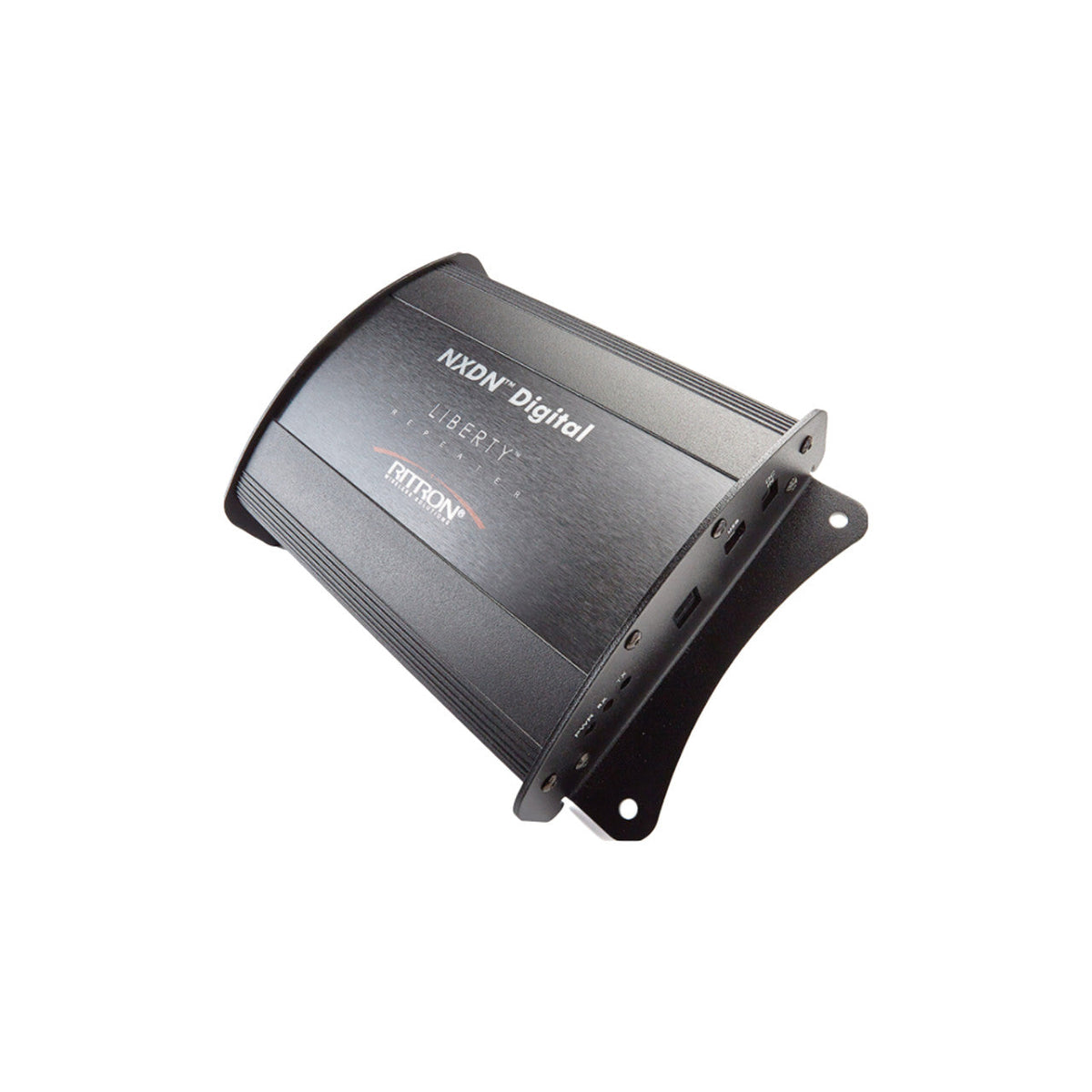

Ritron RLR-465NX UHF 450-470MHz NXDN Digital 6.25kHz 10 Watt 1 Channel Liberty Repeater
The JobCom Portable radio is a 2-way radio transceiver used to communicate directly with base stations, mobiles, callboxes, and other portable radios or through radio repeaters when programmed with Ritron PC Programming Software.
Ideal For: Schools, Shopping Malls, Hotels, Hospitals, Manufacturing Plants, Golf Courses, Amusement Parks, or at Special Events.
Features
UHF, NXDN Digital Technology, Conventional
Frequency Range: 450-470 MHz @ 6.25 kHz Very Narrowband
Full Duplex Radio and Built-in, 4 Cavity, Notch-Type Duplexer w/ ‚“N‚ Type Connector
Capable of up to 10 groups of RAN.
Power ON and TX Transmit Indicator LED‚
Frequency Stability: +/- 1 ppm (-30 C to +50 C)
110VAC to 13.8 VDC power supply
12VDC back-up capable (At less than 13.8VDC output limited to 8W)
Compact size 2.125‚ H X 8.0‚ W X 5.75‚ D
Lightweight: 3.5 lbs
PC Programmable ‚ Duplexer and RF board requires manual tuning
