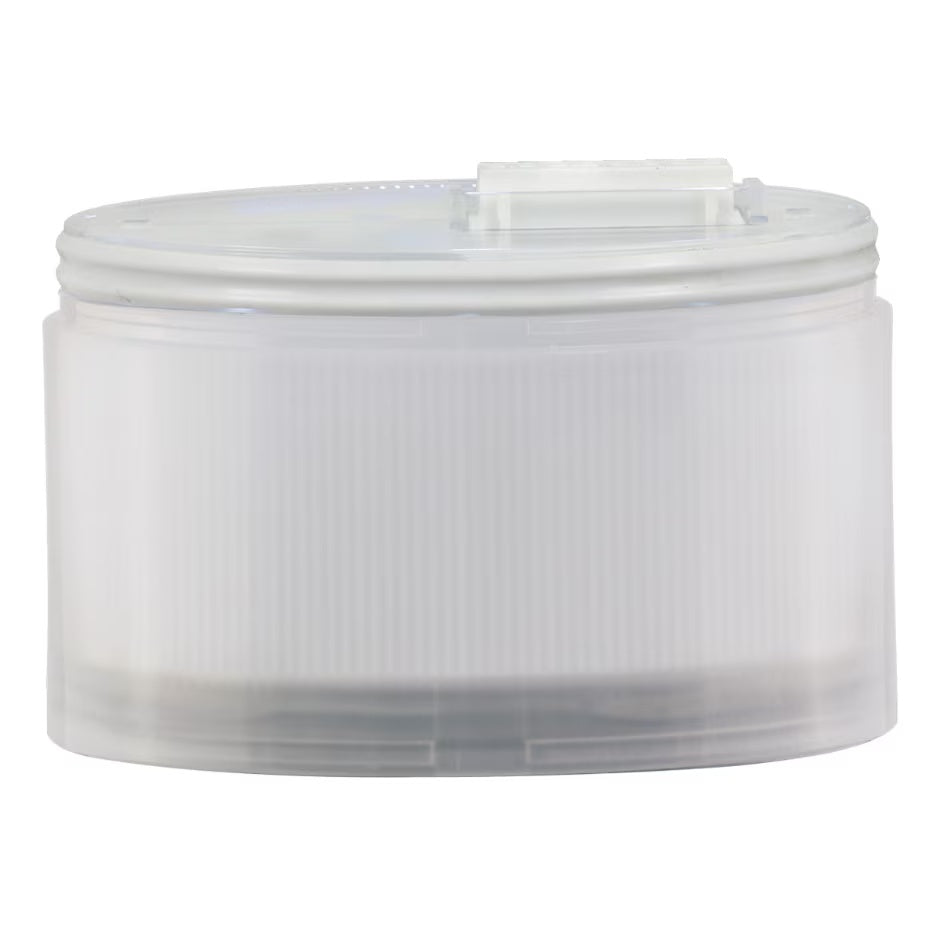

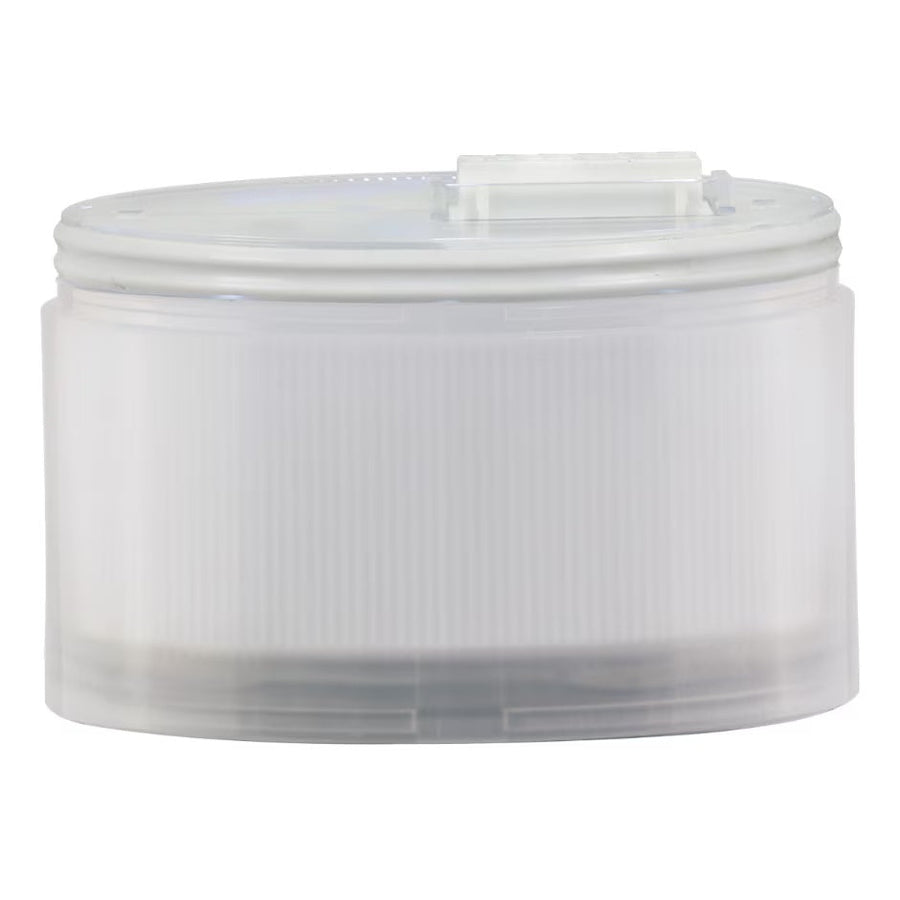

RSL-LM-RGB-O Radiant Light Modules Multicolor

The RSL Radiant series is a high-performance line of modular LED stack lights engineered to meet a wide range of industrial signaling requirements. Featuring single-color LED modules available in steady burn light, high output steady burn light, or multi-pattern flashing with color fresnel, clear fresnel, or opaque optical lenses. Multi-color LED modules are available with fresnel or opaque lens. Select the steady or flashing module for pattern required with standard wiring module or use steady LED modules with multi-pattern wiring modules. Designed for both standard and advanced applications, the RSL Radiant offers a reliable and efficient solution for status indication and attention-critical environments.

Features

• Modular design allows up to (7) light modules: (6) light modules & (1) sound module (one channel) or (5) light modules & (1) sound module (two channels)
• Compatible with 12-24 Vac/dc or 120-240 Vac*
• Single-color modules are available in Amber, Blue, Clear, Green, and Red
• Multicolor modules feature seven colors (Amber, Blue, Clear, Cyan, Green, Magenta, and Red)
• PLC compatible
• Indoor/outdoor use
• Type 4X, IP66 enclosure when installed with both gaskets included with each module
• IP69K compliant when installed with both gaskets included on each module
• CE and UKCA compliant
• UL and cUL Listed

* Voltage dependent on selected wiring module - RSL-LMS is 24 Vac/dc or 120-240 Vac only
