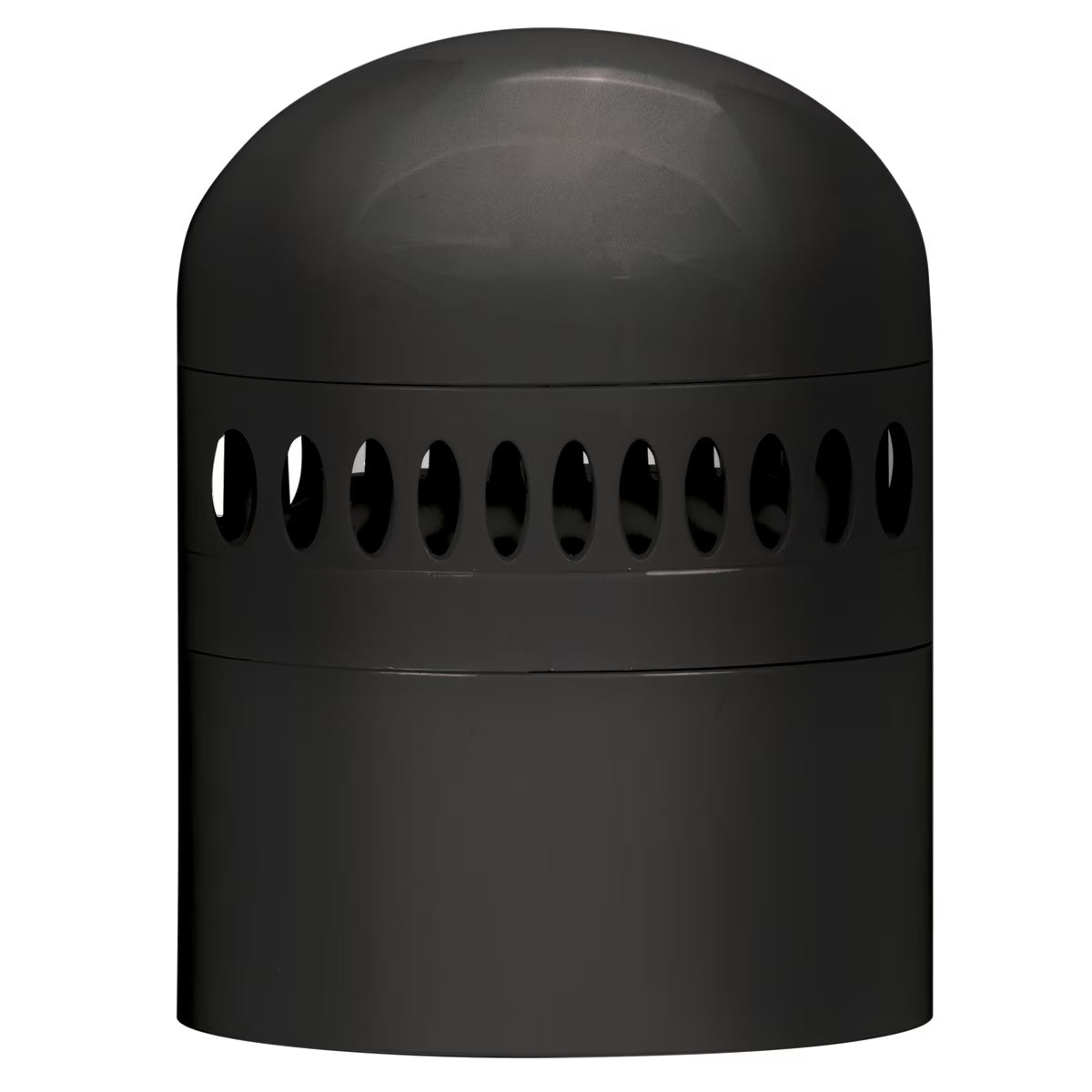

RSL-SMM-BK Radiant Sound Modules Black

Radiant sound modules add an audible alert to a visual stack light application. Depending on the application need, there are two possible solutions:

RSL-SM contains 2 tones (intermittent and continuous) over 2 channels. It allows for use of both channels, by connecting 2 of the 7 available contacts of the wiring module.

RSL-SMM contains 16 tones (mixed types) over 2 channels. It allows for use of both channels, by connecting 2 of the 7 available contacts of the wiring module. For each channel it is possible to select the sound via DIP switch prior to assembling the unit.

Features

• Modular design offers up to (7) light modules: (6) light modules & (1) sound module (one channel) or (5) light modules & (1) sound module (two channels)
• RSL-SM contains two tones, RSL-SMM contains 16 tones
• Volume control in model RSL-SMM
• Compatible with 12-24 Vac/dc or 120-240 Vac*
• Indoor/outdoor use
• PLC compatible
• Type 4X, IP66 enclosure when installed with both gaskets included on each module
• IP69K compliant when installed with both gaskets included with each module
• CE Certified
• UL and cUL Listed

*Voltage dependent on selected wiring module
