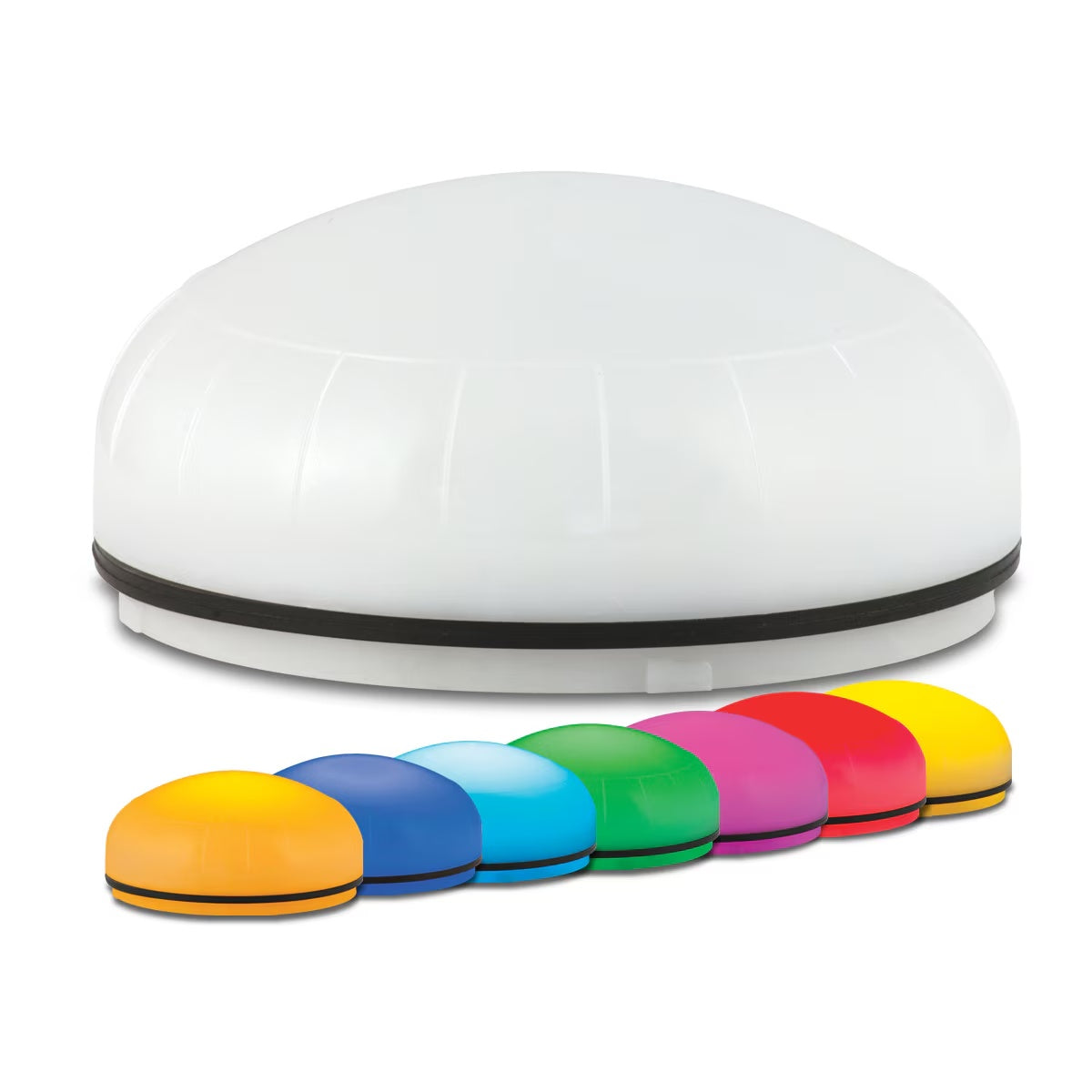

SLM1400 and SLM1450 StreamLine® Modular Multicolor Multifunctional Low Profile Beacons

SLM1400 and SLM1450 models are multicolor multifunctional LED beacons engineered for pedestrians, docks, and industrial traffic control. Developed with a multichannel technology, these models allow three separate levels of alarm controllable via wiring selection. For each channel, two integrated buttons allow the user to select a different color (amber, blue, clear, cyan, green, magenta, red, yellow), flash pattern (steady, 1x, 3x, 5x, random flash) and light output brightness (33%, 66%, 100%) for a truly custom application.

SLM1400 models include an opaque lens for signaling in close proximities. SLM1450 includes a fresnel lens for farther distance signaling. The body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.

* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones.

Features

• Compatible with 12-24VAC/DC or 120-240VAC*
• PLC compatible with PNP or NPN connections (Dock base is only NPN)
• Choice of eight colors, five light effects, and three light output levels per channel
• 100,000-hour LED
• Seven mounting base options
• Type 4X, IP66 enclosure
• IP69K** compliant
• CE and UKCA compliant
• UL and cUL Listed

* Voltage is independent on selected base (sold separately)

** IP69K with select bases SLMBS, SLMBD, SLMBP and included SLM-RR accessory
