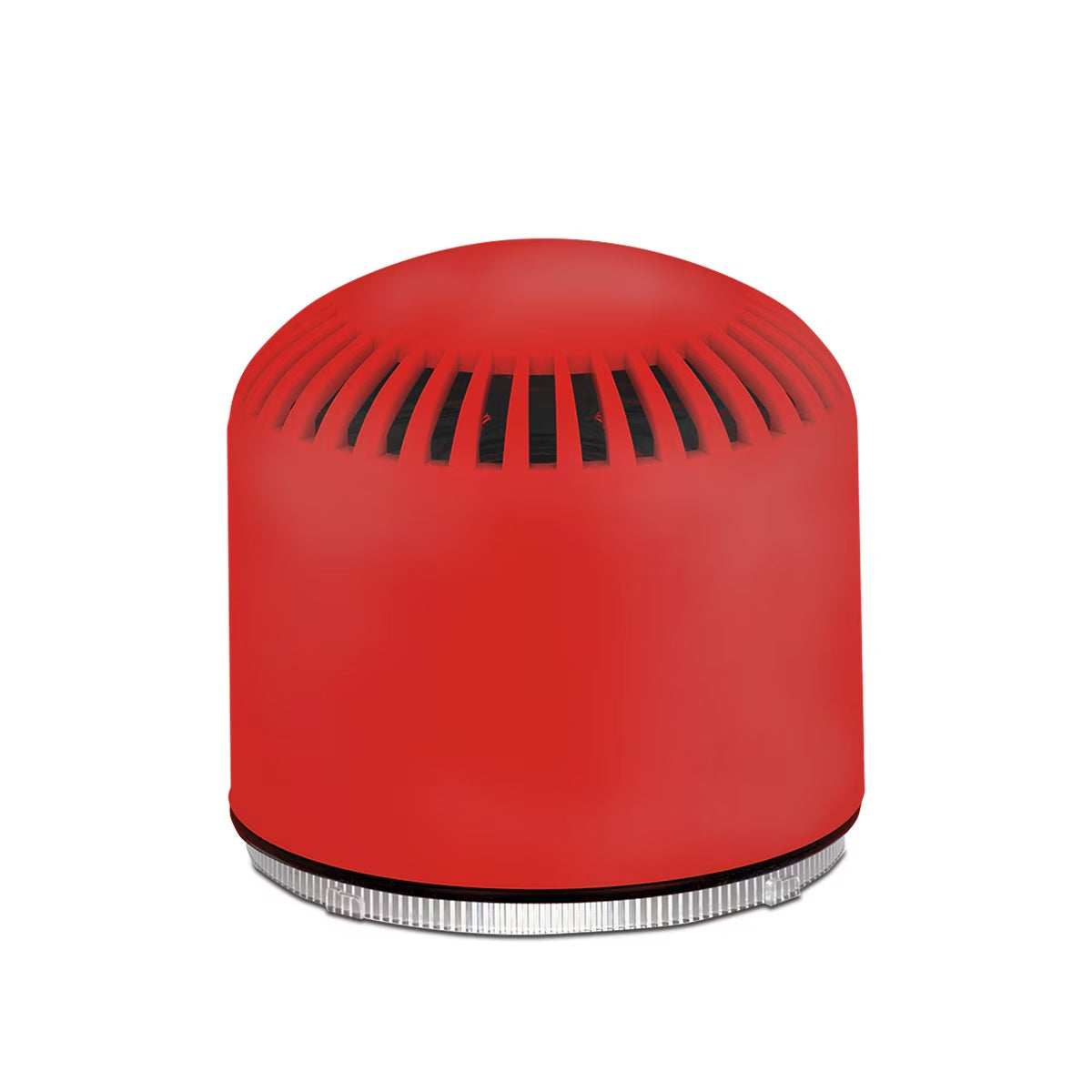

SLM800R StreamLine® Modular High-Output Electronic Sounders Red

Model slm800 is a high-output multifunctional electronic sounder developed with a multiple input technology that can produce two different tones (one per channel), controllable via wiring selection.

There are 64 unique tones to select from across two switches (32 tones per switch). The volume of the tone is adjustable between 65-115 dBa @ 1m at three output levels (high, medium and low) through an integrated button. Model slm800 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.

* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting slm Documents or Rev A Tones.

Features

• Compatible with 12-24VAC/DC or 120-240VAC*
• PLC compatible with PNP and NPN connections
• Choice of 64 selectable tones (32 per input selectable via DIP switch)
• Produces two tones at three adjustable tone levels
• Adjustable volume between 89 dBa to 105 dBa @ 10' (99-115 dBa @ 1m)
• Five mounting base options
• Type 3R, IP65 enclosure
• CE Certified
• UL and cUL Listed

* Voltage is dependent on selected base (sold separately)
